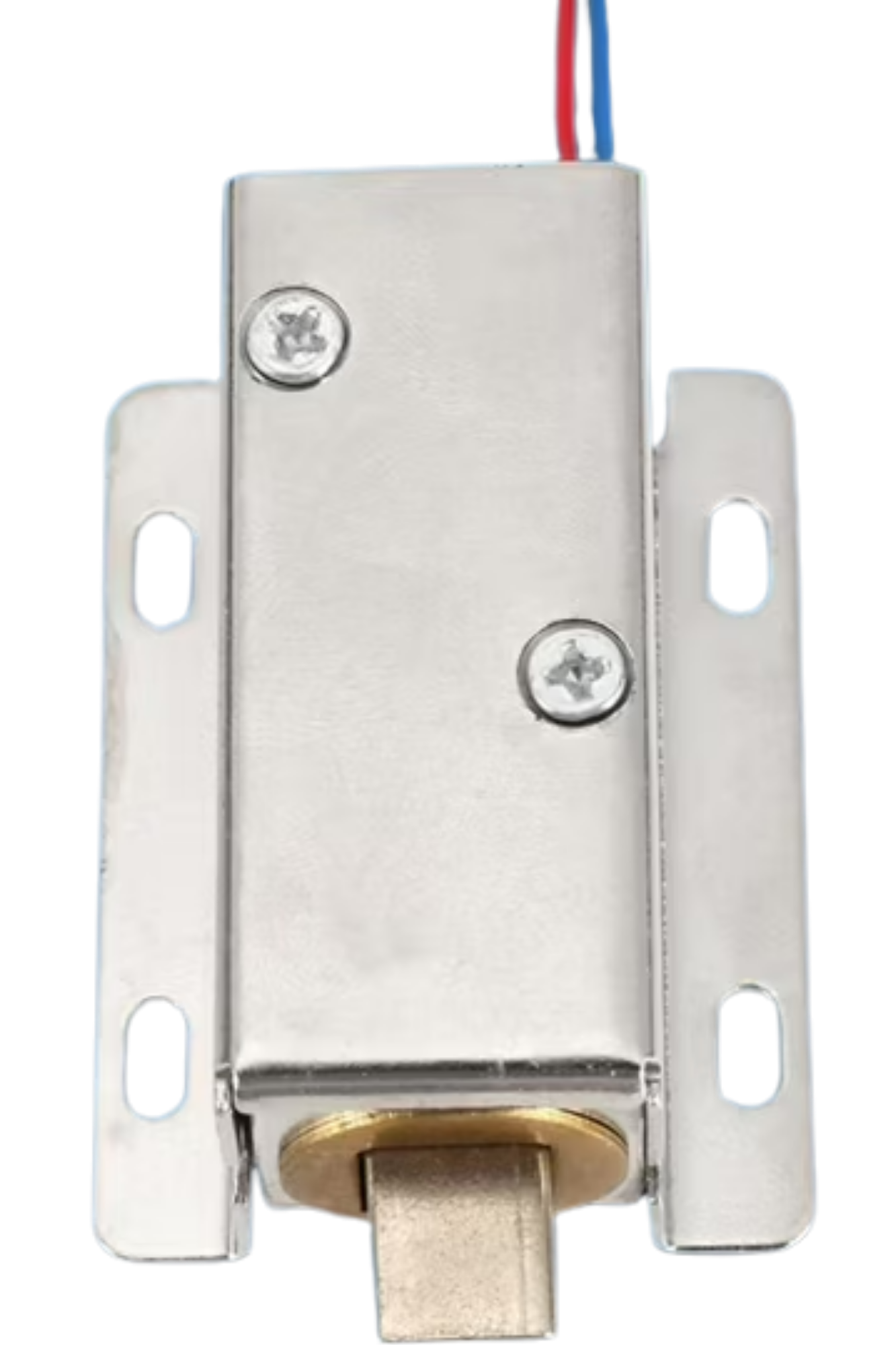

Image of DC Selenoid Lock Door
Cirkit Designer LogoDesign with DC Selenoid Lock Door in Cirkit Designer

Introduction

The DC Solenoid Lock Door (Manufacturer: Arduino Uno, Part ID: Lock Door) is an electromechanical locking device designed for access control systems. It operates using a solenoid mechanism that, when powered by direct current (DC), activates to lock or unlock a door. This component is widely used in security systems, smart home applications, vending machines, and other automated locking solutions. Its compact design and reliable operation make it a popular choice for projects requiring controlled access.

Explore Projects Built with DC Selenoid Lock Door

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO-Based Secure Access Control System with Keypad and Solenoid Lock
Image of GROUP 1 ROBOTICS/RESEARCH: A project utilizing DC Selenoid Lock Door in a practical application
This circuit is a secure access control system for a residential door lock, utilizing an Arduino UNO to interface with a 4x4 keypad, a 16x2 I2C LCD, and a 12V solenoid lock via an L298N motor driver. The system allows users to enter a password on the keypad, which is displayed on the LCD, and unlocks the solenoid lock if the correct password is entered.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled ESP32-Based Smart Lock with RFID and OLED Display
Image of SYTEMATIC ADASDA ELECTRONIC: A project utilizing DC Selenoid Lock Door in a practical application
This circuit is designed to control a 12V solenoid lock using an ESP32 microcontroller, which is connected to a Wi-Fi network and hosts a web server. The ESP32 can receive commands to unlock the door for a specified duration via a web interface. Additional components include an OLED display and an RFID reader for user interaction, a Darlington transistor to drive the high-current solenoid, and a diode for back EMF protection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Lock System with Keypad and Servo Motor
Image of embedded: A project utilizing DC Selenoid Lock Door in a practical application
This circuit is a password-protected door lock system using an Arduino UNO. It features a 4x4 keypad for password input, a 16x2 I2C LCD for displaying messages, a micro servo motor to control the lock mechanism, and LEDs and a buzzer for status indication. The system verifies the entered password and rotates the servo to unlock the door if the password is correct.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Door Lock System with RFID and Keypad
Image of cn_endsem: A project utilizing DC Selenoid Lock Door in a practical application
This circuit is a door lock system controlled by an Arduino UNO, featuring an RFID reader, a keypad, and a servo motor to lock/unlock the door. It includes LEDs for status indication, a piezo buzzer for alerts, and an LCD screen for user interaction. The system detects motion and controls a fan and light based on the presence of a person.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC Selenoid Lock Door

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of GROUP 1 ROBOTICS/RESEARCH: A project utilizing DC Selenoid Lock Door in a practical application
Arduino UNO-Based Secure Access Control System with Keypad and Solenoid Lock
This circuit is a secure access control system for a residential door lock, utilizing an Arduino UNO to interface with a 4x4 keypad, a 16x2 I2C LCD, and a 12V solenoid lock via an L298N motor driver. The system allows users to enter a password on the keypad, which is displayed on the LCD, and unlocks the solenoid lock if the correct password is entered.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SYTEMATIC ADASDA ELECTRONIC: A project utilizing DC Selenoid Lock Door in a practical application
Wi-Fi Controlled ESP32-Based Smart Lock with RFID and OLED Display
This circuit is designed to control a 12V solenoid lock using an ESP32 microcontroller, which is connected to a Wi-Fi network and hosts a web server. The ESP32 can receive commands to unlock the door for a specified duration via a web interface. Additional components include an OLED display and an RFID reader for user interaction, a Darlington transistor to drive the high-current solenoid, and a diode for back EMF protection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of embedded: A project utilizing DC Selenoid Lock Door in a practical application
Arduino UNO-Based Smart Lock System with Keypad and Servo Motor
This circuit is a password-protected door lock system using an Arduino UNO. It features a 4x4 keypad for password input, a 16x2 I2C LCD for displaying messages, a micro servo motor to control the lock mechanism, and LEDs and a buzzer for status indication. The system verifies the entered password and rotates the servo to unlock the door if the password is correct.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of cn_endsem: A project utilizing DC Selenoid Lock Door in a practical application
Arduino UNO-Based Smart Door Lock System with RFID and Keypad
This circuit is a door lock system controlled by an Arduino UNO, featuring an RFID reader, a keypad, and a servo motor to lock/unlock the door. It includes LEDs for status indication, a piezo buzzer for alerts, and an LCD screen for user interaction. The system detects motion and controls a fan and light based on the presence of a person.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Smart home security systems
  • Automated vending machines
  • Access control systems in offices or buildings
  • Locking mechanisms for cabinets or lockers
  • DIY electronics and Arduino-based projects

Technical Specifications

Key Technical Details:

Parameter Value
Operating Voltage 12V DC
Operating Current 0.8A (800mA)
Holding Force 1.2 kg
Lock Type Fail-secure (remains locked when power is off)
Material Metal (housing and locking mechanism)
Dimensions 54mm x 42mm x 28mm
Weight 120g
Wire Length 25cm
Operating Temperature -10°C to 55°C

Pin Configuration and Descriptions:

The DC Solenoid Lock Door typically has two wires for operation:

Wire Color Function Description
Red Positive (+) Connect to the positive terminal of the power supply.
Black Negative (-) Connect to the ground (GND) of the power supply.

Usage Instructions

How to Use the Component in a Circuit:

  1. Power Supply: Ensure you have a 12V DC power supply capable of providing at least 800mA of current.
  2. Connection:
    • Connect the red wire of the solenoid lock to the positive terminal of the power supply.
    • Connect the black wire to the ground (GND) terminal.
  3. Control with Arduino:
    • Use an NPN transistor (e.g., 2N2222) or an N-channel MOSFET (e.g., IRF540N) to control the solenoid lock with an Arduino.
    • Add a flyback diode (e.g., 1N4007) across the solenoid terminals to protect the circuit from voltage spikes when the solenoid is turned off.
  4. Code Integration:
    • Use a digital output pin on the Arduino to control the transistor or MOSFET, allowing the solenoid to be activated programmatically.

Important Considerations:

  • Power Requirements: Ensure the power supply matches the voltage and current requirements of the solenoid lock.
  • Heat Dissipation: Prolonged activation of the solenoid may cause it to heat up. Avoid continuous operation for extended periods.
  • Flyback Diode: Always include a flyback diode to prevent damage to the control circuit.
  • Fail-Secure Design: This solenoid lock remains locked when power is off. Ensure this behavior aligns with your application needs.

Example Arduino Code:

Below is an example of how to control the DC Solenoid Lock Door using an Arduino UNO:

// Define the pin connected to the transistor or MOSFET controlling the solenoid
const int solenoidPin = 7;

void setup() {
  // Set the solenoid pin as an output
  pinMode(solenoidPin, OUTPUT);
}

void loop() {
  // Activate the solenoid lock (unlock the door)
  digitalWrite(solenoidPin, HIGH);
  delay(5000); // Keep the lock open for 5 seconds

  // Deactivate the solenoid lock (lock the door)
  digitalWrite(solenoidPin, LOW);
  delay(5000); // Keep the door locked for 5 seconds
}

Note: Ensure the transistor or MOSFET is properly connected to the solenoid and the Arduino. Use a resistor (e.g., 1kΩ) between the Arduino pin and the transistor base/gate to limit current.

Troubleshooting and FAQs

Common Issues and Solutions:

  1. The solenoid lock does not activate:

    • Check the power supply voltage and current. Ensure it matches the solenoid's requirements.
    • Verify the connections, especially the polarity of the wires.
    • Ensure the control circuit (transistor or MOSFET) is functioning correctly.
  2. The solenoid lock heats up excessively:

    • Avoid keeping the solenoid activated for long durations.
    • Use a heat sink or cooling mechanism if prolonged activation is necessary.
  3. The Arduino cannot control the solenoid:

    • Ensure the transistor or MOSFET is correctly connected and compatible with the solenoid's current requirements.
    • Check the flyback diode placement to ensure it is protecting the circuit.
  4. The solenoid lock remains locked even when powered:

    • Verify the power supply voltage. A lower voltage may prevent the solenoid from activating.
    • Inspect the solenoid mechanism for physical obstructions or damage.

FAQs:

Q: Can I use a 5V power supply instead of 12V?
A: No, the solenoid lock is designed to operate at 12V DC. Using a lower voltage may result in insufficient activation.

Q: Is the solenoid lock waterproof?
A: No, the solenoid lock is not waterproof. Avoid exposing it to moisture or water.

Q: Can I use this solenoid lock with a battery?
A: Yes, you can use a 12V battery with sufficient current capacity (e.g., 800mAh or higher) to power the solenoid lock.

Q: What happens if I reverse the polarity of the wires?
A: Reversing the polarity may damage the solenoid lock. Always connect the red wire to the positive terminal and the black wire to ground.

By following this documentation, you can effectively integrate the DC Solenoid Lock Door into your projects and troubleshoot common issues with ease.
