How to Use lcd: Examples, Pinouts, and Specs

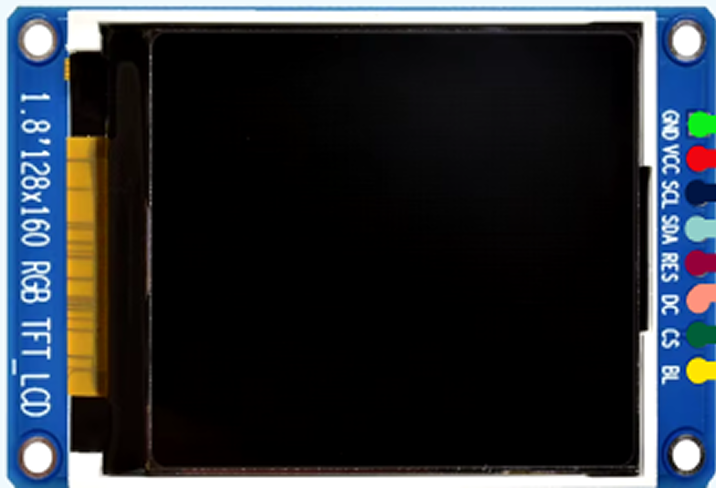

A Liquid Crystal Display (LCD) is a flat-panel display technology that uses liquid crystals to modulate light. Manufactured by 2, this component is widely used in various electronic applications due to its low power consumption, compact size, and ability to produce sharp and clear images. LCDs are commonly found in devices such as televisions, computer monitors, mobile devices, and embedded systems.

• Displaying text, numbers, and graphics in embedded systems
• User interfaces for appliances and industrial equipment
• Digital clocks, calculators, and measurement instruments
• Portable devices like MP3 players and handheld gaming consoles

Below are the key technical details for a standard 16x2 LCD module, which is one of the most commonly used LCD types in electronics projects:

• Display Type: 16x2 (16 characters per row, 2 rows)
• Operating Voltage: 4.7V to 5.3V
• Current Consumption: 1mA (without backlight), 15mA (with backlight)
• Character Size: 5x8 dot matrix
• Interface: Parallel (4-bit or 8-bit mode)
• Backlight: LED (optional, typically white or green)

The LCD module typically has 16 pins. Below is the pinout and description:

1. Power Supply: Connect the VSS pin to ground and the VDD pin to a 5V power source.
2. Contrast Adjustment: Connect the V0 pin to the middle terminal of a 10kΩ potentiometer. Connect the other two terminals of the potentiometer to VDD and ground.
3. Control Pins: Connect the RS, RW, and E pins to digital output pins of a microcontroller (e.g., Arduino).
4. Data Pins: For 4-bit mode, connect D4 to D7 to the microcontroller. For 8-bit mode, connect D0 to D7.
5. Backlight: Connect LED+ to 5V through a 220Ω resistor and LED- to ground.

Below is an example of how to connect and program a 16x2 LCD with an Arduino UNO in 4-bit mode:

• RS: Connect to Arduino digital pin 7
• E: Connect to Arduino digital pin 8
• D4-D7: Connect to Arduino digital pins 9, 10, 11, and 12
• V0: Connect to the middle terminal of a 10kΩ potentiometer
• LED+: Connect to 5V through a 220Ω resistor
• LED-: Connect to ground

#include <LiquidCrystal.h>

// Initialize the library with the numbers of the interface pins
LiquidCrystal lcd(7, 8, 9, 10, 11, 12);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(16, 2);

  // Print a message to the LCD
  lcd.print("Hello, World!");
}

void loop() {
  // Set the cursor to column 0, line 1 (second row)
  lcd.setCursor(0, 1);

  // Print the current time in seconds since the Arduino started
  lcd.print(millis() / 1000);
}

• Always use a current-limiting resistor (e.g., 220Ω) for the backlight to prevent damage.
• Use a potentiometer to adjust the contrast for optimal visibility.
• Avoid leaving the RW pin floating; connect it to ground if not used.
• For longer cables, consider using pull-up resistors on the data lines to reduce noise.

1. No Display on the LCD:

   • Check the power supply connections (VSS and VDD).
   • Adjust the contrast using the potentiometer connected to V0.
   • Ensure the backlight is connected properly.

2. Garbled or Incorrect Characters:

   • Verify the data pin connections (D4-D7 or D0-D7).
   • Ensure the RS, RW, and E pins are connected to the correct microcontroller pins.
   • Check the code for proper initialization of the LCD.

3. Backlight Not Working:

   • Ensure the LED+ pin is connected to 5V through a resistor.
   • Verify the LED- pin is connected to ground.

4. LCD Not Responding to Commands:

   • Ensure the Enable (E) pin is being toggled correctly in the code.
   • Double-check the wiring and pin assignments in the code.

Q: Can I use the LCD with a 3.3V microcontroller?
A: Yes, but you will need a level shifter or resistor divider to step down the 5V signals from the LCD to 3.3V.

Q: How do I display custom characters on the LCD?
A: Use the createChar() function in the LiquidCrystal library to define custom characters.

Q: Can I use the LCD without a backlight?
A: Yes, the LCD will still function, but visibility may be reduced in low-light conditions.
