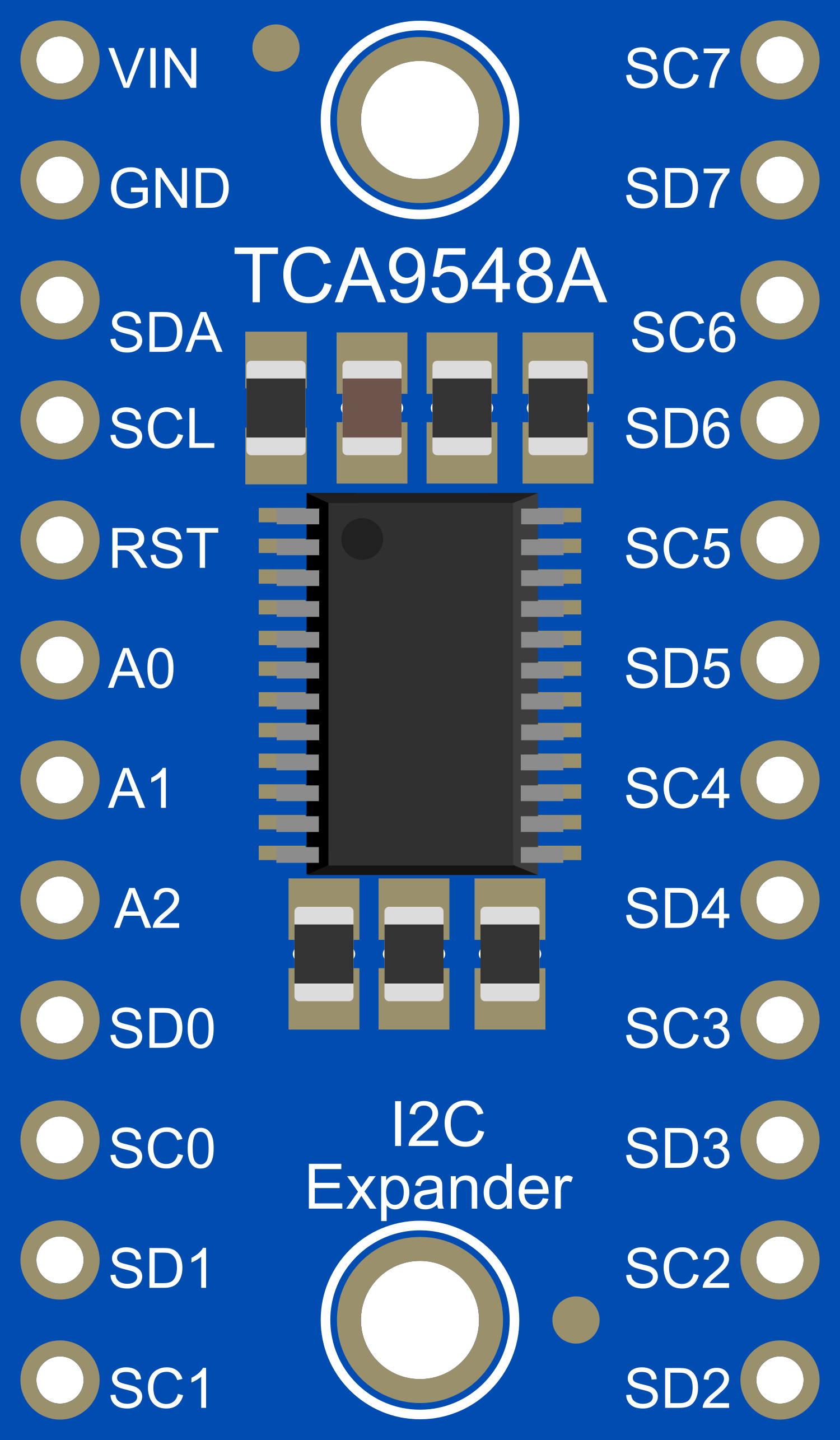

Image of TCA9548A i2c Multiplexer    [Bill Ludwig]
Cirkit Designer LogoDesign with TCA9548A i2c Multiplexer [Bill Ludwig] in Cirkit Designer

Introduction

The TCA9548A is an I2C multiplexer that enables communication between a microcontroller and multiple I2C devices using a single I2C bus. It is particularly useful when multiple devices with the same I2C address need to be connected to the same microcontroller. By switching between up to eight independent I2C channels, the TCA9548A allows seamless communication without address conflicts.

Explore Projects Built with TCA9548A i2c Multiplexer [Bill Ludwig]

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based I2C Multiplexer Interface
Image of 8 light sensors: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
This circuit utilizes an ESP32 microcontroller to interface with multiple I2C devices through an Adafruit TCA9548A I2C multiplexer. The ESP32 communicates with the TCA9548A via I2C, and the multiplexer allows for up to eight separate I2C buses, each connected to a 5-pin relimate connector. This setup enables the ESP32 to manage multiple I2C devices that may share the same address, by selecting which bus is active at any given time.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based I2C Communication Hub with Multiplexer and Expander
Image of Lights: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
This circuit features an Olimex ESP32-EVB microcontroller unit (MCU) for processing and connectivity, interfaced with an MCP23017 I/O expander and an Adafruit TCA9548A I2C multiplexer to expand the number of I/O lines and allow multiple I2C devices to communicate with the MCU over the same bus. Pull-up resistors are connected to the I2C lines for proper bus operation, and both the MCP23017 and TCA9548A have their reset lines pulled high, likely for normal operation without external reset control.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Multi-Sensor Data Logger with MPU-6050 and I2C Multiplexing
Image of project_final: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to four MPU-6050 sensors via an Adafruit TCA9548A I2C multiplexer. The ESP32 facilitates communication with each MPU-6050 sensor, which are likely used for motion tracking due to their integrated gyroscope and accelerometer. The multiplexer allows the ESP32 to interface with multiple sensors that share the same I2C address by providing separate I2C channels for each sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with I2C Multiplexing
Image of test: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
This circuit features an ESP32 microcontroller connected to an MQ-5 gas sensor and a DHT11 temperature and humidity sensor. The ESP32 reads analog data from the MQ-5 sensor and digital data from the DHT11 sensor. An Adafruit TCA9548A I2C multiplexer is used to potentially expand the number of I2C devices that can be connected, with multiple 5-pin relimate connectors interfaced to the multiplexer for additional sensors or peripherals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with TCA9548A i2c Multiplexer [Bill Ludwig]

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of 8 light sensors: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
ESP32-Based I2C Multiplexer Interface
This circuit utilizes an ESP32 microcontroller to interface with multiple I2C devices through an Adafruit TCA9548A I2C multiplexer. The ESP32 communicates with the TCA9548A via I2C, and the multiplexer allows for up to eight separate I2C buses, each connected to a 5-pin relimate connector. This setup enables the ESP32 to manage multiple I2C devices that may share the same address, by selecting which bus is active at any given time.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Lights: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
ESP32-Based I2C Communication Hub with Multiplexer and Expander
This circuit features an Olimex ESP32-EVB microcontroller unit (MCU) for processing and connectivity, interfaced with an MCP23017 I/O expander and an Adafruit TCA9548A I2C multiplexer to expand the number of I/O lines and allow multiple I2C devices to communicate with the MCU over the same bus. Pull-up resistors are connected to the I2C lines for proper bus operation, and both the MCP23017 and TCA9548A have their reset lines pulled high, likely for normal operation without external reset control.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of project_final: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
ESP32-Based Multi-Sensor Data Logger with MPU-6050 and I2C Multiplexing
This circuit features an ESP32 Devkit V1 microcontroller connected to four MPU-6050 sensors via an Adafruit TCA9548A I2C multiplexer. The ESP32 facilitates communication with each MPU-6050 sensor, which are likely used for motion tracking due to their integrated gyroscope and accelerometer. The multiplexer allows the ESP32 to interface with multiple sensors that share the same I2C address by providing separate I2C channels for each sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test: A project utilizing TCA9548A i2c Multiplexer    [Bill Ludwig]  in a practical application
ESP32-Based Environmental Monitoring System with I2C Multiplexing
This circuit features an ESP32 microcontroller connected to an MQ-5 gas sensor and a DHT11 temperature and humidity sensor. The ESP32 reads analog data from the MQ-5 sensor and digital data from the DHT11 sensor. An Adafruit TCA9548A I2C multiplexer is used to potentially expand the number of I2C devices that can be connected, with multiple 5-pin relimate connectors interfaced to the multiplexer for additional sensors or peripherals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Connecting multiple sensors or devices with identical I2C addresses to a single microcontroller.
  • Expanding the I2C bus to support additional devices.
  • Isolating I2C devices for testing or debugging purposes.
  • Applications in robotics, IoT, and data acquisition systems.

Technical Specifications

The following are the key technical details of the TCA9548A I2C multiplexer:

Parameter Value
Operating Voltage 1.65V to 5.5V
I2C Bus Voltage Range 1.65V to 5.5V
Maximum Clock Frequency 400 kHz (I2C Fast Mode)
Number of Channels 8
I2C Address Range 0x70 to 0x77 (configurable)
Operating Temperature -40°C to +85°C
Package Type TSSOP-24

Pin Configuration and Descriptions

The TCA9548A has 24 pins, with the following configuration:

Pin Number Pin Name Description
1-3 A0, A1, A2 Address selection pins. Configure the I2C address of the multiplexer.
4 RESET Active-low reset pin. Resets the device when pulled low.
5 GND Ground connection.
6 SCL I2C clock line (shared with all channels).
7 SDA I2C data line (shared with all channels).
8-15 SD0-SD7 Data lines for I2C channels 0 to 7.
16-23 SC0-SC7 Clock lines for I2C channels 0 to 7.
24 VCC Power supply input.

Usage Instructions

How to Use the TCA9548A in a Circuit

  1. Power the Device: Connect the VCC pin to a power supply (1.65V to 5.5V) and the GND pin to ground.
  2. Set the I2C Address: Use the A0, A1, and A2 pins to configure the I2C address. These pins can be connected to VCC or GND to set the address in the range 0x70 to 0x77.
  3. Connect the I2C Bus: Attach the SCL and SDA lines of the microcontroller to the SCL and SDA pins of the TCA9548A.
  4. Connect I2C Devices: Attach the SCL and SDA lines of each I2C device to the corresponding SCx and SDx pins of the desired channel.
  5. Control the Channels: Use I2C commands to enable or disable specific channels. Only one channel can be active at a time.

Important Considerations and Best Practices

  • Ensure that pull-up resistors are present on the SCL and SDA lines of the main I2C bus. Additional pull-up resistors may be required on the individual channels, depending on the connected devices.
  • Avoid enabling multiple channels simultaneously, as this can cause bus conflicts.
  • Use the RESET pin to reset the device if communication issues occur.

Example Code for Arduino UNO

The following example demonstrates how to use the TCA9548A with an Arduino UNO to communicate with a device on channel 0:

#include <Wire.h> // Include the Wire library for I2C communication

#define TCA9548A_ADDRESS 0x70 // Default I2C address of the TCA9548A

// Function to select a specific channel on the TCA9548A
void selectChannel(uint8_t channel) {
  if (channel > 7) return; // Ensure the channel is valid (0-7)
  Wire.beginTransmission(TCA9548A_ADDRESS);
  Wire.write(1 << channel); // Send the channel selection command
  Wire.endTransmission();
}

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication for debugging

  // Select channel 0
  selectChannel(0);
  Serial.println("Channel 0 selected");
}

void loop() {
  // Add code to communicate with the I2C device on channel 0
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Communication with I2C Devices:

    • Verify that the TCA9548A is powered correctly (check VCC and GND connections).
    • Ensure that the I2C address is set correctly using the A0, A1, and A2 pins.
    • Check for proper pull-up resistors on the SCL and SDA lines.
  2. Bus Conflicts or Data Corruption:

    • Ensure that only one channel is active at a time.
    • Verify that the connected devices are not using the same address on the same channel.
  3. Device Not Responding to Commands:

    • Use the RESET pin to reset the TCA9548A.
    • Confirm that the I2C clock frequency does not exceed 400 kHz.

FAQs

Q: Can I enable multiple channels simultaneously?
A: No, enabling multiple channels at the same time can cause bus conflicts. Only one channel should be active at a time.

Q: What happens if I do not use pull-up resistors?
A: Without pull-up resistors, the I2C bus may not function correctly, leading to communication errors.

Q: How do I determine the I2C address of the TCA9548A?
A: The I2C address is determined by the state of the A0, A1, and A2 pins. Refer to the datasheet for the address mapping.

Q: Can the TCA9548A work with 3.3V and 5V devices simultaneously?
A: Yes, the TCA9548A supports a wide voltage range (1.65V to 5.5V) and can interface with devices operating at different logic levels, provided the voltage levels are compatible.
