How to Use BUCK: Examples, Pinouts, and Specs

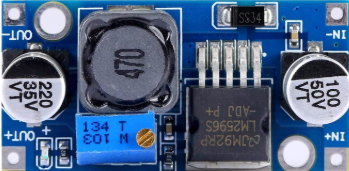

The BUCK DC/DC converter, manufactured by HUAREW, is a highly efficient DC-DC step-down voltage regulator. It is designed to convert a higher input voltage to a lower output voltage while maintaining high efficiency and stepping up the current. This component is widely used in power supply systems, battery-powered devices, and embedded systems where efficient voltage regulation is critical.

• Powering microcontrollers and low-voltage devices from higher voltage sources
• Battery charging circuits
• Voltage regulation in renewable energy systems (e.g., solar panels)
• Portable electronics and IoT devices
• Automotive electronics

The following table outlines the key technical specifications of the BUCK DC/DC converter:

The BUCK DC/DC converter typically has the following pin configuration:

1. Connect the Input Voltage (VIN):
   Attach the input voltage source to the VIN pin. Ensure the input voltage is within the specified range (4.5V to 40V).

2. Connect the Ground (GND):
   Connect the GND pin to the common ground of the circuit.

3. Connect the Output Voltage (VOUT):
   Attach the load to the VOUT pin. The output voltage can be adjusted using an external resistor divider connected to the FB pin.

4. Enable the Converter (EN):
   To enable the output, ensure the EN pin is pulled high. If unused, connect it to VIN.

5. Feedback Configuration (FB):
   Use a resistor divider network to set the desired output voltage. The feedback voltage is typically 1.2V.

• Input Capacitor: Place a low-ESR capacitor (e.g., 10µF) close to the VIN pin to stabilize the input voltage.
• Output Capacitor: Use a low-ESR capacitor (e.g., 22µF) at the VOUT pin to reduce output voltage ripple.
• Inductor Selection: Choose an inductor with sufficient current rating and low DC resistance to minimize losses.
• Thermal Management: Ensure adequate heat dissipation, especially when operating at high currents.
• Avoid Noise Interference: Keep the feedback trace short and away from high-frequency switching nodes.

The BUCK DC/DC converter can be used to power an Arduino UNO from a higher voltage source (e.g., a 12V battery). Below is an example circuit and Arduino code:

• Connect the 12V battery to the VIN pin of the BUCK converter.
• Connect the GND pin of the BUCK converter to the Arduino GND.
• Set the output voltage of the BUCK converter to 5V using the feedback resistor divider.
• Connect the VOUT pin of the BUCK converter to the Arduino 5V pin.

// Example code to blink an LED using Arduino UNO powered by BUCK DC/DC converter

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. No Output Voltage:

   • Ensure the EN pin is pulled high or connected to VIN.
   • Verify the input voltage is within the specified range.
   • Check for loose connections or soldering issues.

2. Excessive Output Ripple:

   • Use low-ESR capacitors at the input and output.
   • Ensure the inductor value is appropriate for the load current.

3. Overheating:

   • Check if the load current exceeds the maximum rating (3A).
   • Improve heat dissipation by adding a heatsink or increasing airflow.

4. Incorrect Output Voltage:

   • Verify the resistor divider network connected to the FB pin.
   • Ensure the feedback trace is not picking up noise.

Q: Can the BUCK DC/DC converter handle reverse polarity on the input?
A: No, the converter does not have built-in reverse polarity protection. Use a diode in series with the input to prevent damage.

Q: What is the minimum load current required for stable operation?
A: The converter typically requires a minimum load of 10mA for stable operation.

Q: Can I use the BUCK DC/DC converter for AC input?
A: No, the converter is designed for DC input only. Use a rectifier circuit to convert AC to DC before connecting to the VIN pin.

Q: How do I calculate the resistor values for the feedback network?
A: Use the formula:
[ V_{OUT} = V_{FB} \times \left(1 + \frac{R1}{R2}\right) ]
where ( V_{FB} ) is the feedback voltage (1.2V), ( R1 ) is the resistor from VOUT to FB, and ( R2 ) is the resistor from FB to GND.

This concludes the documentation for the HUAREW BUCK DC/DC converter.
