How to Use WAGO 221-413: Examples, Pinouts, and Specs

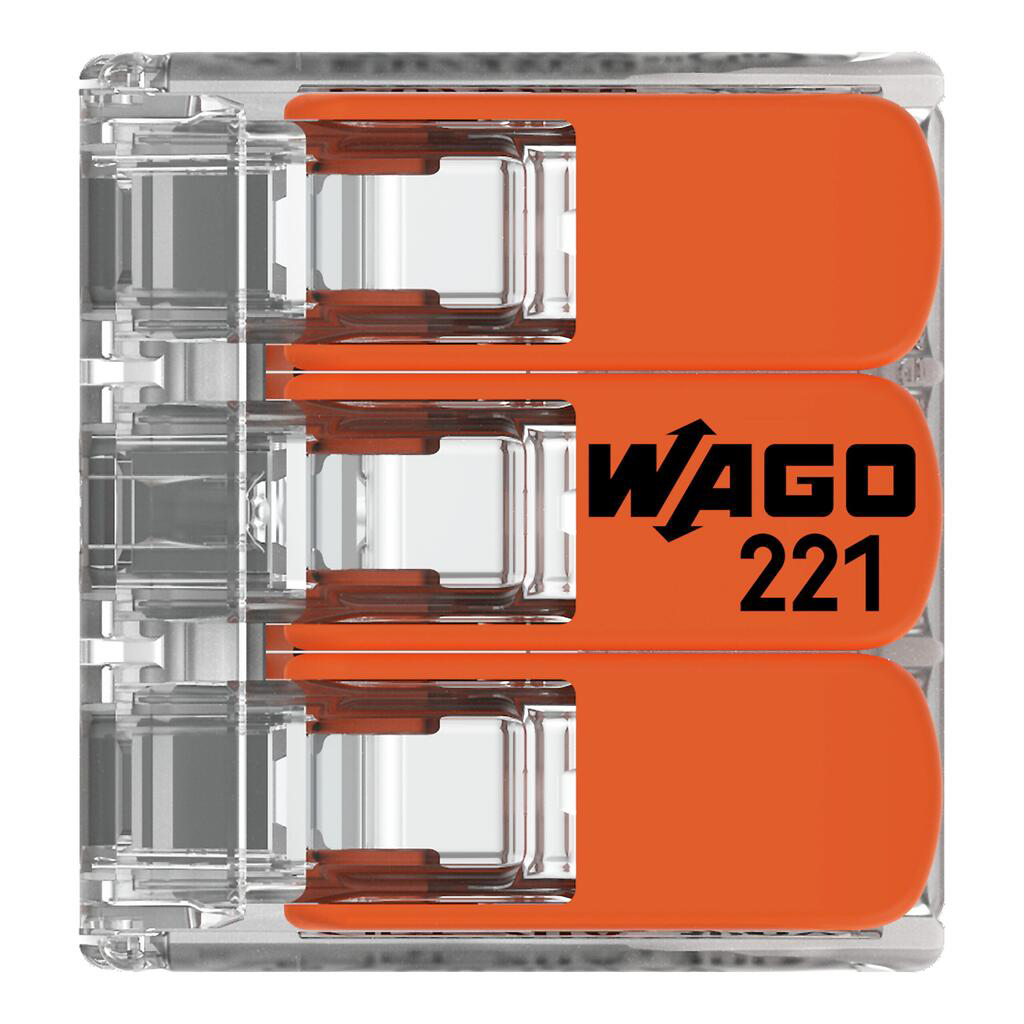

The WAGO 221-413 is a compact, push-in wire connector designed for quick and reliable electrical connections. Manufactured by WAGO, this connector simplifies the process of joining wires in electrical installations. Its transparent housing allows for easy inspection of wire connections, ensuring proper contact and safety. The WAGO 221-413 supports a wide range of wire sizes, making it versatile for use in residential, commercial, and industrial applications.

• Electrical wiring in residential and commercial buildings
• Lighting installations
• Junction boxes and distribution boards
• Temporary or permanent wiring connections
• Prototyping and testing in electrical projects

The WAGO 221-413 is designed to meet the needs of modern electrical installations with the following specifications:

The WAGO 221-413 does not have traditional pins but features three connection points for wires. Each connection point is equipped with a lever for easy wire insertion and secure clamping.

The WAGO 221-413 is designed for ease of use, even for those with minimal experience in electrical work. Follow these steps to use the connector effectively:

1. Prepare the Wires:

   • Strip the insulation from the wire ends to expose approximately 10–12 mm of conductor.
   • Ensure the exposed conductor is clean and free of damage.

2. Open the Lever:

   • Lift the lever on the WAGO 221-413 to open the clamping mechanism.

3. Insert the Wire:

   • Insert the stripped wire into the connection point until it reaches the stop.

4. Close the Lever:

   • Push the lever back down to secure the wire in place. The transparent housing allows you to visually confirm the connection.

5. Repeat for Additional Wires:

   • Repeat the process for the remaining connection points as needed.

• Ensure the wire size is within the supported range (0.14 mm² to 4 mm² or 24–12 AWG).
• Do not strip too much insulation, as this may expose the conductor outside the connector.
• Avoid using the connector in environments exceeding its rated temperature or voltage.
• Inspect the connection visually through the transparent housing to confirm proper wire placement.
• For stranded wires, twist the strands together before inserting them into the connector to ensure a secure connection.

While the WAGO 221-413 is not an electronic component like a sensor or module, it can be used to simplify wiring in Arduino projects. For example, you can use it to connect power supply wires or distribute signals to multiple components.

// Example: Using WAGO 221-413 to distribute power in an Arduino project
// This example assumes you are using the WAGO 221-413 to connect a 5V power
// supply to multiple components, such as sensors or LEDs.

void setup() {
  // No specific code is required for the WAGO 221-413 itself, as it is a
  // passive component. Simply ensure proper wiring and secure connections.

  // Example: Initialize an LED connected to pin 13
  pinMode(13, OUTPUT);
}

void loop() {
  // Blink the LED to test the circuit
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Can the WAGO 221-413 be reused?

   • Yes, the WAGO 221-413 is designed for reuse. Simply open the lever, remove the wire, and insert a new one.

2. Is the connector suitable for stranded wires?

   • Yes, the WAGO 221-413 supports both solid and stranded wires. For stranded wires, twist the strands together before insertion.

3. Can the connector be used outdoors?

   • The WAGO 221-413 is not waterproof. If used outdoors, ensure it is placed in a weatherproof enclosure.

4. What is the maximum number of wires it can connect?

   • The WAGO 221-413 has three connection points, allowing it to connect up to three wires.

By following these guidelines and best practices, the WAGO 221-413 can provide reliable and efficient electrical connections for a wide range of applications.
