How to Use Solar charge controller: Examples, Pinouts, and Specs

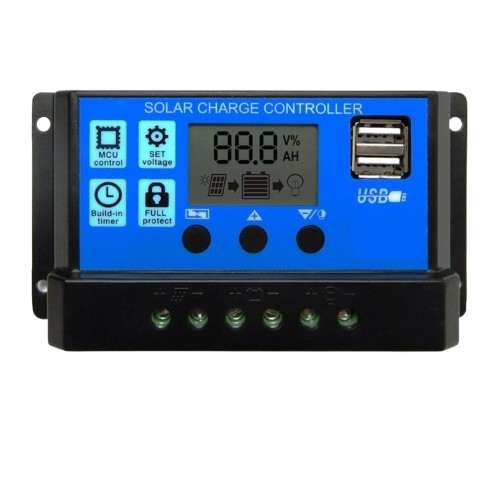

Image of Solar charge controller
Cirkit Designer LogoDesign with Solar charge controller in Cirkit Designer

Introduction

A solar charge controller is an essential device in solar power systems. It regulates the voltage and current coming from a solar panel to a battery, ensuring optimal charging and preventing overcharging. By managing the energy flow, it protects the battery from damage and extends its lifespan. Solar charge controllers are commonly used in off-grid solar systems, RVs, boats, and remote power setups.

Explore Projects Built with Solar charge controller

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Linear Actuator System with ESP32 and Sensor Integration
Image of Chicken Coup Automatic Door: A project utilizing Solar charge controller in a practical application
This circuit is a solar-powered system that charges a 12V AGM battery using an MPPT charge controller connected to a solar panel. It includes a Xiao ESP32C3 microcontroller that monitors environmental data via a BME680 sensor and controls a linear actuator through an L298N motor driver, with additional input from IR sensors and a voltage sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered IoT Device with ESP32-CAM, SIM900A GSM, and TOF Sensor Integration
Image of mouse trap: A project utilizing Solar charge controller in a practical application
This circuit appears to be a solar-powered system with a charge controller connected to a solar panel and a Li-ion battery, managing power distribution. The Arduino UNO microcontroller is interfaced with an ESP32-CAM, SIM900A GSM module, TOF10120 range sensor, MG996R servo, and an I2C LCD screen, likely for monitoring and control purposes. Buck converters are used to regulate voltage for the microcontroller and peripherals, ensuring stable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered ESP32 IoT Device with Battery Backup and Power Management
Image of power supply ni kuya rey: A project utilizing Solar charge controller in a practical application
This is a solar power management circuit that uses a charge controller to regulate the charging of a 12V battery from a solar panel and provides a stabilized voltage output to a load via a step-down buck converter. Safety features include diodes for reverse current protection and fuses for overcurrent protection, while capacitors ensure voltage stability for the connected load. An ESP32 microcontroller is included for potential control or monitoring functions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Charging System with Arduino Mega 2560
Image of solar 1: A project utilizing Solar charge controller in a practical application
This circuit is a solar power management system that uses multiple solar panels to charge a 12V battery via a solar charge controller. The charge controller also powers an Arduino Mega 2560, which can be used for further processing or control tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Solar charge controller

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Chicken Coup Automatic Door: A project utilizing Solar charge controller in a practical application
Solar-Powered Linear Actuator System with ESP32 and Sensor Integration
This circuit is a solar-powered system that charges a 12V AGM battery using an MPPT charge controller connected to a solar panel. It includes a Xiao ESP32C3 microcontroller that monitors environmental data via a BME680 sensor and controls a linear actuator through an L298N motor driver, with additional input from IR sensors and a voltage sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mouse trap: A project utilizing Solar charge controller in a practical application
Solar-Powered IoT Device with ESP32-CAM, SIM900A GSM, and TOF Sensor Integration
This circuit appears to be a solar-powered system with a charge controller connected to a solar panel and a Li-ion battery, managing power distribution. The Arduino UNO microcontroller is interfaced with an ESP32-CAM, SIM900A GSM module, TOF10120 range sensor, MG996R servo, and an I2C LCD screen, likely for monitoring and control purposes. Buck converters are used to regulate voltage for the microcontroller and peripherals, ensuring stable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of power supply ni kuya rey: A project utilizing Solar charge controller in a practical application
Solar-Powered ESP32 IoT Device with Battery Backup and Power Management
This is a solar power management circuit that uses a charge controller to regulate the charging of a 12V battery from a solar panel and provides a stabilized voltage output to a load via a step-down buck converter. Safety features include diodes for reverse current protection and fuses for overcurrent protection, while capacitors ensure voltage stability for the connected load. An ESP32 microcontroller is included for potential control or monitoring functions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of solar 1: A project utilizing Solar charge controller in a practical application
Solar-Powered Battery Charging System with Arduino Mega 2560
This circuit is a solar power management system that uses multiple solar panels to charge a 12V battery via a solar charge controller. The charge controller also powers an Arduino Mega 2560, which can be used for further processing or control tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Off-grid solar power systems
  • Solar-powered lighting systems
  • RVs, boats, and caravans
  • Remote monitoring and communication systems
  • Backup power systems

Technical Specifications

Below are the general technical specifications for a typical solar charge controller. Always refer to the specific datasheet for your model.

Key Technical Details

  • Input Voltage Range: 12V/24V auto-detect (common models)
  • Maximum Input Current: 10A, 20A, 30A, or higher (depending on the model)
  • Battery Voltage: 12V/24V
  • Charging Modes: PWM (Pulse Width Modulation) or MPPT (Maximum Power Point Tracking)
  • Operating Temperature: -20°C to 60°C
  • Efficiency: Up to 98% (for MPPT models)
  • Protections: Overcharge, over-discharge, short circuit, reverse polarity

Pin Configuration and Descriptions

The solar charge controller typically has terminals for connecting the solar panel, battery, and load. Below is a table describing the connections:

Pin/Terminal Label Description
1 Solar Panel (+) Positive terminal for connecting the solar panel.
2 Solar Panel (-) Negative terminal for connecting the solar panel.
3 Battery (+) Positive terminal for connecting the battery.
4 Battery (-) Negative terminal for connecting the battery.
5 Load (+) Positive terminal for connecting the DC load (e.g., lights, appliances).
6 Load (-) Negative terminal for connecting the DC load.

Usage Instructions

How to Use the Solar Charge Controller in a Circuit

  1. Connect the Battery First: Always connect the battery to the charge controller before connecting the solar panel or load. This ensures the controller detects the correct system voltage (12V or 24V).
  2. Connect the Solar Panel: Attach the solar panel's positive and negative terminals to the corresponding inputs on the charge controller.
  3. Connect the Load: If you are powering DC devices directly, connect them to the load terminals on the charge controller.
  4. Power On: Once all connections are secure, the charge controller will begin regulating the energy flow automatically.

Important Considerations and Best Practices

  • Battery Type: Ensure the charge controller is compatible with your battery type (e.g., lead-acid, lithium-ion).
  • System Voltage: Verify that the charge controller supports the voltage of your solar panel and battery.
  • Placement: Install the charge controller in a well-ventilated area to prevent overheating.
  • Wiring: Use appropriately rated wires to handle the current and minimize voltage drops.
  • Fuses: Add fuses or circuit breakers between the solar panel, battery, and load for safety.

Example: Connecting to an Arduino UNO

If you want to monitor the battery voltage using an Arduino UNO, you can connect the battery terminals to an analog input pin via a voltage divider. Below is an example code snippet:

// Define the analog pin connected to the voltage divider
const int voltagePin = A0;

// Define the voltage divider ratio (e.g., 10k and 2k resistors)
const float voltageDividerRatio = 6.0; // Adjust based on your resistor values

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawValue = analogRead(voltagePin); // Read the analog input
  float voltage = (rawValue * 5.0 / 1023.0) * voltageDividerRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Ensure the voltage divider reduces the battery voltage to a safe level for the Arduino's analog input (0-5V).

Troubleshooting and FAQs

Common Issues and Solutions

  1. Controller Not Powering On

    • Cause: Battery not connected or insufficient voltage.
    • Solution: Check the battery connection and ensure the voltage is within the controller's operating range.
  2. Battery Not Charging

    • Cause: Solar panel not producing enough power or incorrect wiring.
    • Solution: Verify the solar panel's output voltage and current. Check all connections.
  3. Load Not Powering

    • Cause: Load exceeds the controller's current rating or is not connected properly.
    • Solution: Ensure the load's current draw is within the controller's limits. Check the wiring.
  4. Overheating

    • Cause: Poor ventilation or excessive current.
    • Solution: Install the controller in a cooler, well-ventilated area. Reduce the load if necessary.

FAQs

Q1: Can I use a solar charge controller with a wind turbine?
A1: No, solar charge controllers are designed specifically for solar panels. Use a charge controller designed for wind turbines.

Q2: What is the difference between PWM and MPPT controllers?
A2: PWM controllers are simpler and less expensive but less efficient. MPPT controllers maximize power extraction from the solar panel, especially in varying sunlight conditions.

Q3: How do I know if my battery is fully charged?
A3: Most charge controllers have LED indicators or an LCD screen to show the battery's charge status.

Q4: Can I connect multiple solar panels to one charge controller?
A4: Yes, but ensure the combined voltage and current do not exceed the controller's ratings. Use series or parallel connections as needed.

By following this documentation, you can effectively use a solar charge controller to manage your solar power system.
