How to Use Diode: Examples, Pinouts, and Specs

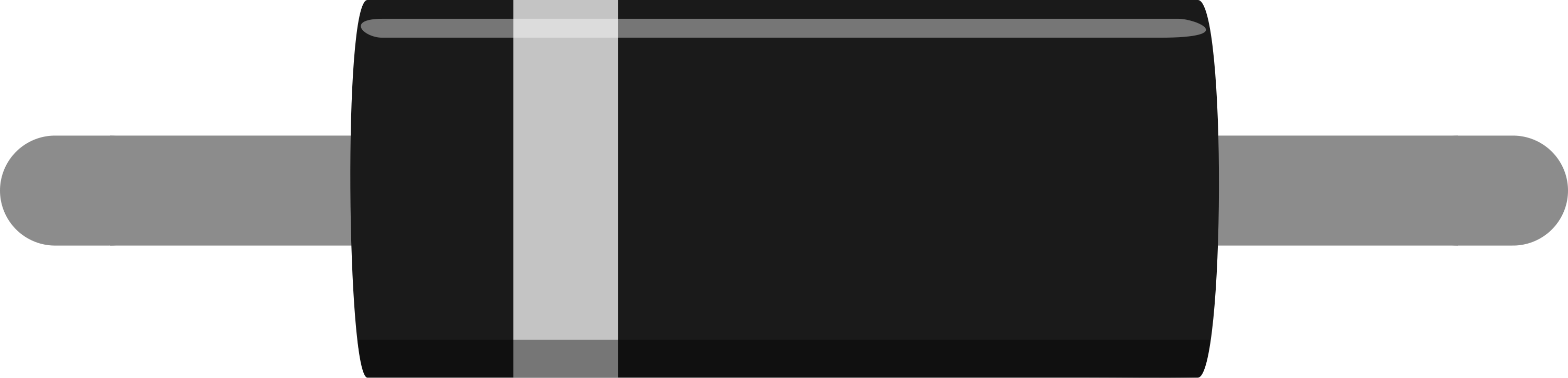

Image of Diode
Cirkit Designer LogoDesign with Diode in Cirkit Designer

Introduction

A diode is a semiconductor device that allows current to flow in one direction only, acting as a one-way switch for electrical signals. It is one of the most fundamental components in electronics and is widely used in various applications. Diodes are essential for rectification, signal demodulation, voltage regulation, and circuit protection.

Explore Projects Built with Diode

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Resistor-Diode Circuit with Multimeter Current Measurement
Image of diode: A project utilizing Diode in a practical application
This circuit consists of a power supply connected in series with a resistor and a diode. A multimeter is connected across the resistor to measure the current flowing through the resistor. The diode ensures current flows in one direction, protecting the circuit from potential reverse current damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Diode-Resistor Network for Voltage Regulation
Image of Feed bot cirkit: A project utilizing Diode in a practical application
This circuit consists of two parallel branches, each containing an 820 Ohm resistor in series with a diode. The anodes of both diodes are connected together, forming a common node.
Cirkit Designer LogoOpen Project in Cirkit Designer
Diode and Capacitor-Based Voltage Regulation Circuit
Image of Pavetra#2: A project utilizing Diode in a practical application
This circuit is a complex network of diodes and electrolytic capacitors connected to two terminal PCB 2-pin connectors. The diodes are arranged in a series-parallel configuration, while the capacitors are connected in a manner that suggests filtering or energy storage purposes. The overall design appears to be aimed at rectification and smoothing of an input signal.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC Power Supply with Diode Rectification and Bulb Indicator
Image of susa: A project utilizing Diode in a practical application
This circuit is a simple AC-powered light with a diode in series. The diode is connected in series with the AC supply's positive terminal and the AC bulb's neutral terminal, while the bulb's positive terminal is connected to the AC supply's negative terminal. The diode will rectify the AC current, allowing only one half of the AC waveform to pass through to the bulb, causing it to flicker at a rate of half the AC frequency.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Diode

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of diode: A project utilizing Diode in a practical application
Resistor-Diode Circuit with Multimeter Current Measurement
This circuit consists of a power supply connected in series with a resistor and a diode. A multimeter is connected across the resistor to measure the current flowing through the resistor. The diode ensures current flows in one direction, protecting the circuit from potential reverse current damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Feed bot cirkit: A project utilizing Diode in a practical application
Diode-Resistor Network for Voltage Regulation
This circuit consists of two parallel branches, each containing an 820 Ohm resistor in series with a diode. The anodes of both diodes are connected together, forming a common node.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pavetra#2: A project utilizing Diode in a practical application
Diode and Capacitor-Based Voltage Regulation Circuit
This circuit is a complex network of diodes and electrolytic capacitors connected to two terminal PCB 2-pin connectors. The diodes are arranged in a series-parallel configuration, while the capacitors are connected in a manner that suggests filtering or energy storage purposes. The overall design appears to be aimed at rectification and smoothing of an input signal.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of susa: A project utilizing Diode in a practical application
AC Power Supply with Diode Rectification and Bulb Indicator
This circuit is a simple AC-powered light with a diode in series. The diode is connected in series with the AC supply's positive terminal and the AC bulb's neutral terminal, while the bulb's positive terminal is connected to the AC supply's negative terminal. The diode will rectify the AC current, allowing only one half of the AC waveform to pass through to the bulb, causing it to flicker at a rate of half the AC frequency.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Rectification: Converting AC (alternating current) to DC (direct current) in power supplies.
  • Signal Demodulation: Extracting information from modulated signals in communication systems.
  • Voltage Regulation: Stabilizing voltage levels in circuits.
  • Circuit Protection: Preventing reverse polarity damage in sensitive components.
  • LEDs (Light Emitting Diodes): Producing light in display and lighting applications.

Technical Specifications

Below are the general technical specifications for a standard silicon diode (e.g., 1N4007). Specifications may vary depending on the specific diode type.

Key Technical Details

  • Forward Voltage Drop (Vf): ~0.7V (silicon diode), ~0.3V (germanium diode)
  • Maximum Reverse Voltage (Vr): 50V to 1000V (depending on the diode model)
  • Maximum Forward Current (If): 1A (for 1N4007)
  • Power Dissipation: Typically 3W or less
  • Reverse Leakage Current (Ir): <5µA (at rated reverse voltage)
  • Operating Temperature Range: -65°C to +150°C

Pin Configuration and Descriptions

Diodes typically have two terminals: Anode and Cathode. The cathode is marked with a stripe on the diode body.

Pin Name Description Symbol
Anode Positive terminal; current enters here A
Cathode Negative terminal; current exits here K

Usage Instructions

How to Use the Diode in a Circuit

  1. Identify the Terminals: Locate the cathode stripe on the diode body. The cathode connects to the negative side of the circuit, and the anode connects to the positive side.
  2. Insert the Diode: Place the diode in the circuit with the correct orientation. Current will flow from the anode to the cathode.
  3. Use in Rectification: For AC to DC conversion, connect the diode in a rectifier configuration (e.g., half-wave or full-wave rectifier).
  4. Protect Against Reverse Polarity: Place the diode in series with the power supply to prevent damage from reverse voltage.

Important Considerations and Best Practices

  • Avoid Exceeding Ratings: Ensure the diode's maximum reverse voltage and forward current ratings are not exceeded.
  • Heat Dissipation: Use a heatsink or proper ventilation if the diode operates near its maximum power dissipation.
  • Reverse Voltage Protection: Use a flyback diode across inductive loads (e.g., relays, motors) to prevent voltage spikes.
  • Choose the Right Diode: Select a diode type (e.g., Schottky, Zener, or LED) based on the application requirements.

Example: Using a Diode with Arduino UNO

Below is an example of using a diode to protect an Arduino UNO from reverse polarity.

/*
  Example: Reverse Polarity Protection for Arduino UNO
  This circuit uses a 1N4007 diode to prevent damage to the Arduino
  if the power supply is connected in reverse.
*/

void setup() {
  // No specific code is required for the diode itself.
  // The diode is connected in series with the power supply.
}

void loop() {
  // Your main Arduino code goes here.
}

Circuit Connection:

  • Connect the anode of the diode to the positive terminal of the power supply.
  • Connect the cathode of the diode to the Arduino's VIN pin.
  • The diode will block current if the power supply is connected in reverse.

Troubleshooting and FAQs

Common Issues

  1. Diode Overheating:

    • Cause: Exceeding the maximum forward current or power dissipation.
    • Solution: Use a diode with higher current and power ratings or add a heatsink.
  2. No Current Flow:

    • Cause: Incorrect orientation of the diode.
    • Solution: Verify the anode and cathode connections.
  3. High Reverse Leakage Current:

    • Cause: Operating the diode near its maximum reverse voltage.
    • Solution: Use a diode with a higher reverse voltage rating.
  4. Voltage Drop Too High:

    • Cause: Using a silicon diode where a lower forward voltage drop is required.
    • Solution: Use a Schottky diode for lower forward voltage drop (~0.2V to 0.4V).

FAQs

  • Q: Can I use any diode for rectification?

    • A: Not all diodes are suitable for rectification. Use power diodes like 1N4007 for high current applications.
  • Q: What is the difference between a Zener diode and a regular diode?

    • A: A Zener diode is designed to allow current to flow in reverse when the voltage exceeds its breakdown voltage, making it useful for voltage regulation.
  • Q: How do I test if a diode is working?

    • A: Use a multimeter in diode mode. A working diode will show a low voltage drop (~0.7V for silicon) in one direction and no current flow in the reverse direction.
  • Q: Can I use a diode to protect my circuit from reverse polarity?

    • A: Yes, place the diode in series with the power supply or across the load for reverse polarity protection.

This concludes the documentation for the diode.
