How to Use SSR : Examples, Pinouts, and Specs

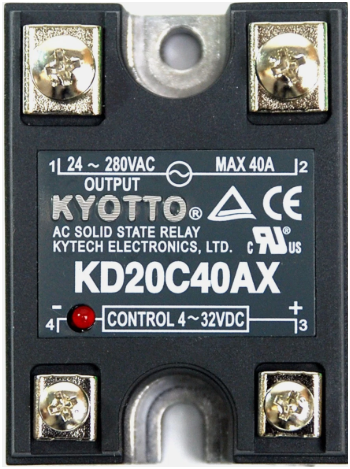

Image of SSR
Cirkit Designer LogoDesign with SSR in Cirkit Designer

Introduction

A Solid State Relay (SSR) is an electronic switching device that uses semiconductor components, such as thyristors, triacs, or transistors, to control the flow of electrical power to a load. Unlike traditional electromechanical relays, SSRs have no moving parts, which allows for faster switching, silent operation, and a significantly longer lifespan. SSRs are widely used in applications where reliability, speed, and durability are critical.

Explore Projects Built with SSR

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Temperature-Controlled Heating System with SSR and Titanium Resistor
Image of Wire Cut Four Slider 33-2 & 33-3 (Old): A project utilizing SSR  in a practical application
This circuit is a temperature control system that uses a temperature controller to regulate a heating titanium resistor via a solid-state relay (SSR). The power transformer supplies the necessary voltage to the temperature controller, which in turn controls the SSR to manage the heating element.
Cirkit Designer LogoOpen Project in Cirkit Designer
PID Temperature Control System with Thermocouple and SSR
Image of IR: A project utilizing SSR  in a practical application
This circuit is a temperature control system that uses a thermocouple to measure temperature and a PID controller to regulate it. The PID controller drives a solid-state relay (SSR) to control an external load, with power supplied through an AC inlet socket.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Vibration and Smoke Detection System with Web Control and Safety Indicators
Image of AMAN??: A project utilizing SSR  in a practical application
This circuit is designed to monitor environmental conditions using a vibration sensor and a smoke detector, with the ability to control an exhaust fan and a DC motor via solid-state relays. The ESP32 microcontroller is programmed to provide web server functionality for remote monitoring and control, and uses LEDs as status indicators for different levels of alert. The power supply and step-down module ensure appropriate voltage levels for the components, and the SSRs are used to safely switch high-current loads like the fan and motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Wi-Fi Controlled Servo Gate System with Pushbutton Activation
Image of Blastgate: A project utilizing SSR  in a practical application
This circuit uses an ESP32 microcontroller to control five servos and two solid-state relays (SSRs) based on the state of five pushbuttons. The servos are used to open and close gates, while the SSRs control two motors, which are activated depending on the number of active gates.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SSR

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Wire Cut Four Slider 33-2 & 33-3 (Old): A project utilizing SSR  in a practical application
Temperature-Controlled Heating System with SSR and Titanium Resistor
This circuit is a temperature control system that uses a temperature controller to regulate a heating titanium resistor via a solid-state relay (SSR). The power transformer supplies the necessary voltage to the temperature controller, which in turn controls the SSR to manage the heating element.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IR: A project utilizing SSR  in a practical application
PID Temperature Control System with Thermocouple and SSR
This circuit is a temperature control system that uses a thermocouple to measure temperature and a PID controller to regulate it. The PID controller drives a solid-state relay (SSR) to control an external load, with power supplied through an AC inlet socket.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of AMAN??: A project utilizing SSR  in a practical application
ESP32-Based Vibration and Smoke Detection System with Web Control and Safety Indicators
This circuit is designed to monitor environmental conditions using a vibration sensor and a smoke detector, with the ability to control an exhaust fan and a DC motor via solid-state relays. The ESP32 microcontroller is programmed to provide web server functionality for remote monitoring and control, and uses LEDs as status indicators for different levels of alert. The power supply and step-down module ensure appropriate voltage levels for the components, and the SSRs are used to safely switch high-current loads like the fan and motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Blastgate: A project utilizing SSR  in a practical application
ESP32-Based Wi-Fi Controlled Servo Gate System with Pushbutton Activation
This circuit uses an ESP32 microcontroller to control five servos and two solid-state relays (SSRs) based on the state of five pushbuttons. The servos are used to open and close gates, while the SSRs control two motors, which are activated depending on the number of active gates.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Industrial automation and process control
  • Heating, ventilation, and air conditioning (HVAC) systems
  • Motor control and lighting systems
  • Home appliances and smart home devices
  • Temperature control systems (e.g., ovens, furnaces)
  • High-speed switching applications

Technical Specifications

Key Technical Details

Parameter Value/Range
Input Control Voltage Typically 3-32 VDC
Output Voltage Range 24-480 VAC (varies by model)
Output Current Rating 2A to 100A (depending on the model)
Switching Speed < 1 ms
Isolation Voltage 2500-4000 V (input to output)
Operating Temperature -30°C to +80°C
Dielectric Strength 2.5 kV to 4 kV
Mounting Style Panel or DIN rail

Pin Configuration and Descriptions

Pin Number Name Description
1 Input (+) Positive terminal for the control signal (DC voltage input).
2 Input (-) Negative terminal for the control signal (DC voltage input).
3 Load Terminal One side of the AC load connection.
4 Load Terminal The other side of the AC load connection.

Note: Some SSRs may have additional pins or terminals for features like status indicators or heat sink connections. Always refer to the specific datasheet for your SSR model.

Usage Instructions

How to Use the Component in a Circuit

  1. Control Signal Connection: Connect the control signal (e.g., from a microcontroller or switch) to the input terminals of the SSR. Ensure the control voltage is within the specified range (e.g., 3-32 VDC).
  2. Load Connection: Connect the AC load (e.g., motor, light, or heater) to the load terminals of the SSR. Ensure the load voltage and current are within the SSR's rated capacity.
  3. Power Supply: Provide the appropriate AC power supply to the load circuit.
  4. Heat Dissipation: If the SSR is handling high currents, attach a heat sink or ensure proper ventilation to prevent overheating.

Important Considerations and Best Practices

  • Heat Management: SSRs can generate heat during operation. Use a heat sink or cooling fan for high-power applications.
  • Snubber Circuit: For inductive loads (e.g., motors), use a snubber circuit to suppress voltage spikes and protect the SSR.
  • Isolation: Ensure proper electrical isolation between the control and load sides to prevent damage to sensitive components.
  • Mounting: Secure the SSR to a panel or DIN rail as recommended by the manufacturer to ensure stability and heat dissipation.
  • Polarity: Observe the correct polarity when connecting the control signal to avoid damage to the SSR.

Example: Connecting an SSR to an Arduino UNO

Below is an example of how to control an SSR using an Arduino UNO to switch an AC load (e.g., a light bulb).

Circuit Diagram

  • Connect the SSR's input terminals to the Arduino's digital output pin and ground.
  • Connect the AC load to the SSR's load terminals.
  • Provide an external AC power supply to the load circuit.

Arduino Code

// Define the pin connected to the SSR control input
const int ssrPin = 7;

void setup() {
  pinMode(ssrPin, OUTPUT); // Set the SSR pin as an output
}

void loop() {
  digitalWrite(ssrPin, HIGH); // Turn the SSR (and load) ON
  delay(5000);                // Keep the load ON for 5 seconds
  digitalWrite(ssrPin, LOW);  // Turn the SSR (and load) OFF
  delay(5000);                // Keep the load OFF for 5 seconds
}

Warning: When working with AC loads, exercise extreme caution to avoid electric shock. Ensure all connections are secure and insulated.

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
SSR does not switch the load Insufficient control voltage/current Verify the control signal is within range.
Load flickers or does not stay on Inductive load causing voltage spikes Add a snubber circuit across the load.
SSR overheats Excessive current or poor ventilation Use a heat sink or cooling fan.
No isolation between input/output Faulty SSR or incorrect wiring Check wiring and replace the SSR if needed.

FAQs

  1. Can I use an SSR with a DC load?

    • No, most SSRs are designed for AC loads. Use a DC solid-state relay for DC applications.
  2. Why is my SSR heating up?

    • SSRs generate heat due to internal resistance. Ensure proper heat dissipation using a heat sink or fan.
  3. How do I know if my SSR is working?

    • Use a multimeter to check the continuity of the load circuit when the control signal is applied.
  4. Can I control an SSR directly with an Arduino?

    • Yes, as long as the SSR's input voltage and current requirements are within the Arduino's output capabilities.

By following this documentation, you can effectively integrate an SSR into your projects for reliable and efficient switching of AC loads.
