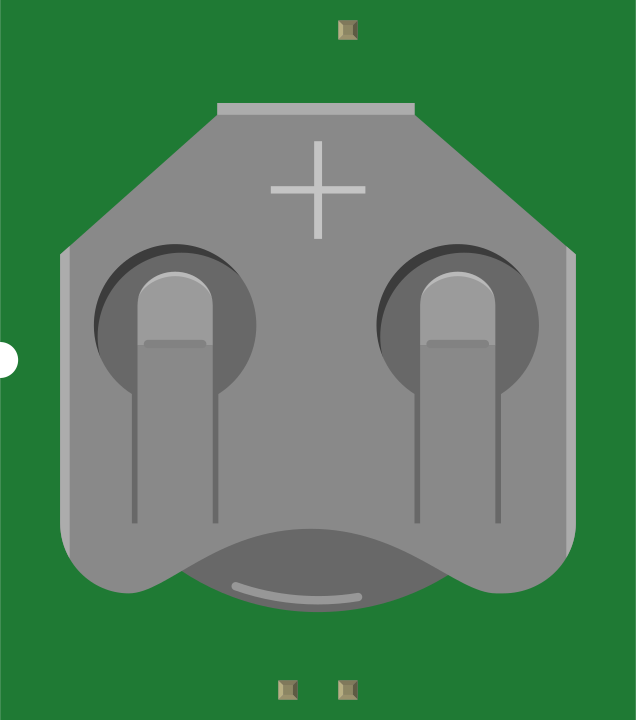

How to Use Battery Holders: Examples, Pinouts, and Specs

Battery holders are devices used to securely hold batteries in place within a circuit, ensuring proper electrical contact and easy replacement. They are designed to accommodate various battery sizes, such as AA, AAA, 9V, or coin cells, and are commonly used in portable electronic devices, DIY projects, and prototyping. Battery holders simplify the process of connecting batteries to a circuit while protecting them from physical damage and ensuring reliable operation.

• Portable electronic devices (e.g., flashlights, remote controls)
• DIY electronics and prototyping
• Robotics and small motorized projects
• Educational kits and experiments
• Backup power supplies for small circuits

• Material: Plastic (typically ABS or polycarbonate) with metal contacts (nickel-plated or stainless steel)
• Battery Compatibility: Varies by model (e.g., AA, AAA, 9V, CR2032 coin cells)
• Voltage Rating: Depends on the battery type and configuration (e.g., 1.5V for a single AA battery, 3V for two AA batteries in series)
• Current Rating: Typically supports the maximum current output of the battery type
• Mounting Options: Panel mount, PCB mount, or free-standing with wires/leads
• Contact Resistance: Low resistance for efficient power transfer

Battery holders do not have traditional pins like ICs but instead feature terminals or leads for electrical connections. Below is a table describing the typical connections:

1. Select the Appropriate Holder: Choose a battery holder that matches the size and type of battery required for your circuit (e.g., AA, AAA, 9V, or coin cell).
2. Insert the Battery: Place the battery into the holder, ensuring correct polarity. The positive terminal of the battery should align with the "+" marking on the holder, and the negative terminal should align with the "-" marking.
3. Connect to the Circuit:
   • If the holder has lead wires, connect the red wire to the positive side of the circuit and the black wire to the negative side.
   • If the holder has PCB pins, solder the pins to the appropriate pads on the PCB.
4. Secure the Holder: If necessary, use screws, adhesive, or clips to mount the holder securely to your project or enclosure.

• Polarity: Always double-check the polarity of the battery before inserting it into the holder to avoid damage to the circuit.
• Current Rating: Ensure the battery holder can handle the current requirements of your circuit.
• Mounting: Secure the holder to prevent movement or disconnection during operation.
• Contact Cleaning: Periodically clean the metal contacts to prevent corrosion and ensure reliable electrical connections.
• Avoid Overheating: Do not exceed the voltage or current ratings of the holder, as this may cause overheating or damage.

Below is an example of using a 4xAA battery holder (6V output) to power an Arduino UNO:

/* Example: Powering an Arduino UNO with a 4xAA Battery Holder
   Ensure the battery holder provides the correct voltage (6V in this case).
   Connect the positive terminal of the holder to the Arduino's VIN pin and
   the negative terminal to the GND pin. */

void setup() {
  // No specific setup required for power input
}

void loop() {
  // Your main code goes here
}

1. No Power to the Circuit:

   • Cause: Incorrect battery polarity or loose connections.
   • Solution: Verify the battery is inserted correctly and check all connections.

2. Intermittent Power Loss:

   • Cause: Corroded or dirty contacts.
   • Solution: Clean the contacts with a soft cloth or isopropyl alcohol.

3. Overheating:

   • Cause: Exceeding the current rating of the holder or using incompatible batteries.
   • Solution: Use batteries and holders rated for the circuit's current requirements.

4. Battery Holder Breakage:

   • Cause: Excessive force during battery insertion or removal.
   • Solution: Handle the holder carefully and avoid applying excessive pressure.

• Use a multimeter to check the voltage at the holder's terminals to ensure proper output.
• If using a PCB-mounted holder, inspect solder joints for cracks or poor connections.
• Replace damaged or worn-out holders to maintain reliable operation.

By following these guidelines and best practices, you can effectively use battery holders in your electronic projects and ensure long-lasting performance.
