How to Use motor and wheels: Examples, Pinouts, and Specs

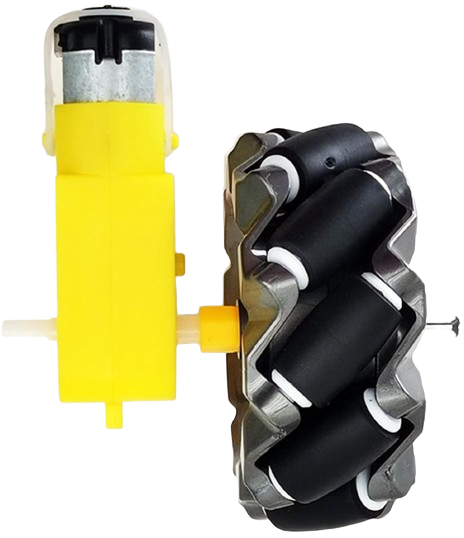

• The motor and wheels component is a fundamental part of robotics and automation systems. It consists of a motor (typically a DC motor or stepper motor) paired with wheels to enable movement and mobility in robotic platforms or vehicles.
• Common applications include robotic cars, automated guided vehicles (AGVs), line-following robots, and other mobile robotic systems.

1. DC Motor with Wheels:

   • Connect the motor terminals to a motor driver (e.g., L298N or L293D) to control speed and direction.
   • Attach the wheels securely to the motor shaft using the provided mounting mechanism.
   • Power the motor driver with an appropriate voltage source (e.g., 6V or 12V battery pack).
   • Use a microcontroller (e.g., Arduino UNO) to send control signals to the motor driver.

2. Stepper Motor with Wheels:

   • Connect the stepper motor to a stepper motor driver (e.g., A4988 or ULN2003).
   • Attach the wheels to the motor shaft.
   • Power the stepper motor driver with the recommended voltage.
   • Use a microcontroller to send step and direction signals to the driver.

• Ensure the motor driver can handle the stall current of the motor to avoid damage.
• Use appropriate power sources to match the motor's voltage and current requirements.
• Securely attach the wheels to prevent slippage or misalignment during operation.
• For stepper motors, ensure proper sequencing of control signals to avoid missed steps or erratic movement.

// Example code to control a DC motor with L298N motor driver and Arduino UNO

// Define motor control pins
const int ENA = 9;  // PWM pin to control motor speed
const int IN1 = 8;  // Motor direction pin 1
const int IN2 = 7;  // Motor direction pin 2

void setup() {
  // Set motor control pins as outputs
  pinMode(ENA, OUTPUT);
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
}

void loop() {
  // Move motor forward
  digitalWrite(IN1, HIGH);  // Set IN1 high
  digitalWrite(IN2, LOW);   // Set IN2 low
  analogWrite(ENA, 150);    // Set speed (0-255)

  delay(2000);              // Run forward for 2 seconds

  // Move motor backward
  digitalWrite(IN1, LOW);   // Set IN1 low
  digitalWrite(IN2, HIGH);  // Set IN2 high
  analogWrite(ENA, 150);    // Set speed (0-255)

  delay(2000);              // Run backward for 2 seconds

  // Stop motor
  digitalWrite(IN1, LOW);   // Set IN1 low
  digitalWrite(IN2, LOW);   // Set IN2 low
  analogWrite(ENA, 0);      // Set speed to 0

  delay(2000);              // Wait for 2 seconds
}

1. Motor Not Spinning:

   • Check the power supply voltage and current to ensure it meets the motor's requirements.
   • Verify the connections between the motor, driver, and microcontroller.
   • Ensure the motor driver is receiving control signals from the microcontroller.

2. Motor Spins in the Wrong Direction:

   • Reverse the connections of the motor terminals (for DC motors).
   • For stepper motors, check the wiring of the coils and the control signal sequence.

3. Motor Overheats:

   • Ensure the motor is not overloaded or stalled.
   • Use a heat sink or cooling mechanism if necessary.

4. Wheels Slipping or Misaligned:

   • Check the mounting of the wheels and tighten if necessary.
   • Use wheels with better traction for smooth surfaces.

• Can I use a single power source for both the motor and microcontroller?

  • Yes, but ensure the power source can handle the combined current draw. Use a voltage regulator if needed.

• What is the best way to control motor speed?

  • Use PWM (Pulse Width Modulation) signals to control the motor speed via the motor driver.

• Can I use these motors and wheels for heavy loads?

  • It depends on the motor's torque rating. For heavier loads, consider using motors with higher torque and larger wheels.
