How to Use DFRobot DFPlayer Mini: Examples, Pinouts, and Specs

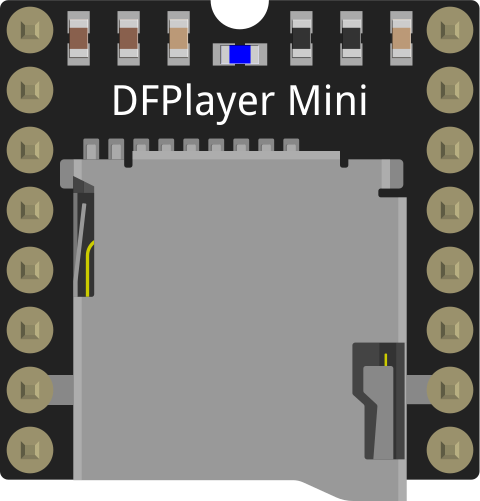

The DFRobot DFPlayer Mini is a compact and cost-effective MP3 player module designed for embedded audio applications. It can play audio files directly from a micro SD card and features a built-in amplifier, making it suitable for standalone or microcontroller-based projects. The module supports various audio formats, including MP3, WAV, and WMA, and offers multiple control modes such as serial communication, AD key control, and GPIO control.

• Voice prompts in IoT devices
• Audio playback in interactive installations
• Alarm systems with custom sound effects
• Educational projects and DIY audio systems
• Embedded systems requiring pre-recorded audio

• Operating Voltage: 3.2V to 5.0V
• Operating Current: 20mA to 30mA
• Audio Formats Supported: MP3, WAV, WMA
• Storage Medium: Micro SD card (up to 32GB, FAT16/FAT32 format)
• Output Modes:
  • DAC output for external amplifier
  • Built-in 3W mono amplifier for direct speaker connection
• Control Modes:
  • Serial communication (UART)
  • AD key control
  • GPIO control
• Sampling Rate: 8kHz to 48kHz
• Dimensions: 22mm x 20mm x 3.3mm

The DFPlayer Mini has 16 pins, but not all are required for basic operation. Below is the pinout:

1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and GND to ground.
2. Speaker Connection: For direct speaker output, connect a small 3W speaker to SPK_1 and SPK_2. For external amplification, use DAC_L and DAC_R.
3. Microcontroller Interface: Connect the RX and TX pins to the UART pins of a microcontroller (e.g., Arduino UNO).
4. Micro SD Card Preparation:
   • Format the card as FAT16 or FAT32.
   • Store audio files in the root directory or folders. File names should be numeric (e.g., 0001.mp3, 0002.mp3).
5. Control Mode: Use serial commands, GPIO, or AD key inputs to control playback.

• Use a decoupling capacitor (e.g., 100µF) between VCC and GND to stabilize the power supply.
• Avoid connecting both the speaker and DAC outputs simultaneously to prevent damage.
• Ensure the micro SD card is properly formatted and files are named correctly.
• Use a logic level shifter if interfacing with a 3.3V microcontroller to avoid damaging the module.

Below is an example of how to control the DFPlayer Mini using an Arduino UNO:

#include "SoftwareSerial.h"

// Define RX and TX pins for SoftwareSerial
SoftwareSerial mySerial(10, 11); // RX = Pin 10, TX = Pin 11

void setup() {
  mySerial.begin(9600); // Initialize SoftwareSerial at 9600 baud
  Serial.begin(9600);   // Initialize Serial Monitor for debugging

  // Send initialization commands to DFPlayer Mini
  sendCommand(0x3F, 0, 0); // Reset the module
  delay(1000);             // Wait for the module to reset
  sendCommand(0x06, 0, 15); // Set volume to 15 (range: 0-30)
}

void loop() {
  // Play the first audio file (0001.mp3)
  sendCommand(0x03, 0, 1); // Play track 1
  delay(5000);             // Wait for 5 seconds

  // Pause playback
  sendCommand(0x0E, 0, 0); // Pause
  delay(2000);             // Wait for 2 seconds

  // Resume playback
  sendCommand(0x0D, 0, 0); // Resume
  delay(5000);             // Wait for 5 seconds
}

// Function to send commands to DFPlayer Mini
void sendCommand(uint8_t command, uint8_t param1, uint8_t param2) {
  uint16_t checksum = 0xFFFF - (0xFF + 0x06 + command + param1 + param2) + 1;

  // Construct the command packet
  uint8_t packet[] = {
    0x7E,        // Start byte
    0xFF,        // Version
    0x06,        // Length
    command,     // Command
    0x00, param1, // Parameter 1
    param2,      // Parameter 2
    (uint8_t)(checksum >> 8), // Checksum high byte
    (uint8_t)(checksum & 0xFF), // Checksum low byte
    0xEF         // End byte
  };

  // Send the packet to the DFPlayer Mini
  for (uint8_t i = 0; i < sizeof(packet); i++) {
    mySerial.write(packet[i]);
  }
}

1. No Sound Output:

   • Ensure the speaker is properly connected to SPK_1 and SPK_2.
   • Verify that the audio file format is supported (MP3, WAV, or WMA).
   • Check the micro SD card for proper formatting (FAT16/FAT32) and file naming.

2. Module Not Responding:

   • Confirm that the RX and TX pins are correctly connected to the microcontroller.
   • Check the power supply voltage (3.2V to 5.0V).
   • Use a logic level shifter if interfacing with a 3.3V microcontroller.

3. Playback Stops Unexpectedly:

   • Ensure the micro SD card is securely inserted.
   • Check for corrupted audio files or a damaged micro SD card.

4. Distorted Audio:

   • Verify that the speaker impedance matches the module's specifications.
   • Avoid exceeding the maximum volume level (30).

• Can I use a USB drive instead of a micro SD card? No, the DFPlayer Mini does not support USB drives for audio playback.

• What is the maximum speaker power supported? The built-in amplifier supports up to 3W speakers.

• Can I control the module without a microcontroller? Yes, you can use AD key control or GPIO pins for basic functionality.
