How to Use Relay5V 4channel: Examples, Pinouts, and Specs

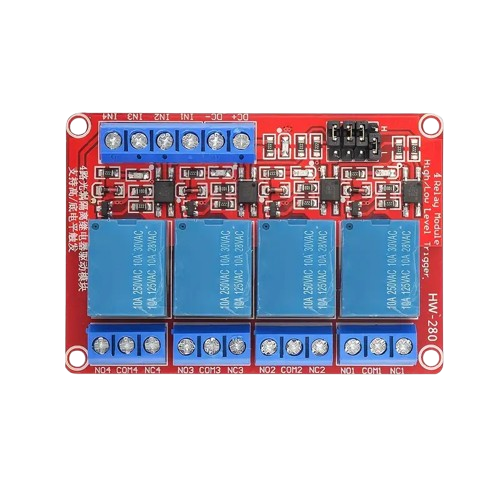

The Relay5V 4Channel module is a versatile electronic component designed to control high-voltage devices using low-voltage signals from a microcontroller. This module features four independent relays, each capable of switching devices such as lights, fans, or appliances. Operating at 5V, it is compatible with most microcontrollers, including Arduino, Raspberry Pi, and other development boards.

• Home automation systems (e.g., controlling lights, fans, or appliances)
• Industrial automation for switching high-power devices
• Robotics and IoT projects requiring control of multiple devices
• Smart energy management systems

• Operating Voltage: 5V DC
• Trigger Voltage: 3.3V to 5V (logic level compatible)
• Relay Type: Electromechanical
• Maximum Load (per channel):
  • AC: 250V at 10A
  • DC: 30V at 10A
• Number of Channels: 4
• Isolation: Optocoupler isolation for each channel
• Indicator LEDs: One LED per channel to indicate relay status
• Dimensions: Approximately 75mm x 55mm x 20mm

1. Power the Module:
   • Connect the VCC pin to a 5V power supply and the GND pin to ground.
2. Connect Control Signals:
   • Connect the IN1, IN2, IN3, and IN4 pins to the digital output pins of your microcontroller.
   • Ensure the microcontroller shares a common ground with the relay module.
3. Connect the Load:
   • For each relay, connect the device you want to control to the COM and NO (Normally Open) or NC (Normally Closed) terminals, depending on your application.
   • Use NO if you want the device to be off by default and turn on when the relay is activated.
   • Use NC if you want the device to be on by default and turn off when the relay is activated.
4. Control the Relays:
   • Send a HIGH signal (5V) to the corresponding IN pin to activate the relay and switch the connected load.

• Power Supply: Ensure the power supply can provide sufficient current for the relays. Each relay may draw up to 70mA when activated.
• Isolation: The module includes optocouplers for isolation, but ensure proper grounding to avoid electrical noise.
• High Voltage Safety: When switching high-voltage loads, take necessary precautions to avoid electric shock or damage to the module.
• Flyback Diodes: If controlling inductive loads (e.g., motors), use flyback diodes to protect the relays from voltage spikes.

// Example code to control a 4-channel relay module with an Arduino UNO
// Connect IN1, IN2, IN3, and IN4 to Arduino digital pins 2, 3, 4, and 5 respectively.

#define RELAY1 2  // Define pin for Relay 1
#define RELAY2 3  // Define pin for Relay 2
#define RELAY3 4  // Define pin for Relay 3
#define RELAY4 5  // Define pin for Relay 4

void setup() {
  // Set relay pins as outputs
  pinMode(RELAY1, OUTPUT);
  pinMode(RELAY2, OUTPUT);
  pinMode(RELAY3, OUTPUT);
  pinMode(RELAY4, OUTPUT);

  // Initialize all relays to OFF state
  digitalWrite(RELAY1, LOW);
  digitalWrite(RELAY2, LOW);
  digitalWrite(RELAY3, LOW);
  digitalWrite(RELAY4, LOW);
}

void loop() {
  // Example sequence to activate relays one by one
  digitalWrite(RELAY1, HIGH); // Turn on Relay 1
  delay(1000);                // Wait for 1 second
  digitalWrite(RELAY1, LOW);  // Turn off Relay 1

  digitalWrite(RELAY2, HIGH); // Turn on Relay 2
  delay(1000);                // Wait for 1 second
  digitalWrite(RELAY2, LOW);  // Turn off Relay 2

  digitalWrite(RELAY3, HIGH); // Turn on Relay 3
  delay(1000);                // Wait for 1 second
  digitalWrite(RELAY3, LOW);  // Turn off Relay 3

  digitalWrite(RELAY4, HIGH); // Turn on Relay 4
  delay(1000);                // Wait for 1 second
  digitalWrite(RELAY4, LOW);  // Turn off Relay 4
}

1. Relays Not Activating:

   • Ensure the module is powered with a stable 5V supply.
   • Verify that the control signals from the microcontroller are at the correct voltage level (3.3V or 5V).
   • Check the wiring for loose connections.

2. Load Not Switching:

   • Confirm that the load is properly connected to the relay terminals (COM, NO, or NC).
   • Ensure the load does not exceed the relay's maximum current and voltage ratings.

3. Module Overheating:

   • Avoid exceeding the maximum current rating of 10A per channel.
   • Use proper heat dissipation techniques if switching high-power loads.

4. Electrical Noise or Interference:

   • Use a common ground between the relay module and the microcontroller.
   • Add capacitors or snubber circuits to reduce noise when switching inductive loads.

Q: Can I use this module with a 3.3V microcontroller like ESP32?
A: Yes, the module is compatible with 3.3V logic levels, but ensure the VCC pin is powered with 5V.

Q: Can I control AC and DC loads simultaneously?
A: Yes, as long as each relay's load does not exceed its maximum ratings.

Q: Do I need external transistors to drive the relays?
A: No, the module includes built-in driver circuitry and optocouplers for isolation.
