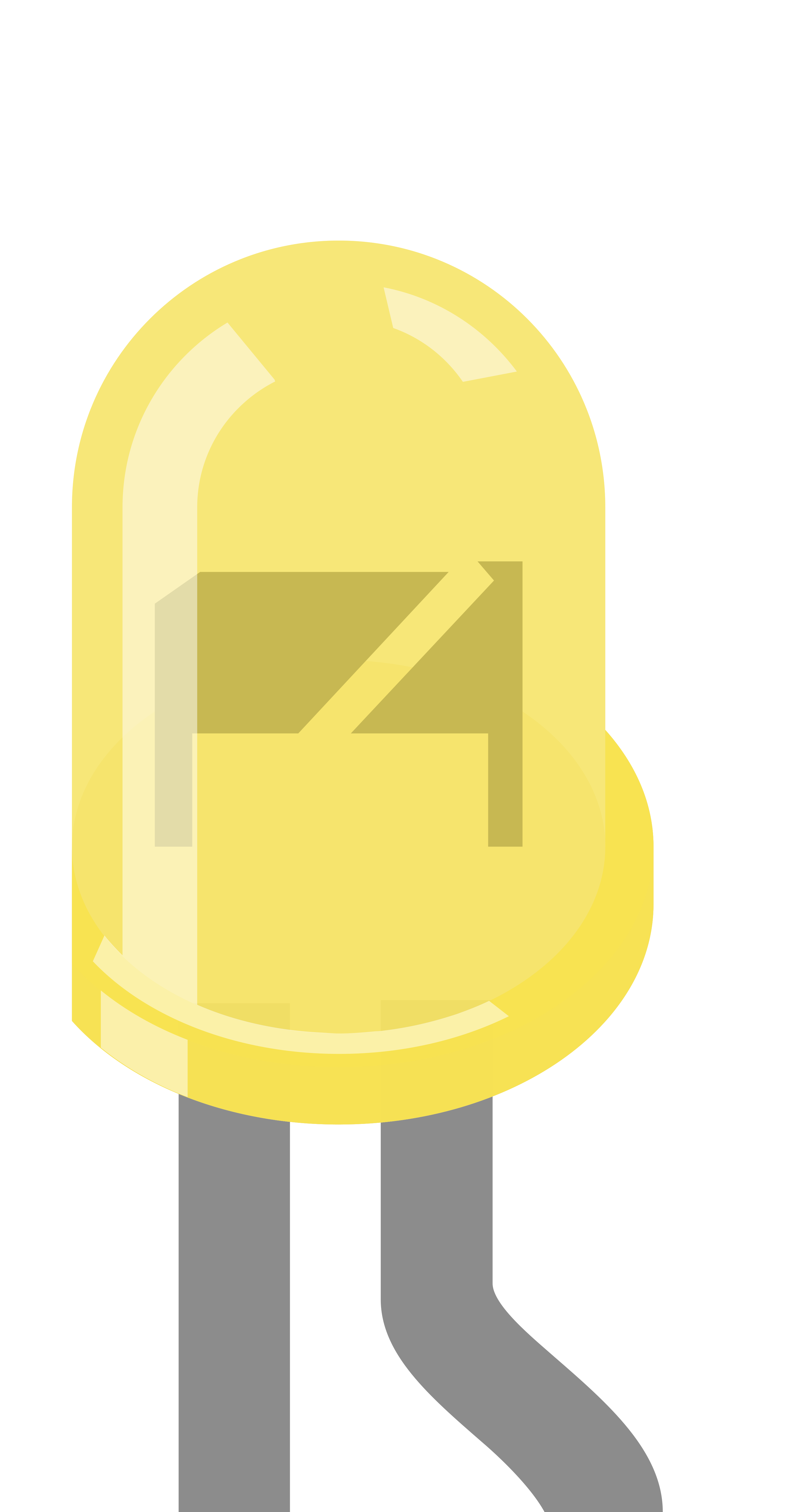

A yellow light-emitting diode (LED) is a semiconductor device that emits yellow light when an electric current flows through it. This two-pin LED is widely used in electronic circuits for status indication, visual signaling, and decorative lighting. Its compact size, low power consumption, and long lifespan make it a versatile component in various applications.
Explore Projects Built with LED: Two Pin (yellow)
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
This circuit uses an ESP8266 NodeMCU microcontroller to control two LEDs, one green and one yellow. The green LED is connected to pin D1, and the yellow LED is connected to pin D2, with both LEDs sharing a common ground with the microcontroller.
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.
The circuit features a Raspberry Pi 4B microcontroller used to independently control three LEDs (green, red, and yellow) through GPIO pins, with each LED having a series resistor for current limiting. The common cathode configuration for the LEDs allows for simple on/off control signaling or status indication.
Below are the key technical details for the yellow two-pin LED:
Parameter
Value
Forward Voltage (Vf)
2.0V - 2.2V
Forward Current (If)
20mA (typical)
Maximum Current (Imax)
30mA
Wavelength
590nm (yellow light)
Viewing Angle
20° - 30°
Power Dissipation
60mW (maximum)
Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +100°C
Pin Configuration
The yellow LED has two pins, as described below:
Pin
Description
Anode (+)
The longer pin, connected to the positive terminal.
Cathode (-)
The shorter pin, connected to the negative terminal.
Note: The flat edge on the LED casing corresponds to the cathode (-) pin.
Usage Instructions
How to Use the LED in a Circuit
Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. The resistor value can be calculated using Ohm's Law:
[
R = \frac{V_{supply} - V_f}{I_f}
]
Where:
( V_{supply} ) is the supply voltage
( V_f ) is the forward voltage of the LED (2.0V - 2.2V)
( I_f ) is the desired forward current (typically 20mA)
For example, with a 5V supply:
[
R = \frac{5V - 2.1V}{0.02A} = 145\Omega
]
Use the nearest standard resistor value, such as 150Ω.
Connect the LED:
Connect the anode (+) to the positive terminal of the power supply or microcontroller pin.
Connect the cathode (-) to the resistor, and then to the ground (GND).
Test the Circuit: Power the circuit and observe the yellow light emitted by the LED.
Important Considerations
Polarity: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
Current Limiting: Always use a resistor to limit the current through the LED. Exceeding the maximum current rating can permanently damage the LED.
Brightness Control: Use pulse-width modulation (PWM) to adjust the brightness of the LED when connected to a microcontroller.
Example: Connecting to an Arduino UNO
Below is an example of how to connect and control a yellow LED using an Arduino UNO:
Circuit Setup
Connect the anode (+) of the LED to digital pin 9 on the Arduino through a 150Ω resistor.
Connect the cathode (-) of the LED to the GND pin on the Arduino.
Arduino Code
// Define the pin connected to the LED
const int ledPin = 9;
void setup() {
// Set the LED pin as an output
pinMode(ledPin, OUTPUT);
}
void loop() {
// Turn the LED on
digitalWrite(ledPin, HIGH);
delay(1000); // Wait for 1 second
// Turn the LED off
digitalWrite(ledPin, LOW);
delay(1000); // Wait for 1 second
}
Tip: Modify the delay() values to change the blinking speed of the LED.
Troubleshooting and FAQs
Common Issues
LED Does Not Light Up:
Cause: Incorrect polarity.
Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to ground.
Cause: No current-limiting resistor.
Solution: Add a resistor in series with the LED to limit the current.
LED is Dim:
Cause: Resistor value too high.
Solution: Recalculate the resistor value for the desired brightness.
LED Burns Out:
Cause: Excessive current.
Solution: Use a resistor to limit the current to 20mA or less.
Flickering LED:
Cause: Unstable power supply or loose connections.
Solution: Check the power source and ensure all connections are secure.
FAQs
Q: Can I connect the LED directly to a 3.3V or 5V power supply?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.
Q: How do I control the brightness of the LED?
A: Use PWM (Pulse Width Modulation) from a microcontroller like Arduino to adjust the brightness.
Q: Can I use this LED with a 12V power supply?
A: Yes, but you must calculate and use an appropriate resistor to limit the current.
Q: What happens if I reverse the polarity of the LED?
A: The LED will not light up, but it typically won't be damaged unless exposed to high reverse voltage.
By following this documentation, you can effectively use the yellow two-pin LED in your electronic projects!
