How to Use LCD 20x4 I2C: Examples, Pinouts, and Specs

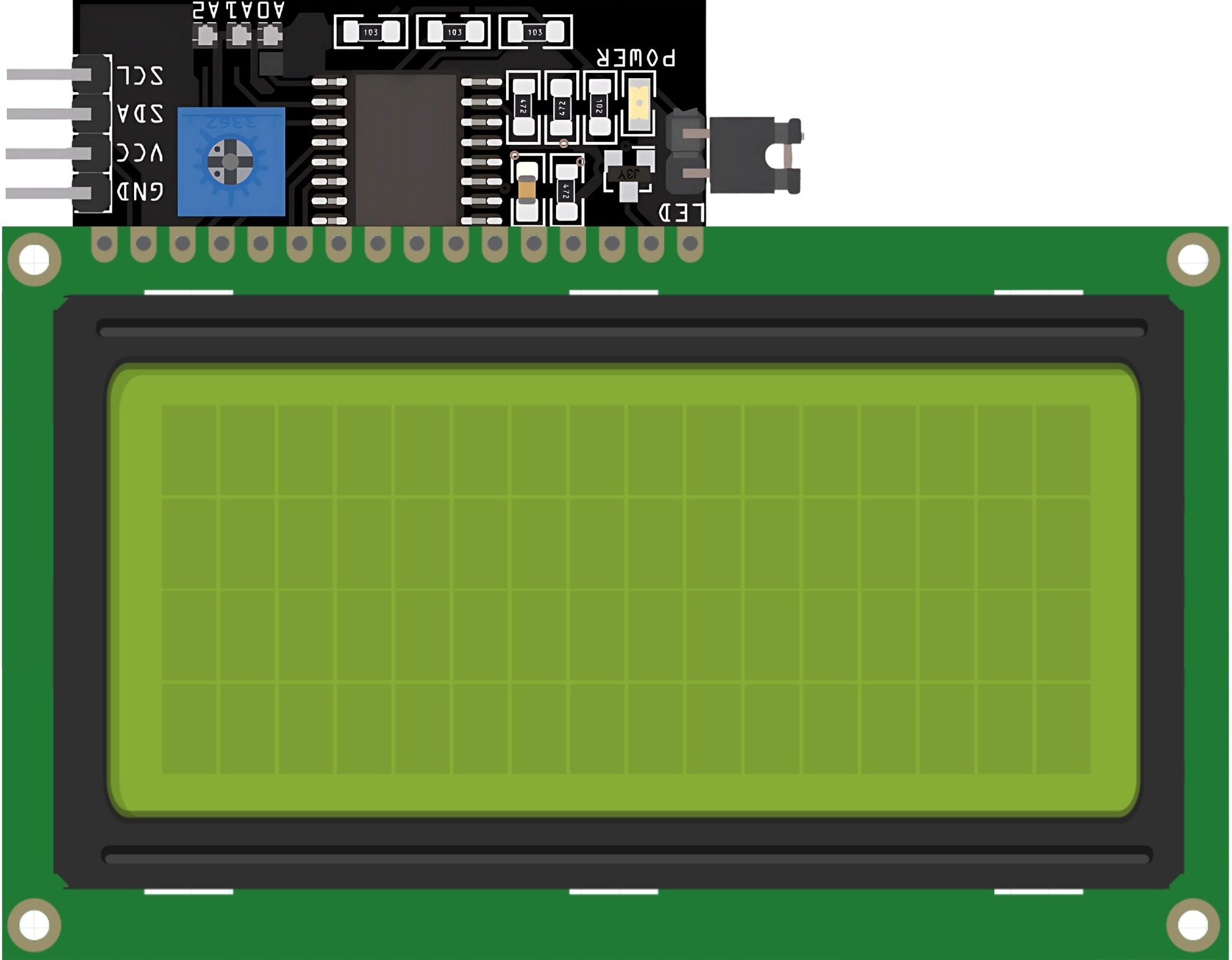

The LCD 20x4 I2C is a 20-character by 4-line Liquid Crystal Display that utilizes I2C (Inter-Integrated Circuit) communication for simplified interfacing with microcontrollers. This display module is ideal for projects requiring a compact and efficient way to display text or simple graphics. The I2C interface reduces the number of pins required for connection, making it perfect for applications with limited GPIO availability.

• Embedded systems and microcontroller projects
• Home automation displays
• Industrial control panels
• Educational and prototyping projects
• IoT devices requiring user feedback

The LCD 20x4 I2C module has a 4-pin interface for I2C communication. Below is the pinout:

1. Connect the Module:

   • Connect the GND pin to the ground of your microcontroller.
   • Connect the VCC pin to the 5V power supply of your microcontroller.
   • Connect the SDA pin to the I2C data line (e.g., A4 on Arduino UNO).
   • Connect the SCL pin to the I2C clock line (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • For Arduino, install the LiquidCrystal_I2C library via the Library Manager in the Arduino IDE.

3. Write and Upload Code:

   • Use the example code below to initialize and display text on the LCD.

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Initialize the LCD with I2C address 0x27 and 20x4 dimensions
LiquidCrystal_I2C lcd(0x27, 20, 4);

void setup() {
  lcd.init(); // Initialize the LCD
  lcd.backlight(); // Turn on the backlight

  // Display a welcome message
  lcd.setCursor(0, 0); // Set cursor to column 0, row 0
  lcd.print("Hello, World!");

  lcd.setCursor(0, 1); // Set cursor to column 0, row 1
  lcd.print("LCD 20x4 I2C");

  lcd.setCursor(0, 2); // Set cursor to column 0, row 2
  lcd.print("Line 3 Example");

  lcd.setCursor(0, 3); // Set cursor to column 0, row 3
  lcd.print("Line 4 Example");
}

void loop() {
  // No actions in the loop for this example
}

• I2C Address: Verify the I2C address of your module. Some modules may use addresses other than 0x27. Use an I2C scanner sketch to detect the correct address.
• Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunction.
• Contrast Adjustment: Use the potentiometer on the module to adjust the display contrast.
• Backlight Control: Use the lcd.backlight() and lcd.noBacklight() functions to control the backlight.

1. No Display or Flickering:

   • Ensure proper connections for GND and VCC.
   • Verify that the I2C address in the code matches the module's address.
   • Check the power supply for stability.

2. Incorrect or Garbled Characters:

   • Verify the I2C connections (SDA and SCL) are correct.
   • Ensure the correct library is installed and used in the code.

3. Backlight Not Working:

   • Check the backlight control in the code (lcd.backlight()).
   • Inspect the module for hardware damage.

4. I2C Address Not Detected:

   • Use an I2C scanner sketch to confirm the module's address.
   • Ensure the SDA and SCL lines are properly connected.

Q: Can I use the LCD 20x4 I2C with a 3.3V microcontroller?
A: Most modules require 5V for operation. However, some modules may work with 3.3V logic levels. Use a level shifter if needed.

Q: How do I display custom characters?
A: The LiquidCrystal_I2C library supports custom characters. Refer to the library documentation for details.

Q: Can I connect multiple I2C devices to the same bus?
A: Yes, as long as each device has a unique I2C address. Use an I2C multiplexer if address conflicts occur.

Q: How do I change the I2C address of the module?
A: Some modules have solder jumpers to modify the address. Refer to the module's datasheet for instructions.
