How to Use Raspberry Pi 4 Model B: Examples, Pinouts, and Specs

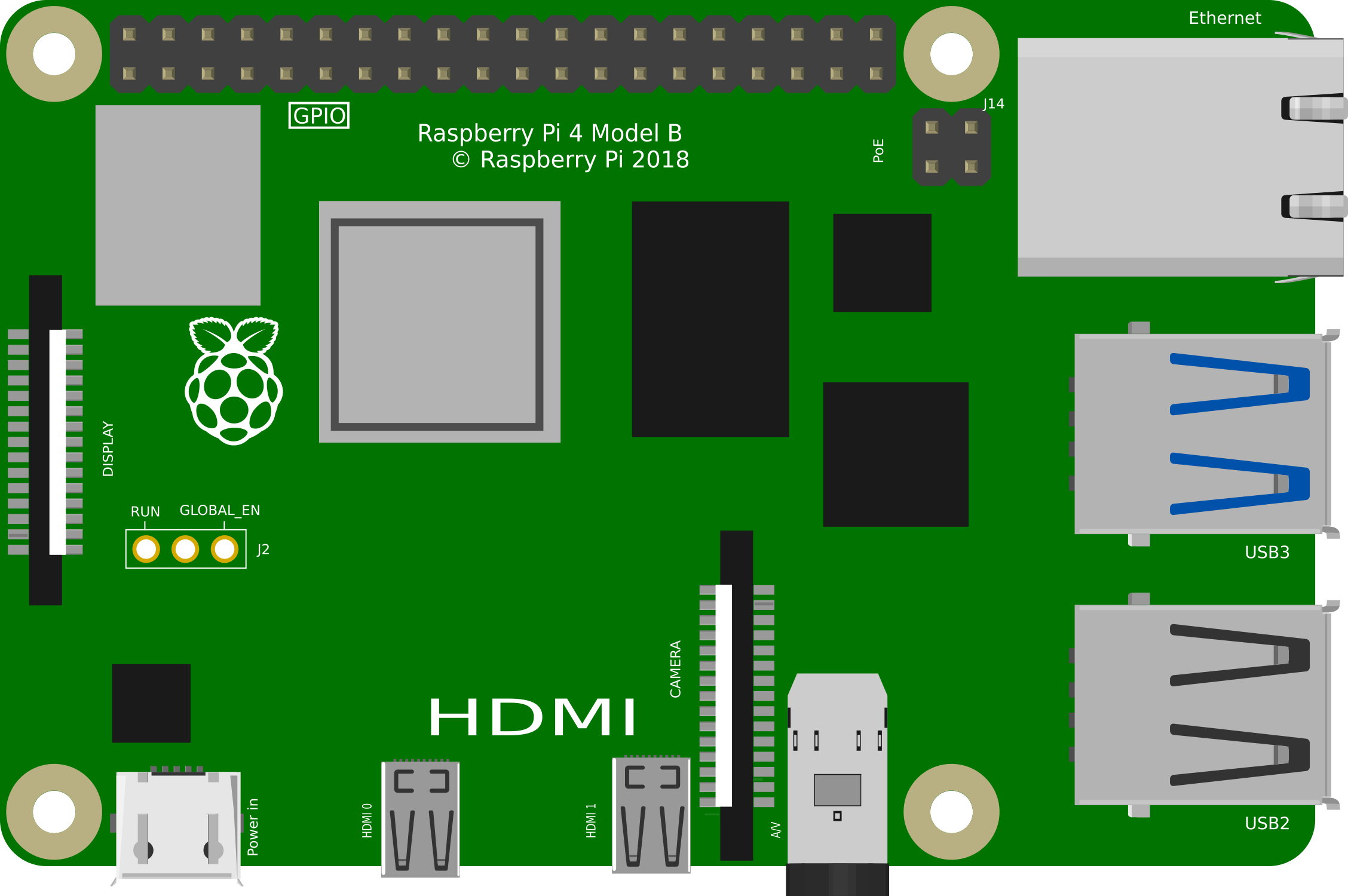

Image of Raspberry Pi 4 Model BDesign with Raspberry Pi 4 Model B in Cirkit Designer

Introduction

The Raspberry Pi 4 Model B is a compact, affordable single-board computer designed for a wide range of applications. Equipped with a powerful quad-core processor, multiple USB ports, dual HDMI outputs, and GPIO pins, it is an ideal platform for programming, robotics, IoT projects, and more. Its versatility and affordability make it a popular choice for hobbyists, educators, and professionals alike.

Explore Projects Built with Raspberry Pi 4 Model B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring: A project utilizing Raspberry Pi 4 Model B in a practical application
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring

This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.

Open Project in Cirkit Designer
Image of Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing: A project utilizing Raspberry Pi 4 Model B in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing

This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.

Open Project in Cirkit Designer
Image of Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors: A project utilizing Raspberry Pi 4 Model B in a practical application
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors

This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.

Open Project in Cirkit Designer
Image of Raspberry Pi 4B-Controlled Biometric Access System with Dual Stepper Motor Actuation: A project utilizing Raspberry Pi 4 Model B in a practical application
Raspberry Pi 4B-Controlled Biometric Access System with Dual Stepper Motor Actuation

This circuit features a Raspberry Pi 4B as the central controller, interfacing with various sensors and modules. It includes a vl53l0xv2 time-of-flight sensor and an AS5600 magnetic encoder for position sensing, both connected via I2C (SDA/SCL lines). The circuit also controls two DRV8825 stepper motor drivers connected to NEMA 17 stepper motors, receives temperature data from a DS18B20 sensor, and communicates with a fingerprint scanner for biometric input. A TM1637 display module is included for user feedback. Power management is handled by a buck converter and a 12V power supply, with the Raspberry Pi and other 3.3V components powered through the buck converter's regulated output.

Open Project in Cirkit Designer

Common Applications and Use Cases


Technical Specifications

Key Technical Details

Specification Details
Processor Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM Options 2GB, 4GB, or 8GB LPDDR4
USB Ports 2 × USB 3.0, 2 × USB 2.0
HDMI Outputs 2 × Micro HDMI (supports up to 4K resolution)
Ethernet Gigabit Ethernet
Wireless Connectivity Dual-band 802.11ac Wi-Fi, Bluetooth 5.0
GPIO Pins 40-pin header (3.3V logic, supports I2C, SPI, UART, etc.)
Power Supply 5V/3A via USB-C or GPIO header
Storage MicroSD card slot (supports booting and storage)
Dimensions 85.6mm × 56.5mm × 17mm

GPIO Pin Configuration

The Raspberry Pi 4 Model B features a 40-pin GPIO header. Below is a summary of the pin configuration:

Pin Number Pin Name Functionality
1 3.3V Power Power supply (3.3V)
2 5V Power Power supply (5V)
3 GPIO2 (SDA1) I2C Data
4 5V Power Power supply (5V)
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD0) UART Transmit
9 Ground Ground
10 GPIO15 (RXD0) UART Receive
... ... ...
39 Ground Ground
40 GPIO21 General-purpose I/O

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.


Usage Instructions

How to Use the Raspberry Pi 4 Model B in a Circuit

  1. Powering the Raspberry Pi:

    • Use a 5V/3A USB-C power adapter to power the board.
    • Alternatively, power it via the GPIO header (pins 2 and 6 for 5V and ground).
  2. Connecting Peripherals:

    • Attach a monitor via one of the micro HDMI ports.
    • Connect a keyboard and mouse to the USB ports.
    • Insert a microSD card with a pre-installed operating system (e.g., Raspberry Pi OS).
  3. Using GPIO Pins:

    • Use the GPIO pins to interface with sensors, LEDs, motors, and other components.
    • Libraries like RPi.GPIO or gpiozero in Python can simplify GPIO programming.

Important Considerations and Best Practices

Example: Blinking an LED with GPIO

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:

# Import necessary libraries
import RPi.GPIO as GPIO
import time

# Set up GPIO mode
GPIO.setmode(GPIO.BCM)  # Use Broadcom pin numbering
GPIO.setup(17, GPIO.OUT)  # Set GPIO pin 17 as an output

try:
    while True:
        GPIO.output(17, GPIO.HIGH)  # Turn LED on
        time.sleep(1)  # Wait for 1 second
        GPIO.output(17, GPIO.LOW)   # Turn LED off
        time.sleep(1)  # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings on exit
    GPIO.cleanup()

Note: Connect the LED's anode to GPIO pin 17 and its cathode to a resistor (330Ω recommended), which is then connected to ground.


Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi does not boot:

    • Ensure the microSD card is properly inserted and contains a valid operating system.
    • Check the power supply for sufficient voltage and current.
  2. Overheating:

    • Use a heatsink or fan to cool the board.
    • Avoid placing the Raspberry Pi in an enclosed space without ventilation.
  3. No display on the monitor:

    • Verify the HDMI cable and monitor compatibility.
    • Ensure the correct HDMI port is used (HDMI0 is the primary port).
  4. GPIO pins not working:

    • Double-check the pin connections and ensure the correct pin numbering is used in the code.
    • Verify that no other process is using the GPIO pins.

FAQs


This documentation provides a comprehensive guide to using the Raspberry Pi 4 Model B effectively. For further details, refer to the official Raspberry Pi website.
