How to Use Battery Holders: Examples, Pinouts, and Specs

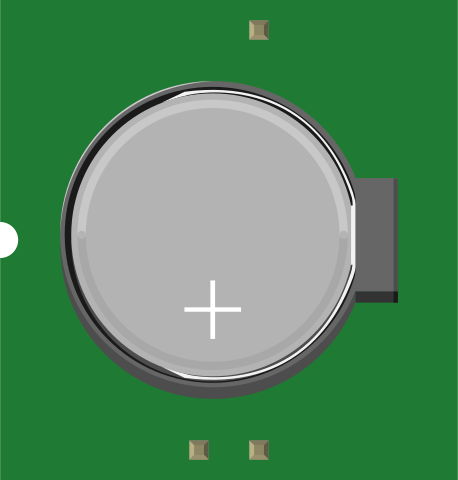

Battery holders are devices used to securely hold batteries in place within a circuit, ensuring proper electrical contact and easy replacement. They are designed to accommodate various battery sizes, such as AA, AAA, 9V, or coin cells, and are available in different configurations, including single-cell and multi-cell holders. Battery holders often include features like spring-loaded terminals or snap connectors to ensure reliable connections.

• Portable electronic devices (e.g., flashlights, remote controls)
• Prototyping and DIY electronics projects
• Robotics and small motorized systems
• Backup power supplies
• Educational kits and STEM projects

Battery holders come in a variety of designs and specifications depending on the type and number of batteries they support. Below are the general technical details:

• Supported Battery Types: AA, AAA, 9V, CR2032 (coin cell), etc.
• Material: Plastic (ABS or polycarbonate) with metal contacts (nickel-plated or stainless steel)
• Voltage Rating: Depends on the number and type of batteries used (e.g., 1.5V per AA/AAA cell)
• Current Rating: Typically up to 2A (varies by design)
• Mounting Options: PCB mount, panel mount, or free-standing
• Connector Types: Wire leads, solder tabs, or snap connectors

Battery holders do not have traditional "pins" like ICs but instead feature terminals or connectors. Below is a table describing the common terminal configurations:

1. Select the Appropriate Holder: Choose a battery holder that matches the size and number of batteries required for your circuit.
2. Insert Batteries: Place the batteries into the holder, ensuring correct polarity (match the "+" and "-" symbols).
3. Connect to Circuit:
   • For holders with wire leads, connect the red wire to the positive terminal of your circuit and the black wire to the negative terminal.
   • For PCB-mounted holders, solder the terminals to the appropriate pads on the PCB.
   • For 9V snap connectors, attach the male and female connectors to the battery and connect the wires to your circuit.
4. Secure the Holder: If necessary, use screws or adhesive to mount the holder securely in your project.

• Polarity: Always double-check the polarity of the batteries before inserting them into the holder.
• Current Rating: Ensure the holder can handle the current requirements of your circuit to avoid overheating or damage.
• Mounting: Secure the holder to prevent movement or disconnection during operation.
• Battery Replacement: Design your project to allow easy access to the holder for battery replacement.
• Short Circuits: Avoid shorting the terminals of the holder, as this can damage the batteries or the holder itself.

Below is an example of connecting a 4xAA battery holder to an Arduino UNO to power it via the VIN pin:

// Example: Powering an Arduino UNO with a 4xAA battery holder
// Ensure the total voltage from the batteries is within the Arduino's input range (7-12V).

/*
  Connect the positive wire (red) from the battery holder to the VIN pin
  on the Arduino. Connect the negative wire (black) to the GND pin.
*/

// No additional code is required for powering the Arduino.
// The Arduino will automatically use the external power source.

1. Loose Connections:

   • Problem: The batteries are not making proper contact with the terminals.
   • Solution: Check for dirt or corrosion on the terminals and clean them if necessary. Ensure the batteries are inserted correctly and securely.

2. Overheating:

   • Problem: The holder or batteries become hot during operation.
   • Solution: Verify that the current draw of your circuit does not exceed the holder's rating. Replace damaged or low-quality batteries.

3. Polarity Reversal:

   • Problem: The circuit does not work because the batteries are inserted incorrectly.
   • Solution: Double-check the polarity markings on the holder and batteries. Reinsert the batteries correctly.

4. Battery Drain:

   • Problem: Batteries discharge quickly.
   • Solution: Check for short circuits or excessive current draw in your circuit. Use fresh, high-quality batteries.

• Use a multimeter to verify the voltage output of the battery holder.
• Inspect the holder for physical damage, such as broken terminals or cracked plastic.
• If using rechargeable batteries, ensure they are fully charged and compatible with your holder.

By following these guidelines, you can ensure reliable performance and longevity for your battery holder in any application.
