How to Use Mini MP1584EN DC-DC Buck Converter: Examples, Pinouts, and Specs

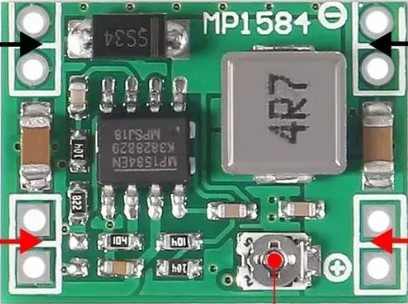

Image of Mini MP1584EN DC-DC Buck Converter
Cirkit Designer LogoDesign with Mini MP1584EN DC-DC Buck Converter in Cirkit Designer

Introduction

The Mini MP1584EN DC-DC Buck Converter is a compact, high-efficiency step-down voltage regulator designed to convert a higher input voltage to a lower output voltage. This versatile component is widely used in electronic projects to power devices requiring stable and adjustable voltage levels. Its small size and high efficiency make it ideal for applications where space and energy efficiency are critical.

Explore Projects Built with Mini MP1584EN DC-DC Buck Converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Mini MP1584EN DC-DC Buck Converter in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
Image of Autonomus Car: A project utilizing Mini MP1584EN DC-DC Buck Converter in a practical application
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Micro USB Power Supply with Buck Converter
Image of ac: A project utilizing Mini MP1584EN DC-DC Buck Converter in a practical application
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Wi-Fi Controlled DC Motor Driver with Battery Management System
Image of RC Ball: A project utilizing Mini MP1584EN DC-DC Buck Converter in a practical application
This circuit is a motor control system powered by a 3s 20A BMS and 18650 Li-ion batteries, which drives two DC Mini Metal Gear Motors using an L298N motor driver. The Arduino UNO R4 WiFi microcontroller is used to control the motor driver, and a buck converter provides regulated power to a Type-C port.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Mini MP1584EN DC-DC Buck Converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing Mini MP1584EN DC-DC Buck Converter in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Autonomus Car: A project utilizing Mini MP1584EN DC-DC Buck Converter in a practical application
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ac: A project utilizing Mini MP1584EN DC-DC Buck Converter in a practical application
AC to DC Micro USB Power Supply with Buck Converter
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RC Ball: A project utilizing Mini MP1584EN DC-DC Buck Converter in a practical application
Arduino UNO Wi-Fi Controlled DC Motor Driver with Battery Management System
This circuit is a motor control system powered by a 3s 20A BMS and 18650 Li-ion batteries, which drives two DC Mini Metal Gear Motors using an L298N motor driver. The Arduino UNO R4 WiFi microcontroller is used to control the motor driver, and a buck converter provides regulated power to a Type-C port.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers (e.g., Arduino, Raspberry Pi)
  • Battery-powered devices
  • LED drivers
  • Portable electronics
  • DIY electronics projects requiring adjustable voltage regulation

Technical Specifications

Below are the key technical details of the Mini MP1584EN DC-DC Buck Converter:

Parameter Value
Input Voltage Range 4.5V to 28V
Output Voltage Range 0.8V to 20V (adjustable via potentiometer)
Output Current Up to 3A (with proper heat dissipation)
Efficiency Up to 92%
Switching Frequency 1.5 MHz
Operating Temperature -40°C to +85°C
Dimensions 22mm x 17mm x 4mm

Pin Configuration and Descriptions

The Mini MP1584EN module has four main pins for input and output connections:

Pin Name Description
VIN Input voltage pin (connect to the power source)
GND Ground pin (common ground for input and output)
VOUT Output voltage pin (connect to the load)
ADJ Adjustment pin (connected to the onboard potentiometer for setting the output voltage)

Usage Instructions

How to Use the Mini MP1584EN in a Circuit

  1. Connect the Input Voltage:

    • Connect the VIN pin to the positive terminal of your power source.
    • Connect the GND pin to the negative terminal of your power source.
  2. Set the Output Voltage:

    • Use a small screwdriver to adjust the onboard potentiometer.
    • Turn clockwise to increase the output voltage or counterclockwise to decrease it.
    • Measure the output voltage using a multimeter connected to the VOUT and GND pins.
  3. Connect the Load:

    • Connect the VOUT pin to the positive terminal of your load.
    • Connect the GND pin to the negative terminal of your load.
  4. Verify Connections:

    • Double-check all connections to ensure proper polarity and secure wiring.

Important Considerations and Best Practices

  • Heat Dissipation: The module can handle up to 3A of current, but proper heat dissipation (e.g., a heatsink) is required for high-current applications.
  • Input Voltage: Ensure the input voltage is within the specified range (4.5V to 28V) to avoid damaging the module.
  • Output Voltage Adjustment: Always adjust the output voltage without a load connected to prevent accidental overvoltage to your device.
  • Capacitor Placement: For stable operation, ensure the onboard capacitors are intact and properly soldered.

Example: Using the Mini MP1584EN with an Arduino UNO

Below is an example of how to use the Mini MP1584EN to power an Arduino UNO with a 12V input source:

Circuit Connections

  • Connect the 12V power source to the VIN and GND pins of the Mini MP1584EN.
  • Adjust the output voltage to 5V using the potentiometer.
  • Connect the VOUT pin to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the Mini MP1584EN to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the Mini MP1584EN module

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Verify the input voltage is within the specified range and check all connections.
  2. Output Voltage Fluctuations:

    • Cause: Poor solder joints or unstable input voltage.
    • Solution: Inspect the module for loose components and ensure a stable power source.
  3. Overheating:

    • Cause: Excessive current draw or insufficient heat dissipation.
    • Solution: Reduce the load current or add a heatsink to the module.
  4. Cannot Adjust Output Voltage:

    • Cause: Faulty potentiometer or incorrect adjustment procedure.
    • Solution: Ensure the potentiometer is functional and adjust it slowly while monitoring the output voltage.

FAQs

Q1: Can I use the Mini MP1584EN to power a Raspberry Pi?
A1: Yes, but ensure the output voltage is set to 5V and the current requirement of the Raspberry Pi does not exceed 3A.

Q2: Is the module protected against reverse polarity?
A2: No, the Mini MP1584EN does not have built-in reverse polarity protection. Always double-check your connections.

Q3: Can I use this module with a battery as the input source?
A3: Yes, the module works well with batteries as long as the input voltage is within the specified range.

Q4: How do I know if the module is overheating?
A4: If the module becomes too hot to touch or the output voltage drops under load, it may be overheating. Use a heatsink or reduce the load current.

By following this documentation, you can effectively integrate the Mini MP1584EN DC-DC Buck Converter into your projects and troubleshoot common issues with ease.
