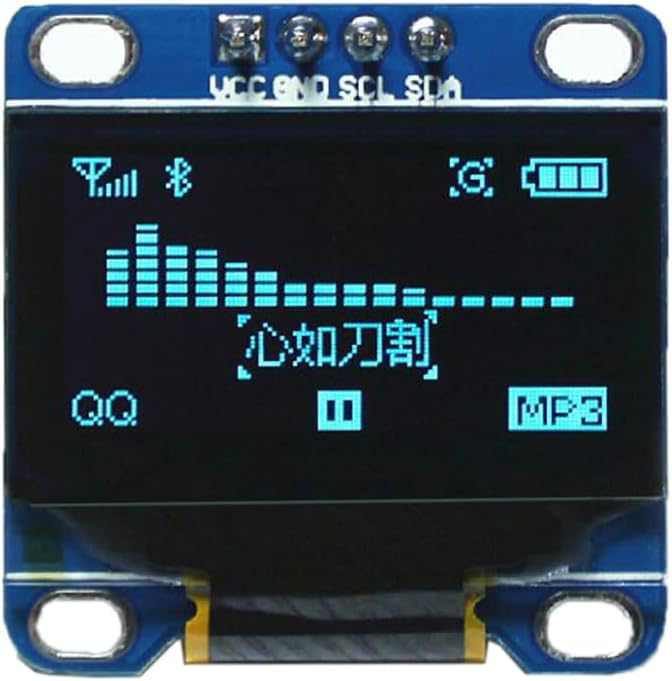

Image of SSD1306 OLED
Cirkit Designer LogoDesign with SSD1306 OLED in Cirkit Designer

Introduction

The SSD1306 OLED, manufactured by RIDEN (Part ID: SSD1306), is a versatile monochrome display driver designed for OLED screens. It is widely used in embedded systems due to its compact size, low power consumption, and high contrast display. The SSD1306 supports resolutions up to 128x64 pixels and offers communication via I2C or SPI interfaces, making it an excellent choice for microcontroller-based projects.

Explore Projects Built with SSD1306 OLED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano ESP32-Based Real-Time Clock and OLED Display System
Image of Watch: A project utilizing SSD1306 OLED  in a practical application
This circuit features an Arduino Nano ESP32 microcontroller interfaced with an SSD1306 128x64 SPI OLED display and an RTC DS3231 module. The OLED display is used for visual output, while the RTC module provides accurate timekeeping. The microcontroller coordinates the display and timekeeping functions.
Cirkit Designer LogoOpen Project in Cirkit Designer
IoT Board with 0.96" OLED Display for Real-Time Data Visualization
Image of dgd: A project utilizing SSD1306 OLED  in a practical application
This circuit connects a 0.96" OLED display to an IoT board. The OLED display is powered by the 3.3V and GND pins of the IoT board, and communicates with the board via I2C using the SDA and SCL pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled RGB LED and OLED Display with ESP8266
Image of ESP thermometer reciever: A project utilizing SSD1306 OLED  in a practical application
This circuit features an ESP8266 microcontroller interfaced with a 128x64 OLED display via I2C for visual output and an RGB LED controlled through current-limiting resistors. The ESP8266 provides power and control signals to both the display and the LED, enabling visual feedback and status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino 101 OLED Display Animation Project
Image of wokwi animater test: A project utilizing SSD1306 OLED  in a practical application
This circuit consists of an Arduino 101 microcontroller connected to a 0.96" OLED display via I2C communication. The Arduino runs a program that initializes the OLED and continuously displays an animated sequence of frames on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SSD1306 OLED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Watch: A project utilizing SSD1306 OLED  in a practical application
Arduino Nano ESP32-Based Real-Time Clock and OLED Display System
This circuit features an Arduino Nano ESP32 microcontroller interfaced with an SSD1306 128x64 SPI OLED display and an RTC DS3231 module. The OLED display is used for visual output, while the RTC module provides accurate timekeeping. The microcontroller coordinates the display and timekeeping functions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dgd: A project utilizing SSD1306 OLED  in a practical application
IoT Board with 0.96" OLED Display for Real-Time Data Visualization
This circuit connects a 0.96" OLED display to an IoT board. The OLED display is powered by the 3.3V and GND pins of the IoT board, and communicates with the board via I2C using the SDA and SCL pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP thermometer reciever: A project utilizing SSD1306 OLED  in a practical application
Wi-Fi Controlled RGB LED and OLED Display with ESP8266
This circuit features an ESP8266 microcontroller interfaced with a 128x64 OLED display via I2C for visual output and an RGB LED controlled through current-limiting resistors. The ESP8266 provides power and control signals to both the display and the LED, enabling visual feedback and status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wokwi animater test: A project utilizing SSD1306 OLED  in a practical application
Arduino 101 OLED Display Animation Project
This circuit consists of an Arduino 101 microcontroller connected to a 0.96" OLED display via I2C communication. The Arduino runs a program that initializes the OLED and continuously displays an animated sequence of frames on the screen.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Wearable devices and smartwatches
  • IoT dashboards and status displays
  • Portable instrumentation
  • Embedded system user interfaces
  • DIY electronics and hobbyist projects

Technical Specifications

Key Technical Details

Parameter Value
Manufacturer RIDEN
Part ID SSD1306
Display Type Monochrome OLED
Resolution 128x64 pixels (typical)
Communication Interface I2C or SPI
Operating Voltage 3.3V to 5V
Operating Temperature -40°C to +85°C
Power Consumption ~0.08W (typical)
Dimensions Varies by module (e.g., 0.96")

Pin Configuration and Descriptions

The SSD1306 OLED module typically has the following pin configuration:

I2C Interface Pinout

Pin Name Pin Number Description
GND 1 Ground (0V reference)
VCC 2 Power supply (3.3V or 5V)
SCL 3 Serial Clock Line for I2C communication
SDA 4 Serial Data Line for I2C communication

SPI Interface Pinout

Pin Name Pin Number Description
GND 1 Ground (0V reference)
VCC 2 Power supply (3.3V or 5V)
SCK 3 Serial Clock Line for SPI communication
MOSI 4 Master Out Slave In (data input)
CS 5 Chip Select
DC 6 Data/Command Control
RES 7 Reset

Usage Instructions

How to Use the SSD1306 OLED in a Circuit

  1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. Interface Selection: Choose between I2C or SPI communication based on your project requirements. Ensure the correct wiring for the selected interface.
  3. Pull-Up Resistors: For I2C communication, use pull-up resistors (typically 4.7kΩ) on the SCL and SDA lines.
  4. Microcontroller Connection: Connect the display to the appropriate pins on your microcontroller (e.g., Arduino UNO).
  5. Library Installation: Install an SSD1306-compatible library (e.g., Adafruit SSD1306) in your development environment.

Example Code for Arduino UNO (I2C)

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

// Define the OLED display dimensions
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64

// Create an SSD1306 display object (I2C address 0x3C is common)
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

void setup() {
  // Initialize the display
  if (!display.begin(SSD1306_I2C_ADDRESS, 0x3C)) {
    Serial.println(F("SSD1306 allocation failed"));
    for (;;); // Halt execution if initialization fails
  }

  // Clear the display buffer
  display.clearDisplay();

  // Display a welcome message
  display.setTextSize(1); // Set text size
  display.setTextColor(SSD1306_WHITE); // Set text color
  display.setCursor(0, 0); // Set cursor position
  display.println(F("Hello, SSD1306!"));
  display.display(); // Render the text on the screen
}

void loop() {
  // Add your main code here
}

Important Considerations and Best Practices

  • Voltage Compatibility: Ensure the module's operating voltage matches your microcontroller's logic level (3.3V or 5V).
  • I2C Address: The default I2C address is typically 0x3C or 0x3D. Check your module's documentation or use an I2C scanner to confirm.
  • Reset Pin: If using the RES pin, connect it to a GPIO pin or pull it high to enable the display.
  • Library Updates: Use the latest version of the SSD1306 library for optimal performance and compatibility.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Display Not Turning On:

    • Verify the power supply connections (VCC and GND).
    • Check the I2C or SPI wiring for loose or incorrect connections.
  2. No Output on the Screen:

    • Ensure the correct I2C address is specified in the code.
    • Confirm that the display dimensions (e.g., 128x64) match the module.
  3. Flickering or Artifacts:

    • Check for noise or interference on the communication lines.
    • Use shorter wires or add decoupling capacitors near the module.
  4. Library Errors:

    • Ensure the Adafruit SSD1306 and GFX libraries are installed and up to date.
    • Verify that the correct library initialization parameters are used.

FAQs

Q: Can I use the SSD1306 OLED with a Raspberry Pi?
A: Yes, the SSD1306 OLED is compatible with Raspberry Pi. Use the I2C or SPI interface and install the appropriate Python libraries (e.g., Adafruit_CircuitPython_SSD1306).

Q: What is the maximum cable length for I2C communication?
A: The maximum length depends on the pull-up resistor values and communication speed. For typical setups, keep the cable length under 1 meter to avoid signal degradation.

Q: Can I use multiple SSD1306 displays on the same I2C bus?
A: Yes, but each display must have a unique I2C address. Some modules allow address configuration via solder jumpers.

Q: How do I invert the display colors?
A: Use the invertDisplay(true) function in your code to invert the colors.

By following this documentation, you can effectively integrate the SSD1306 OLED into your projects and troubleshoot common issues with ease.
