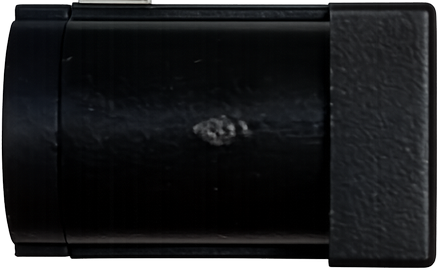

The Barrel Connector 5.5x2.5mm is a cylindrical connector widely used for DC power connections in electronic devices. It features an outer diameter of 5.5mm and an inner diameter of 2.5mm, making it compatible with a variety of power supplies and devices. This connector is commonly found in consumer electronics, such as laptops, routers, and LED lighting systems, due to its reliability and ease of use.
Explore Projects Built with Barrel connector 5.5x2.5mm
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit DesignerExplore Projects Built with Barrel connector 5.5x2.5mm
Open Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerCommon Applications and Use Cases
- Powering small electronic devices (e.g., routers, modems, and audio equipment)
- Connecting DC power supplies to development boards or DIY projects
- LED lighting systems and other low-voltage applications
- Robotics and prototyping projects
Technical Specifications
The following table outlines the key technical details of the Barrel Connector 5.5x2.5mm:
| Parameter | Specification |
|---|---|
| Outer Diameter | 5.5mm |
| Inner Diameter | 2.5mm |
| Voltage Rating | Typically up to 24V DC |
| Current Rating | Typically up to 5A |
| Connector Type | Male or Female (Plug or Jack) |
| Material | Metal (conductive parts) and plastic |
| Polarity | Center pin: Positive, Outer sleeve: Negative (common) |
Pin Configuration and Descriptions
The Barrel Connector has two main contact points:
| Pin | Description |
|---|---|
| Center Pin | Positive terminal (commonly connected to VCC) |
| Outer Sleeve | Negative terminal (commonly connected to GND) |
Note: Always verify the polarity of your power supply and device before connecting to avoid damage.
Usage Instructions
How to Use the Barrel Connector in a Circuit
- Identify Polarity: Confirm the polarity of the power supply and the device. Most devices use the center pin as positive and the outer sleeve as negative, but this is not universal.
- Soldering the Connector:
- For a male connector (plug), solder the positive wire to the center pin and the negative wire to the outer sleeve.
- For a female connector (jack), ensure the corresponding terminals are connected to the correct polarity.
- Connect to the Device: Insert the male connector into the female jack of the device. Ensure a snug fit for a reliable connection.
- Test the Connection: Use a multimeter to verify the voltage and polarity before powering the device.
Important Considerations and Best Practices
- Polarity Check: Always double-check the polarity of the power supply and device to prevent damage.
- Current Rating: Ensure the connector can handle the current required by your device. Exceeding the current rating may cause overheating or failure.
- Secure Connections: Use heat shrink tubing or electrical tape to insulate soldered connections and prevent short circuits.
- Avoid Overvoltage: Ensure the voltage supplied does not exceed the device's maximum rating.
Example: Connecting to an Arduino UNO
The Barrel Connector 5.5x2.5mm can be used to power an Arduino UNO via its DC power jack. Below is an example of how to connect it:
- Use a 9V or 12V DC power adapter with a 5.5x2.5mm male barrel connector.
- Plug the connector into the Arduino UNO's DC power jack.
- Ensure the adapter's polarity matches the Arduino's requirements (center positive).
If you are using a custom power supply, you can solder wires to a 5.5x2.5mm male connector and connect it to the Arduino UNO as described above.
Troubleshooting and FAQs
Common Issues Users Might Face
Loose Connection:
- Cause: The connector may not fit snugly into the jack.
- Solution: Ensure the connector dimensions match the jack. Replace the connector if it is worn out.
Incorrect Polarity:
- Cause: The power supply's polarity does not match the device's requirements.
- Solution: Use a multimeter to verify polarity before connecting. Reverse the wires if necessary.
Overheating:
- Cause: The current exceeds the connector's rating.
- Solution: Use a connector rated for higher current or reduce the load on the power supply.
No Power to Device:
- Cause: Poor soldering or broken wires.
- Solution: Inspect the solder joints and wires for continuity. Resolder if needed.
FAQs
Q: Can I use a 5.5x2.5mm connector with a 5.5x2.1mm jack?
A: While the outer diameter is the same, the inner diameter differs. A 5.5x2.5mm male connector may not make proper contact with a 5.5x2.1mm female jack, leading to unreliable connections.
Q: How do I determine the polarity of an unknown power adapter?
A: Use a multimeter to measure the voltage between the center pin and the outer sleeve. The center pin is positive if the multimeter shows a positive voltage.
Q: Can this connector handle AC power?
A: No, the Barrel Connector 5.5x2.5mm is designed for DC power applications only. Using it with AC power may damage the connector or the connected device.
Q: What is the maximum cable length I can use with this connector?
A: The maximum cable length depends on the current draw and wire gauge. Longer cables with thin wires may result in voltage drops. Use thicker wires for longer distances.
