How to Use MPU6050: Examples, Pinouts, and Specs

The MPU6050 is a versatile and powerful 6-axis motion tracking device that combines a 3-axis gyroscope, 3-axis accelerometer, and a temperature sensor. This microelectromechanical system (MEMS) is widely used in various applications, including drones, robotics, gaming devices, and virtual reality systems, to detect and measure motion, orientation, and acceleration.

• Gyroscope Range: ±250, ±500, ±1000, ±2000 degrees/sec
• Accelerometer Range: ±2g, ±4g, ±8g, ±16g
• Supply Voltage: 2.3V to 3.4V
• Digital Output: I2C
• Built-in 16-bit Analog to Digital Converters
• Built-in Digital Motion Processor™ (DMP)
• Operating Temperature Range: -40°C to +85°C

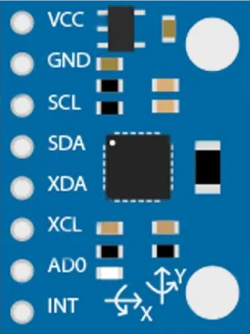

1. Connect the VCC pin to a 3.3V supply from your microcontroller board.
2. Connect the GND pin to the ground of your microcontroller board.
3. Connect the SCL and SDA pins to the I2C clock and data lines on your microcontroller.
4. If using the auxiliary I2C bus, connect XDA and XCL to the respective lines.
5. The AD0 pin can be used to change the I2C address if multiple devices are used.
6. The INT pin can be connected to an interrupt pin on your microcontroller to handle motion detection interrupts.

• Use pull-up resistors on the I2C lines (typically 4.7kΩ to 10kΩ).
• Ensure that the power supply is stable and within the specified voltage range.
• When using multiple MPU6050s, make sure to set different I2C addresses by configuring the AD0 pin.

#include <Wire.h>

// MPU6050 I2C address (AD0 pin low is 0x68, high is 0x69)
const int MPU_ADDR = 0x68;

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication at 9600 baud
  Wire.beginTransmission(MPU_ADDR);
  Wire.write(0x6B); // Write to the power management register
  Wire.write(0); // Set to zero to wake the MPU6050
  Wire.endTransmission(true);
}

void loop() {
  Wire.beginTransmission(MPU_ADDR);
  Wire.write(0x3B); // Start with register 0x3B (ACCEL_XOUT_H)
  Wire.endTransmission(false);
  Wire.requestFrom(MPU_ADDR, 14, true); // Request 14 registers

  // Read accelerometer and gyroscope values
  int16_t accX = Wire.read() << 8 | Wire.read();
  int16_t accY = Wire.read() << 8 | Wire.read();
  int16_t accZ = Wire.read() << 8 | Wire.read();
  int16_t temp = Wire.read() << 8 | Wire.read();
  int16_t gyroX = Wire.read() << 8 | Wire.read();
  int16_t gyroY = Wire.read() << 8 | Wire.read();
  int16_t gyroZ = Wire.read() << 8 | Wire.read();

  // Print out the values
  Serial.print("Accelerometer: ");
  Serial.print("X = "); Serial.print(accX);
  Serial.print(" | Y = "); Serial.print(accY);
  Serial.print(" | Z = "); Serial.println(accZ);

  Serial.print("Gyroscope: ");
  Serial.print("X = "); Serial.print(gyroX);
  Serial.print(" | Y = "); Serial.print(gyroY);
  Serial.print(" | Z = "); Serial.println(gyroZ);

  Serial.print("Temperature: ");
  Serial.println(temp / 340.00 + 36.53); // Calculate and print temperature

  delay(1000); // Delay for readability
}

• No data from the sensor: Ensure that the I2C connections are correct and that the MPU6050 is powered.
• Inaccurate readings: Calibrate the sensor by taking multiple readings at a known orientation and adjusting the offsets.
• I2C communication errors: Check for proper pull-up resistors and that no other device on the bus is causing conflicts.

Q: How do I change the I2C address of the MPU6050? A: The I2C address can be changed by altering the logic level of the AD0 pin. If AD0 is low (connected to GND), the address is 0x68. If high (connected to VCC), the address is 0x69.

Q: Can the MPU6050 be used with a 5V microcontroller? A: Yes, but a level shifter is recommended for the I2C lines, and the VCC should be supplied with 3.3V.

Q: How can I reduce noise in the sensor readings? A: Implementing a digital low-pass filter or a complementary filter can help reduce noise. Additionally, ensure the MPU6050 is mounted securely without vibrations.

This documentation provides a comprehensive guide to integrating and using the MPU6050 sensor with an Arduino UNO. For further assistance or advanced applications, refer to the manufacturer's datasheet and additional resources.
