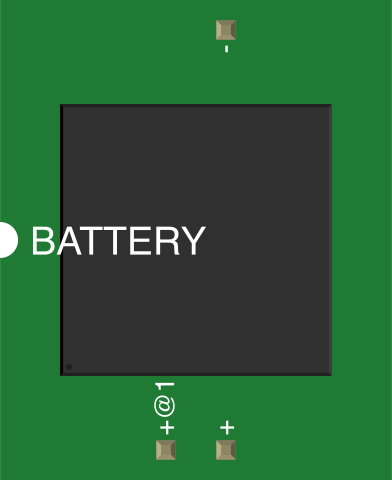

How to Use Battery Holders: Examples, Pinouts, and Specs

Battery holders are devices used to securely hold batteries in place within a circuit, ensuring proper electrical contact and easy replacement. They are designed to accommodate various battery sizes, such as AA, AAA, 9V, or coin cells, and are available in different configurations, including single-cell and multi-cell holders. Battery holders are essential for portable electronic devices, DIY projects, and prototyping, as they provide a reliable and reusable power source connection.

• Portable electronic devices (e.g., flashlights, remote controls)
• DIY electronics and prototyping
• Robotics and small motorized projects
• Educational kits and STEM projects
• Backup power systems

• Material: Typically made of plastic (ABS or polycarbonate) with metal contacts (nickel-plated or stainless steel).
• Voltage Rating: Depends on the battery type (e.g., 1.5V for AA/AAA, 9V for 9V batteries).
• Current Rating: Varies based on the battery and application, typically up to 2A for standard holders.
• Mounting Options: Panel mount, PCB mount, or free-standing.
• Battery Sizes Supported: AA, AAA, 9V, CR2032 (coin cell), and others.

Battery holders do not have traditional pins like ICs but instead feature terminals or leads for electrical connections. Below is a table describing the typical connections:

1. Select the Appropriate Holder: Choose a battery holder that matches the size and type of battery required for your circuit (e.g., AA, AAA, 9V, or coin cell).
2. Insert the Battery: Place the battery into the holder, ensuring correct polarity. The "+" terminal of the battery should align with the "+" marking on the holder.
3. Connect to the Circuit:
   • For holders with leads, connect the red wire to the positive terminal of your circuit and the black wire to the negative terminal.
   • For PCB-mounted holders, solder the pins to the appropriate pads on the PCB.
4. Secure the Holder: If necessary, use screws, adhesive, or clips to secure the holder to your project enclosure or PCB.

• Polarity: Always double-check the polarity of the battery before inserting it into the holder to avoid damage to your circuit.
• Current Rating: Ensure the battery holder can handle the current requirements of your circuit.
• Mounting: Secure the holder properly to prevent movement or disconnection during operation.
• Contact Quality: Periodically check the metal contacts for corrosion or dirt, which can affect electrical conductivity.
• Battery Replacement: Use holders with easy access for applications requiring frequent battery replacement.

Below is an example of using a 4xAA battery holder (6V output) to power an Arduino UNO:

/* Example: Powering an Arduino UNO with a 4xAA Battery Holder
   Ensure the battery holder provides the correct voltage (6V in this case).
   Connect the positive lead of the holder to the Arduino's VIN pin and the
   negative lead to the GND pin. */

// No code is required for this setup, as the battery holder directly powers
// the Arduino. Simply connect the leads as described above.

1. No Power to the Circuit:

   • Cause: Incorrect battery polarity or loose connections.
   • Solution: Verify the battery is inserted correctly and check all connections.

2. Intermittent Power Loss:

   • Cause: Poor contact between the battery and holder terminals.
   • Solution: Clean the terminals with isopropyl alcohol and ensure the battery is seated firmly.

3. Overheating:

   • Cause: Excessive current draw or short circuit.
   • Solution: Check the circuit for shorts and ensure the current draw is within the holder's rating.

4. Corrosion on Terminals:

   • Cause: Battery leakage or environmental factors.
   • Solution: Clean the terminals with a mild abrasive or replace the holder if necessary.

• Q: Can I use a battery holder for rechargeable batteries?

  • A: Yes, as long as the holder matches the size and type of the rechargeable batteries.

• Q: How do I know if a battery holder is compatible with my project?

  • A: Check the voltage and current requirements of your project and ensure the holder supports the appropriate battery type.

• Q: Can I connect multiple battery holders in series or parallel?

  • A: Yes, you can connect holders in series to increase voltage or in parallel to increase capacity. Ensure proper wiring and polarity.

• Q: What should I do if the battery holder breaks?

  • A: Replace the holder, as damaged holders may not provide reliable connections.

By following this documentation, you can effectively use battery holders in your electronic projects and ensure reliable performance.
