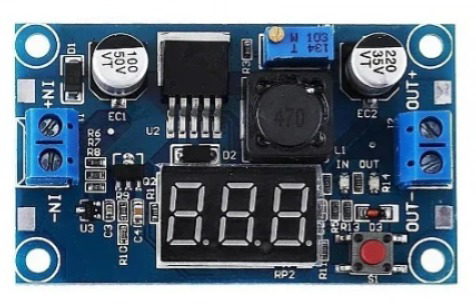

Image of stepdown 24v to 5v
Cirkit Designer LogoDesign with stepdown 24v to 5v in Cirkit Designer

Introduction

A stepdown converter, also known as a buck converter, reduces the voltage from 24 volts to 5 volts, allowing for efficient power supply to devices that require a lower voltage. This component is widely used in power management systems, enabling compatibility between high-voltage power sources and low-voltage electronic devices. Its compact design and high efficiency make it ideal for applications such as powering microcontrollers, sensors, and other low-voltage modules.

Explore Projects Built with stepdown 24v to 5v

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
24V to 5V Power Supply Using 7805 and Bridge Rectifier
Image of evs transmitter: A project utilizing stepdown 24v to 5v in a practical application
This circuit converts a 220V AC input to a regulated 5V DC output. It uses a power transformer to step down the voltage to 24V AC, which is then rectified by a bridge rectifier and regulated by a 7805 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
24V to 5V Power Supply with 7805 Voltage Regulator and Bridge Rectifier
Image of convert AC to DC: A project utilizing stepdown 24v to 5v in a practical application
This circuit converts 220V AC to 5V DC using a power transformer, a bridge rectifier, and a 7805 voltage regulator. The transformer steps down the voltage to 24V AC, which is then rectified to DC by the bridge rectifier. The 7805 regulator further stabilizes the output to 5V DC, with additional filtering provided by capacitors and a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Array with Push Switch Control and Voltage Regulation
Image of Transformer safty device complete: A project utilizing stepdown 24v to 5v in a practical application
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing stepdown 24v to 5v in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with stepdown 24v to 5v

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of evs transmitter: A project utilizing stepdown 24v to 5v in a practical application
24V to 5V Power Supply Using 7805 and Bridge Rectifier
This circuit converts a 220V AC input to a regulated 5V DC output. It uses a power transformer to step down the voltage to 24V AC, which is then rectified by a bridge rectifier and regulated by a 7805 voltage regulator.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of convert AC to DC: A project utilizing stepdown 24v to 5v in a practical application
24V to 5V Power Supply with 7805 Voltage Regulator and Bridge Rectifier
This circuit converts 220V AC to 5V DC using a power transformer, a bridge rectifier, and a 7805 voltage regulator. The transformer steps down the voltage to 24V AC, which is then rectified to DC by the bridge rectifier. The 7805 regulator further stabilizes the output to 5V DC, with additional filtering provided by capacitors and a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Transformer safty device complete: A project utilizing stepdown 24v to 5v in a practical application
LED Array with Push Switch Control and Voltage Regulation
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing stepdown 24v to 5v in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers like Arduino, Raspberry Pi, and ESP32
  • Supplying power to sensors and modules in IoT systems
  • Battery-powered devices requiring voltage regulation
  • Automotive electronics for stepping down 24V vehicle power to 5V
  • Industrial control systems and robotics

Technical Specifications

The stepdown 24V to 5V converter is designed to provide stable and efficient voltage regulation. Below are its key specifications:

Parameter Value
Input Voltage Range 6V to 24V
Output Voltage 5V ± 0.1V
Maximum Output Current 3A (varies by model)
Efficiency Up to 95%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions Typically 22mm x 17mm x 4mm

Pin Configuration

The stepdown converter typically has the following pin configuration:

Pin Name Description
VIN Input voltage pin (connect to 6V-24V power source)
GND Ground pin (common ground for input and output)
VOUT Output voltage pin (provides regulated 5V output)
EN (optional) Enable pin (used to turn the converter on/off)

Usage Instructions

How to Use the Stepdown Converter in a Circuit

  1. Connect the Input Voltage:

    • Connect the VIN pin to a power source with a voltage between 6V and 24V.
    • Ensure the power source can supply sufficient current for your load.
  2. Connect the Ground:

    • Connect the GND pin to the ground of your circuit. This serves as the common ground for both input and output.
  3. Connect the Output Voltage:

    • Connect the VOUT pin to the device or circuit requiring 5V power.
    • Verify that the load does not exceed the maximum output current rating of the converter.
  4. Optional Enable Pin:

    • If the converter has an EN pin, connect it to a logic HIGH (e.g., 3.3V or 5V) to enable the converter.
    • Pull it LOW or leave it unconnected to disable the converter.

Important Considerations

  • Heat Dissipation: If the converter is operating near its maximum current rating, ensure proper ventilation or use a heatsink to prevent overheating.
  • Input Voltage Range: Do not exceed the specified input voltage range (6V-24V) to avoid damaging the converter.
  • Output Filtering: For sensitive applications, consider adding a capacitor (e.g., 100µF) across the output to reduce noise.
  • Polarity Protection: Ensure correct polarity when connecting the input voltage to avoid damaging the module.

Example: Using with Arduino UNO

To power an Arduino UNO with a 24V power source, follow these steps:

  1. Connect the VIN pin of the stepdown converter to the 24V power source.
  2. Connect the GND pin of the converter to the ground of the power source.
  3. Connect the VOUT pin of the converter to the 5V pin of the Arduino UNO.
  4. Connect the GND pin of the converter to the GND pin of the Arduino UNO.

Here is an example Arduino sketch to blink an LED, powered by the stepdown converter:

// This sketch blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the Arduino is powered via the stepdown converter providing 5V.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Input voltage is not connected or is below the minimum required voltage.
    • Solution: Verify the input voltage is within the 6V-24V range and properly connected.
  2. Overheating:

    • Cause: Excessive load current or poor ventilation.
    • Solution: Reduce the load current or improve airflow around the converter. Use a heatsink if necessary.
  3. Output Voltage Fluctuations:

    • Cause: Insufficient input power or high noise in the circuit.
    • Solution: Ensure the input power source can supply sufficient current. Add capacitors (e.g., 100µF) to the input and output for filtering.
  4. Device Not Powering On:

    • Cause: EN pin is not connected or is pulled LOW.
    • Solution: Connect the EN pin to a logic HIGH (e.g., 3.3V or 5V) to enable the converter.

FAQs

Q: Can I use this converter to power a Raspberry Pi?
A: Yes, but ensure the converter can supply at least 2.5A for stable operation of the Raspberry Pi.

Q: What happens if I exceed the input voltage range?
A: Exceeding the input voltage range can permanently damage the converter. Always stay within the specified range.

Q: Can I use this converter with a battery?
A: Yes, as long as the battery voltage is within the 6V-24V range. Ensure the battery can supply sufficient current for your load.

Q: Is the output voltage adjustable?
A: Some models of stepdown converters have a potentiometer for adjusting the output voltage. Check your specific model for this feature.

By following these guidelines and best practices, you can effectively use the stepdown 24V to 5V converter in your projects.
