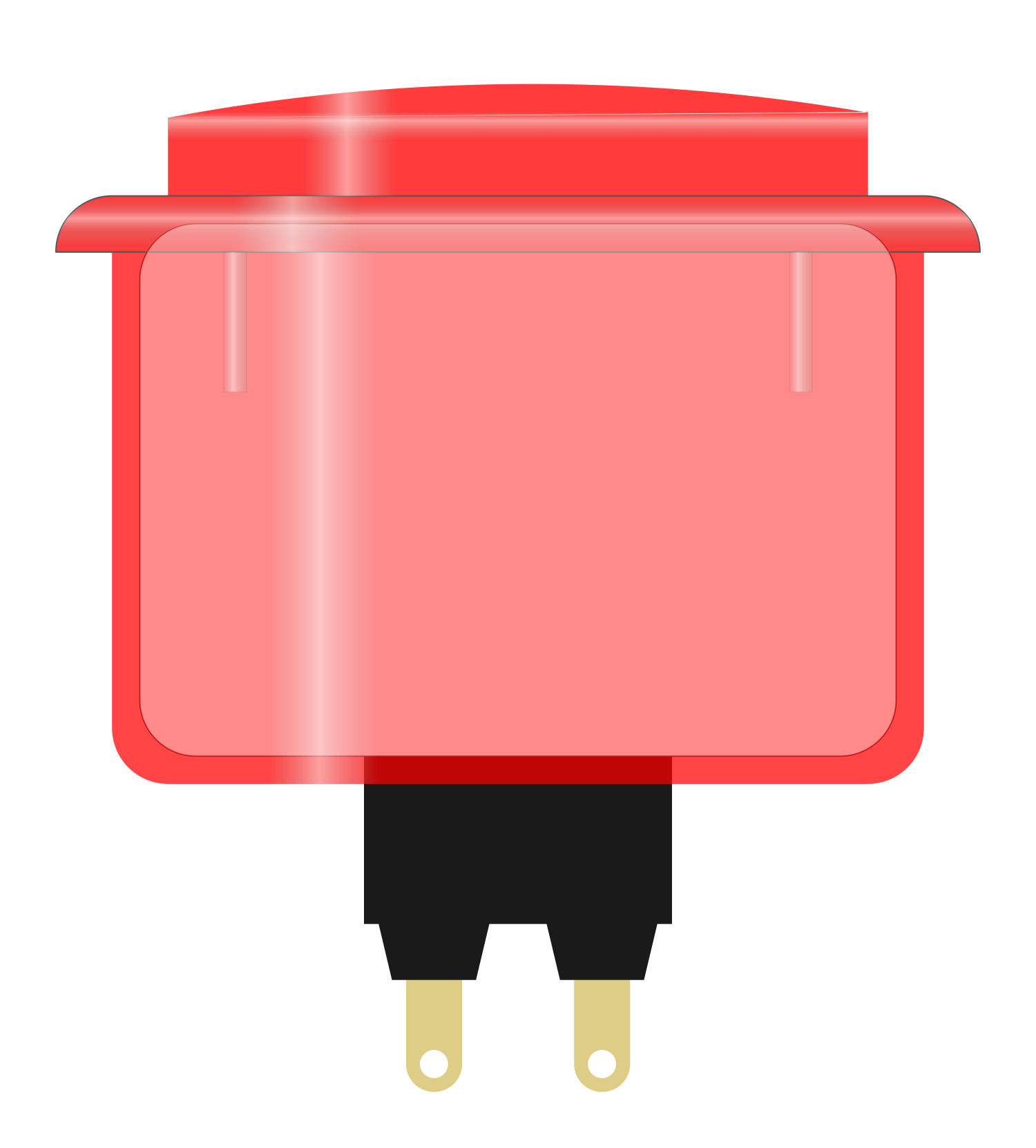

Image of Arcade Button (red)Design with Arcade Button (red) in Cirkit Designer

Introduction

The Arcade Button (Red) is a large, durable push button designed for high-frequency use in arcade machines and similar applications. Its bright red color ensures easy visibility, while its tactile response provides satisfying feedback during operation. This button is commonly used in gaming consoles, interactive kiosks, DIY electronics projects, and control panels. Its robust design makes it ideal for projects requiring repeated user interaction.

Explore Projects Built with Arcade Button (red)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino UNO Controlled RGB LED Strip with Interactive Button: A project utilizing Arcade Button (red) in a practical application
Arduino UNO Controlled RGB LED Strip with Interactive Button

This circuit features an Arduino UNO connected to a WS2812 RGB LED strip, controlled via digital pin D8. An arcade button is interfaced with the Arduino through a resistor and digital pin D3, likely for user input to control the LED strip. Power is supplied through a 2.1mm DC barrel jack, with an electrolytic capacitor for voltage smoothing, and the ground connections are shared among the components.

Open Project in Cirkit Designer
Image of Arduino Nano Based GPS Tracker with GSM Module and Panic Buttons: A project utilizing Arcade Button (red) in a practical application
Arduino Nano Based GPS Tracker with GSM Module and Panic Buttons

This circuit features an Arduino Nano interfaced with a GPS NEO 6M module for location tracking and a SIM800L GSM module for cellular communication. The Arduino is programmed to send an SMS with GPS coordinates when a yellow arcade button is pressed, and it can also initiate a call. The circuit is powered by a Polymer Lithium Ion Battery, and pull-up resistors are connected to the arcade buttons to ensure stable input signals to the Arduino.

Open Project in Cirkit Designer

Technical Specifications

Pin Configuration and Descriptions

The Arcade Button (Red) typically has two terminals for connection:

Pin Label Description
1 NO (Normally Open) Connects to the circuit when the button is pressed, completing the circuit.
2 COM (Common) Common terminal for the button, typically connected to ground or power source.

Usage Instructions

How to Use the Arcade Button in a Circuit

  1. Mounting the Button:
    • Drill a 28mm hole in your panel or enclosure.
    • Insert the button into the hole and secure it using the included mounting nut.
  2. Wiring the Button:
    • Connect the COM terminal to the ground or power source of your circuit.
    • Connect the NO terminal to the input pin of your microcontroller or the load you wish to control.
  3. Testing the Button:
    • Power on your circuit and press the button. The circuit should complete when the button is pressed, triggering the desired action.

Important Considerations and Best Practices

Example: Connecting the Arcade Button to an Arduino UNO

Below is an example of how to connect and use the Arcade Button with an Arduino UNO:

Circuit Setup

Arduino Code

// Arcade Button Example with Arduino UNO
// This code reads the state of the button and turns on an LED when pressed.

const int buttonPin = 2;  // Pin connected to the NO terminal of the button
const int ledPin = 13;    // Pin connected to the onboard LED

void setup() {
  pinMode(buttonPin, INPUT_PULLUP); // Set button pin as input with internal pull-up resistor
  pinMode(ledPin, OUTPUT);          // Set LED pin as output
}

void loop() {
  int buttonState = digitalRead(buttonPin); // Read the button state

  if (buttonState == LOW) { // Button is pressed (LOW due to pull-up resistor)
    digitalWrite(ledPin, HIGH); // Turn on the LED
  } else {
    digitalWrite(ledPin, LOW);  // Turn off the LED
  }
}

Note: The INPUT_PULLUP mode is used to simplify the circuit by eliminating the need for an external pull-up resistor.

Troubleshooting and FAQs

Common Issues

  1. Button Not Responding:

    • Cause: Loose or incorrect wiring.
    • Solution: Verify that the connections to the COM and NO terminals are secure and correctly wired.
  2. Button Produces Erratic Behavior:

    • Cause: Button bounce (mechanical noise).
    • Solution: Implement a debounce mechanism in your code or use a capacitor across the terminals to filter noise.
  3. Button Feels Stiff or Stuck:

    • Cause: Dirt or debris inside the button mechanism.
    • Solution: Clean the button with compressed air or a soft brush. Avoid using liquids.
  4. Button Works Intermittently:

    • Cause: Worn-out contacts or excessive use.
    • Solution: Replace the button if it has exceeded its rated mechanical durability.

FAQs

By following this documentation, you can effectively integrate the Arcade Button (Red) into your projects and troubleshoot any issues that arise.
