How to Use BMS 4S 20A: Examples, Pinouts, and Specs

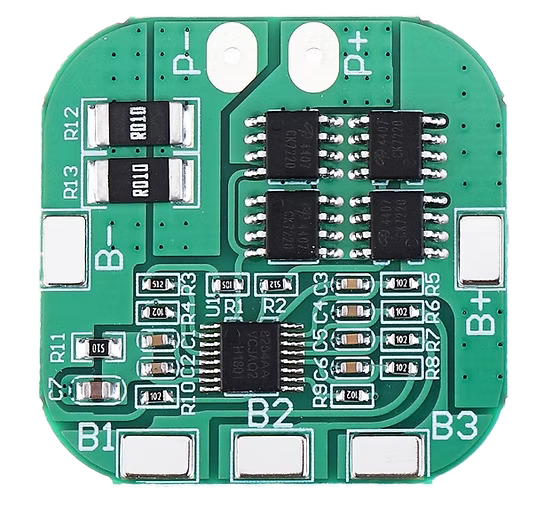

The BMS 4S 20A by Stas (Manufacturer Part ID: 1) is a Battery Management System designed for managing 4 series-connected lithium-ion cells. It ensures safe operation by monitoring the voltage and temperature of each cell, balancing the cells during charging and discharging, and protecting the battery pack from overcharging, over-discharging, and overcurrent conditions. This component is ideal for applications requiring a reliable and efficient power management solution.

• Electric bicycles and scooters
• Portable power banks
• Solar energy storage systems
• Uninterruptible Power Supplies (UPS)
• Robotics and DIY battery packs

The BMS 4S 20A has a set of input and output connections for battery cells, charging, and load. Below is the pin configuration:

1. Wiring the Battery Pack:

   • Connect the negative terminal of the battery pack to the B- pin.
   • Connect the positive terminal of the first cell to the B1 pin.
   • Connect the positive terminal of the second cell to the B2 pin.
   • Connect the positive terminal of the third cell to the B3 pin.
   • Connect the positive terminal of the fourth cell to the B+ pin.

2. Connecting the Load and Charger:

   • Connect the negative terminal of the load/charger to the P- pin.
   • Connect the positive terminal of the load/charger to the P+ pin.

3. Powering On:

   • Ensure all connections are secure and properly insulated.
   • Turn on the charger or load to activate the BMS.

• Cell Matching: Use cells with similar capacities and internal resistances to ensure proper balancing.
• Heat Dissipation: Ensure adequate ventilation or heat sinking if the BMS operates near its maximum current rating.
• Voltage Monitoring: Periodically check the voltage of each cell to verify proper operation.
• Avoid Overloading: Do not exceed the 20A maximum current rating to prevent damage to the BMS.

The BMS 4S 20A can be monitored using an Arduino UNO by measuring the voltage of each cell. Below is an example code snippet for reading cell voltages using analog inputs:

// Define analog input pins for each cell
const int cell1Pin = A0; // Cell 1 voltage
const int cell2Pin = A1; // Cell 2 voltage
const int cell3Pin = A2; // Cell 3 voltage
const int cell4Pin = A3; // Cell 4 voltage

// Voltage divider resistors (adjust based on your circuit)
const float resistor1 = 10000.0; // 10k ohms
const float resistor2 = 10000.0; // 10k ohms

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read analog values and convert to voltage
  float cell1Voltage = analogRead(cell1Pin) * (5.0 / 1023.0) * ((resistor1 + resistor2) / resistor2);
  float cell2Voltage = analogRead(cell2Pin) * (5.0 / 1023.0) * ((resistor1 + resistor2) / resistor2);
  float cell3Voltage = analogRead(cell3Pin) * (5.0 / 1023.0) * ((resistor1 + resistor2) / resistor2);
  float cell4Voltage = analogRead(cell4Pin) * (5.0 / 1023.0) * ((resistor1 + resistor2) / resistor2);

  // Print cell voltages to the Serial Monitor
  Serial.print("Cell 1 Voltage: ");
  Serial.println(cell1Voltage);
  Serial.print("Cell 2 Voltage: ");
  Serial.println(cell2Voltage);
  Serial.print("Cell 3 Voltage: ");
  Serial.println(cell3Voltage);
  Serial.print("Cell 4 Voltage: ");
  Serial.println(cell4Voltage);

  delay(1000); // Wait 1 second before the next reading
}

1. BMS Not Powering On:

   • Cause: Incorrect wiring or loose connections.
   • Solution: Double-check all connections, especially the battery terminals.

2. Cells Not Balancing:

   • Cause: Significant mismatch in cell capacities or internal resistances.
   • Solution: Replace mismatched cells with ones of similar specifications.

3. Overheating:

   • Cause: Operating near or above the maximum current rating.
   • Solution: Reduce the load current or improve heat dissipation.

4. Load Not Receiving Power:

   • Cause: Overdischarge protection has been triggered.
   • Solution: Recharge the battery pack to reset the BMS.

• Q: Can this BMS be used with LiFePO4 batteries?
  A: No, this BMS is specifically designed for lithium-ion cells and may not support the voltage range of LiFePO4 batteries.

• Q: What happens if one cell is disconnected?
  A: The BMS will detect an abnormal voltage and disable the output to protect the battery pack.

• Q: Can I use this BMS for a 3S battery pack?
  A: No, this BMS is designed for 4 series-connected cells. Using it with fewer cells may result in improper operation.

• Q: How do I know if the BMS is balancing the cells?
  A: Measure the voltage of each cell. If the voltages are equalizing during charging, the BMS is balancing the cells.
