How to Use LCD1602: Examples, Pinouts, and Specs

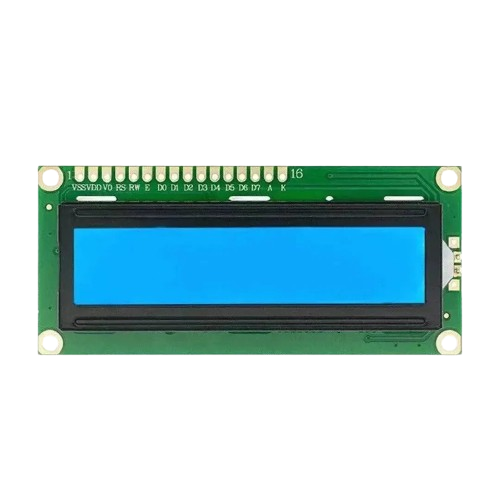

Image of LCD1602
Cirkit Designer LogoDesign with LCD1602 in Cirkit Designer

Introduction

The LCD1602 is a 16x2 character liquid crystal display module manufactured by Arduino. It is capable of displaying 16 characters per line across 2 lines, making it ideal for text-based outputs in embedded systems. The module uses a parallel communication protocol to interface with microcontrollers, allowing for efficient data transfer and control.

Explore Projects Built with LCD1602

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Leonardo Controlled LCD Display with I2C Interface
Image of ert: A project utilizing LCD1602 in a practical application
This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Leonardo Controlled I2C LCD Display for Text Scrolling
Image of final year project: A project utilizing LCD1602 in a practical application
This circuit features an Arduino Leonardo microcontroller connected to a 16x2 I2C LCD screen, powered by a 5V battery. The Arduino is programmed to display and continuously scroll a message on the LCD. The I2C communication protocol is used for the microcontroller to interface with the LCD, utilizing the SDA and SCL connections for data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled TCS3200 Color Sensor with I2C LCD Display
Image of CeledonioT3: A project utilizing LCD1602 in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a TCS3200 color sensor and an I2C LCD 16x2 display. The TCS3200 color sensor's output is connected to the Arduino's digital pin D12, and its frequency scaling pins (S0-S3) are connected to digital pins D8-D11 for configuration. The LCD display communicates with the Arduino via the I2C protocol, using A4 (SDA) and A5 (SCL) for data transfer, allowing the system to display color readings or other information from the sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled 16x2 I2C LCD Display
Image of I2C LCD Display Simulation Demo: A project utilizing LCD1602 in a practical application
This circuit features an Arduino UNO microcontroller connected to a 16x2 I2C LCD display. The Arduino controls the LCD to display the message 'Hello, World!' upon initialization, utilizing I2C communication for efficient data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LCD1602

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ert: A project utilizing LCD1602 in a practical application
Arduino Leonardo Controlled LCD Display with I2C Interface
This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of final year project: A project utilizing LCD1602 in a practical application
Arduino Leonardo Controlled I2C LCD Display for Text Scrolling
This circuit features an Arduino Leonardo microcontroller connected to a 16x2 I2C LCD screen, powered by a 5V battery. The Arduino is programmed to display and continuously scroll a message on the LCD. The I2C communication protocol is used for the microcontroller to interface with the LCD, utilizing the SDA and SCL connections for data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CeledonioT3: A project utilizing LCD1602 in a practical application
Arduino UNO Controlled TCS3200 Color Sensor with I2C LCD Display
This circuit features an Arduino UNO microcontroller interfaced with a TCS3200 color sensor and an I2C LCD 16x2 display. The TCS3200 color sensor's output is connected to the Arduino's digital pin D12, and its frequency scaling pins (S0-S3) are connected to digital pins D8-D11 for configuration. The LCD display communicates with the Arduino via the I2C protocol, using A4 (SDA) and A5 (SCL) for data transfer, allowing the system to display color readings or other information from the sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of I2C LCD Display Simulation Demo: A project utilizing LCD1602 in a practical application
Arduino UNO Controlled 16x2 I2C LCD Display
This circuit features an Arduino UNO microcontroller connected to a 16x2 I2C LCD display. The Arduino controls the LCD to display the message 'Hello, World!' upon initialization, utilizing I2C communication for efficient data transfer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Displaying sensor data in real-time
  • User interfaces for embedded systems
  • Menu navigation in microcontroller-based projects
  • Educational and prototyping purposes
  • Simple text-based notifications or messages

Technical Specifications

The following table outlines the key technical details of the LCD1602 module:

Parameter Value
Manufacturer Arduino
Part ID LCD1602
Display Type Character LCD
Display Size 16x2 (16 characters x 2 lines)
Operating Voltage 4.7V - 5.3V
Operating Current 1mA (without backlight)
Backlight Current ~120mA
Communication Protocol Parallel (4-bit or 8-bit)
Character Size 5x8 dot matrix
Operating Temperature -20°C to 70°C

Pin Configuration and Descriptions

The LCD1602 module has 16 pins, as described in the table below:

Pin Number Pin Name Description
1 VSS Ground (0V) connection
2 VDD Power supply (4.7V - 5.3V)
3 VO Contrast adjustment (connect to a potentiometer for contrast control)
4 RS Register Select: 0 = Command, 1 = Data
5 RW Read/Write: 0 = Write, 1 = Read
6 E Enable: Starts data read/write operation
7 D0 Data Bit 0 (used in 8-bit mode only)
8 D1 Data Bit 1 (used in 8-bit mode only)
9 D2 Data Bit 2 (used in 8-bit mode only)
10 D3 Data Bit 3 (used in 8-bit mode only)
11 D4 Data Bit 4 (used in 4-bit or 8-bit mode)
12 D5 Data Bit 5 (used in 4-bit or 8-bit mode)
13 D6 Data Bit 6 (used in 4-bit or 8-bit mode)
14 D7 Data Bit 7 (used in 4-bit or 8-bit mode)
15 A (Anode) Backlight LED positive terminal (connect to 5V via a resistor)
16 K (Cathode) Backlight LED negative terminal (connect to GND)

Usage Instructions

How to Use the LCD1602 in a Circuit

  1. Power Supply: Connect the VSS pin to GND and the VDD pin to a 5V power source.
  2. Contrast Adjustment: Connect the VO pin to the middle terminal of a 10kΩ potentiometer. Connect the other two terminals of the potentiometer to VDD and GND.
  3. Data Pins: Use either 4-bit or 8-bit mode for communication:
    • For 4-bit mode, connect D4-D7 to the microcontroller and leave D0-D3 unconnected.
    • For 8-bit mode, connect all data pins (D0-D7) to the microcontroller.
  4. Control Pins: Connect RS, RW, and E to the microcontroller. Set RW to GND for write-only mode.
  5. Backlight: Connect the A pin to 5V through a 220Ω resistor and the K pin to GND.
  6. Microcontroller Interface: Use a library (e.g., Arduino LiquidCrystal library) to send commands and data to the LCD.

Important Considerations and Best Practices

  • Always use a current-limiting resistor for the backlight to prevent damage.
  • Use a potentiometer to adjust the contrast for optimal visibility.
  • Ensure proper grounding to avoid noise or flickering issues.
  • For 4-bit mode, send data in two 4-bit chunks to save microcontroller pins.

Example Code for Arduino UNO

Below is an example of how to use the LCD1602 with an Arduino UNO in 4-bit mode:

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
// RS, E, D4, D5, D6, D7
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(16, 2);

  // Print a message to the LCD
  lcd.print("Hello, World!");
}

void loop() {
  // Move the cursor to the second line
  lcd.setCursor(0, 1);

  // Print a dynamic message
  lcd.print("Count: ");
  lcd.print(millis() / 1000); // Display elapsed time in seconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Display on the Screen

    • Cause: Incorrect contrast setting.
    • Solution: Adjust the potentiometer connected to the VO pin.
  2. Flickering or Unstable Display

    • Cause: Poor grounding or unstable power supply.
    • Solution: Ensure all ground connections are secure and use a decoupling capacitor near the power pins.
  3. Backlight Not Working

    • Cause: Missing or incorrect resistor for the backlight.
    • Solution: Use a 220Ω resistor between the A pin and 5V.
  4. Incorrect Characters Displayed

    • Cause: Data transmission errors.
    • Solution: Verify the connections for the data and control pins.

FAQs

  • Q: Can I use the LCD1602 with a 3.3V microcontroller?

    • A: Yes, but you will need a level shifter or resistor divider for the data and control pins.
  • Q: How do I clear the display?

    • A: Use the lcd.clear() function in the Arduino LiquidCrystal library.
  • Q: Can I use the LCD1602 without a backlight?

    • A: Yes, the display will still function, but visibility may be reduced in low-light conditions.
  • Q: What is the maximum cable length for connecting the LCD1602?

    • A: Keep the cable length as short as possible (preferably under 30cm) to avoid signal degradation.
