Introduction

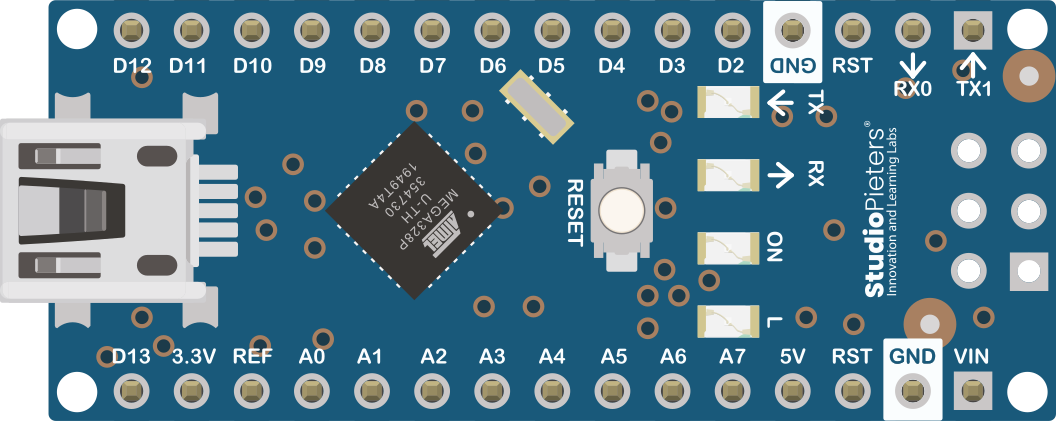

The NANO is a compact microcontroller board based on the ATmega328P, designed for small-scale projects and prototyping. It offers a USB interface for easy programming and is highly versatile due to its small size and robust functionality. The NANO is widely used in embedded systems, IoT devices, robotics, and educational projects.

Explore Projects Built with NANO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Wireless Input Controller with Joysticks and Sensors
Image of TRANSMITTER: A project utilizing NANO in a practical application
This is a multifunctional interactive device featuring dual-axis control via PS2 joysticks, visual feedback through an OLED display, and wireless communication using an NRF24L01 module. It includes a piezo buzzer for sound, tactile buttons for additional user input, rotary potentiometers for analog control, and an MPU-6050 for motion sensing. The Arduino Nano serves as the central processing unit, coordinating input and output functions, with capacitors for power stability.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Controlled Obstacle Avoidance Robot with IR and Ultrasonic Sensors
Image of LFOA Circuit Diagram: A project utilizing NANO in a practical application
This is a robotic control system featuring an Arduino Nano that interfaces with two IR sensors, an ultrasonic sensor, and a servomotor for various sensing and actuation tasks. It controls two DC gear motors through an L298N motor driver, all powered by a 12V battery. The system's functionality is determined by the embedded code running on the Arduino Nano, which manages sensor inputs and actuator outputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Smart Sensor System with RS485 Communication and RGB LED Control
Image of NanoSlave: A project utilizing NANO in a practical application
This circuit features an Arduino Nano that interfaces with various sensors and modules, including an RS485 communication module, a WS2812 RGB LED strip, an HC-SR04 ultrasonic sensor, and an SW-420 vibration sensor. The Arduino Nano processes sensor data and controls the LED strip, while also managing communication via RS485 and logging events with a real-time clock (RTC) module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
Image of RTC for Keyboard: A project utilizing NANO in a practical application
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with NANO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of TRANSMITTER: A project utilizing NANO in a practical application
Arduino Nano-Based Wireless Input Controller with Joysticks and Sensors
This is a multifunctional interactive device featuring dual-axis control via PS2 joysticks, visual feedback through an OLED display, and wireless communication using an NRF24L01 module. It includes a piezo buzzer for sound, tactile buttons for additional user input, rotary potentiometers for analog control, and an MPU-6050 for motion sensing. The Arduino Nano serves as the central processing unit, coordinating input and output functions, with capacitors for power stability.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LFOA Circuit Diagram: A project utilizing NANO in a practical application
Arduino Nano-Controlled Obstacle Avoidance Robot with IR and Ultrasonic Sensors
This is a robotic control system featuring an Arduino Nano that interfaces with two IR sensors, an ultrasonic sensor, and a servomotor for various sensing and actuation tasks. It controls two DC gear motors through an L298N motor driver, all powered by a 12V battery. The system's functionality is determined by the embedded code running on the Arduino Nano, which manages sensor inputs and actuator outputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of NanoSlave: A project utilizing NANO in a practical application
Arduino Nano-Based Smart Sensor System with RS485 Communication and RGB LED Control
This circuit features an Arduino Nano that interfaces with various sensors and modules, including an RS485 communication module, a WS2812 RGB LED strip, an HC-SR04 ultrasonic sensor, and an SW-420 vibration sensor. The Arduino Nano processes sensor data and controls the LED strip, while also managing communication via RS485 and logging events with a real-time clock (RTC) module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RTC for Keyboard: A project utilizing NANO in a practical application
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Prototyping small electronic circuits
  • IoT (Internet of Things) devices
  • Robotics and automation
  • Wearable electronics
  • Educational tools for learning microcontrollers and programming

Technical Specifications

The NANO is equipped with the ATmega328P microcontroller and features a range of input/output pins, communication protocols, and power options.

Key Technical Details:

Specification Value
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 18 x 45 mm

Pin Configuration and Descriptions:

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
GND Ground pins (multiple available).
5V Regulated 5V output from the onboard regulator.
3.3V 3.3V output (limited to 50 mA).
A0-A7 Analog input pins (10-bit resolution).
D0-D13 Digital I/O pins (D3, D5, D6, D9, D10, D11 support PWM).
TX (D1) Transmit pin for serial communication.
RX (D0) Receive pin for serial communication.
RESET Resets the microcontroller.
ICSP In-Circuit Serial Programming header for flashing firmware.

Usage Instructions

The NANO is easy to use in a variety of circuits and projects. Below are the steps and best practices for using the NANO effectively.

How to Use the NANO in a Circuit:

  1. Powering the Board:

    • Connect the NANO to your computer via a USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V) or the 5V pin (regulated 5V).
  2. Programming the NANO:

    • Install the Arduino IDE from arduino.cc.
    • Connect the NANO to your computer using a USB cable.
    • Select "Arduino Nano" as the board and "ATmega328P" as the processor in the Arduino IDE.
    • Choose the correct COM port and upload your code.
  3. Connecting Components:

    • Use the digital and analog pins to connect sensors, actuators, and other peripherals.
    • Ensure that the current drawn by connected components does not exceed the pin's limit (40 mA).
  4. Using PWM:

    • Use PWM-enabled pins (D3, D5, D6, D9, D10, D11) for applications like motor control or LED dimming.

Example Code for Blinking an LED:

// This example code blinks an LED connected to pin D13 on the NANO.
// Ensure the LED's longer leg (anode) is connected to D13 and the shorter
// leg (cathode) is connected to GND through a 220-ohm resistor.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Best Practices:

  • Use decoupling capacitors near power pins to reduce noise.
  • Avoid drawing excessive current from the board to prevent damage.
  • Use proper resistors with LEDs to limit current.
  • Always double-check connections before powering the board.

Troubleshooting and FAQs

Common Issues and Solutions:

  1. The NANO is not recognized by the computer:

    • Ensure the correct USB driver is installed (e.g., CH340 driver for some clones).
    • Try a different USB cable or port.
  2. Code upload fails:

    • Verify that the correct board and processor are selected in the Arduino IDE.
    • Check the COM port settings.
    • Press the RESET button on the NANO before uploading.
  3. The board is overheating:

    • Ensure the input voltage does not exceed the recommended range (7-12V).
    • Check for short circuits in your connections.
  4. Analog readings are unstable:

    • Use a capacitor (e.g., 0.1 µF) between the analog input pin and GND to stabilize readings.

FAQs:

  • Can I power the NANO with a battery? Yes, you can use a 9V battery connected to the VIN pin or a 5V regulated source connected to the 5V pin.

  • What is the difference between the NANO and the UNO? The NANO is smaller and more compact, making it suitable for space-constrained projects. It has the same microcontroller (ATmega328P) as the UNO but lacks a DC power jack.

  • Can I use the NANO for wireless communication? Yes, you can connect wireless modules like the NRF24L01, HC-05 Bluetooth module, or ESP8266 to the NANO.

By following this documentation, you can effectively use the NANO in your projects and troubleshoot common issues with ease.
