How to Use ESP32 S3 Super Mini: Examples, Pinouts, and Specs

Introduction

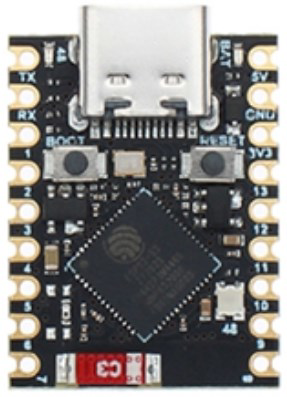

The ESP32 S3 Super Mini is a compact and powerful microcontroller developed by ESP32. It features integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and embedded systems. Its small form factor and robust processing power allow it to be used in space-constrained designs without compromising performance.

Explore Projects Built with ESP32 S3 Super Mini

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

ESP32C3 Supermini-Based Smart Environment Monitor and Lighting Control System

This is a smart control system featuring an ESP32C3 Supermini microcontroller for interfacing with various sensors and actuators. It includes temperature and humidity sensing, RGB LED strip control, user input via a pushbutton and rotary encoder, and AC power control through a two-channel relay. The system is powered by an AC source converted to DC by the HLK-PM12 module.

Open Project in Cirkit Designer

ESP32-C3 and Micro SD Card Module for Data Logging

This circuit features an ESP32-C3 microcontroller interfaced with a Micro SD Card Module. The ESP32-C3 handles SPI communication with the SD card for data storage and retrieval, with specific GPIO pins assigned for MOSI, MISO, SCK, and CS signals.

Open Project in Cirkit Designer

ESP32C3 and LoRa-Enabled Environmental Sensing Node

This circuit features an ESP32C3 Supermini microcontroller connected to a LORA_RA02 module and a DHT11 temperature and humidity sensor. The ESP32C3 handles communication with the LORA module via SPI (using GPIO05, GPIO06, GPIO10, and GPIO04 for MISO, MOSI, NSS, and SCK respectively) and GPIO01 and GPIO02 for additional control signals. The DHT11 sensor is interfaced through GPIO03 for data reading, and all components share a common power supply through the 3.3V and GND pins.

Open Project in Cirkit Designer

ESP32C3-Controlled Smart Environment Monitoring and Lighting System

This is a smart control circuit utilizing an ESP32C3 Supermini microcontroller to interface with a DHT22 sensor for environmental data, a pushbutton and rotary encoder for user inputs, and an RGB LED strip for visual output. It also controls an AC LED bulb through a relay, with power supplied by an HLK-PM12 module converting AC to DC.

Open Project in Cirkit Designer

Common Applications and Use Cases

• IoT devices and smart home automation
• Wearable electronics
• Wireless sensor networks
• Industrial automation
• Robotics and drones
• Prototyping and development of connected devices

Technical Specifications

The following table outlines the key technical specifications of the ESP32 S3 Super Mini:

Pin Configuration and Descriptions

The ESP32 S3 Super Mini has a total of 14 GPIO pins, which can be configured for various functions. Below is the pinout description:

Usage Instructions

How to Use the ESP32 S3 Super Mini in a Circuit

1. Power Supply: Provide a stable 3.3V power supply to the 3V3 pin. Ensure the ground (GND) is connected to the circuit's ground.
2. Programming: Use a USB-to-serial adapter to program the ESP32 S3 Super Mini. Connect the UART TX and RX pins to the adapter.
3. Boot Mode: To enter bootloader mode for programming, hold the GPIO0 pin low while resetting the module.
4. Peripherals: Connect sensors, actuators, or other peripherals to the GPIO pins. Configure the pins in your code for the desired functionality (e.g., input, output, I2C, SPI).

Important Considerations and Best Practices

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the module.
• Decoupling Capacitors: Place a 0.1 µF decoupling capacitor near the power pins to stabilize the power supply.
• Antenna Placement: Avoid placing metal objects near the onboard antenna to ensure optimal wireless performance.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.

Example Code for Arduino UNO Integration

Below is an example of how to use the ESP32 S3 Super Mini with an Arduino IDE to blink an LED connected to GPIO4:

// Include the necessary library for ESP32
#include <Arduino.h>

// Define the GPIO pin for the LED
#define LED_PIN 4

void setup() {
  // Initialize the GPIO pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

1. Module Not Responding to Commands

   • Cause: Incorrect power supply or wiring.
   • Solution: Verify the power supply voltage is 3.3V and check all connections.

2. Wi-Fi Connection Fails

   • Cause: Incorrect SSID or password.
   • Solution: Double-check the Wi-Fi credentials in your code.

3. Unable to Enter Bootloader Mode

   • Cause: GPIO0 not held low during reset.
   • Solution: Ensure GPIO0 is connected to GND while resetting the module.

4. High Power Consumption

   • Cause: Module not in deep sleep mode.
   • Solution: Use the esp_deep_sleep_start() function to enable deep sleep.

FAQs

Q: Can the ESP32 S3 Super Mini operate at 5V?
A: No, the module operates at 3.3V. Connecting 5V directly may damage the module.

Q: How do I update the firmware?
A: Use the ESP32 Flash Download Tool or the Arduino IDE to upload new firmware via the UART interface.

Q: Can I use the ESP32 S3 Super Mini for Bluetooth audio?
A: Yes, the module supports Bluetooth 5.0 LE, which can be used for audio streaming with appropriate libraries.

Q: What is the maximum range of the Wi-Fi?
A: The Wi-Fi range depends on the environment but typically reaches up to 50 meters indoors and 200 meters outdoors.
