How to Use L298N Motor Driver Controller Board Module Stepper Motor: Examples, Pinouts, and Specs

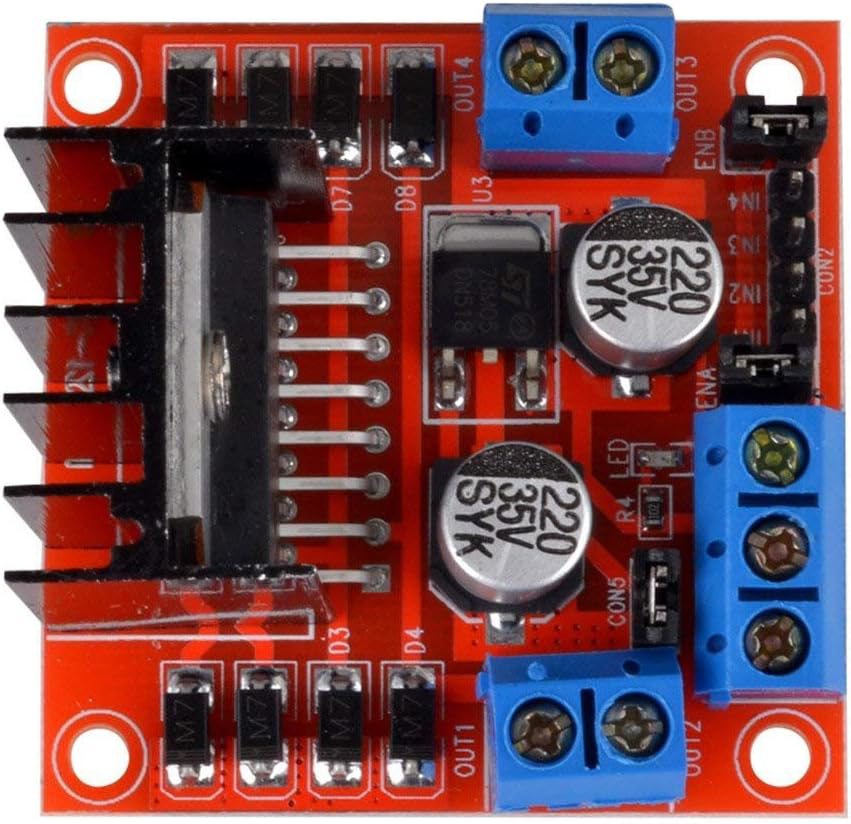

The L298N Motor Driver Controller Board Module, manufactured by HiLetgo, is a versatile and robust dual H-bridge motor driver. It allows for the control of the speed and direction of two DC motors or one stepper motor. This module is widely used in robotics, automation projects, and other applications requiring precise motor control.

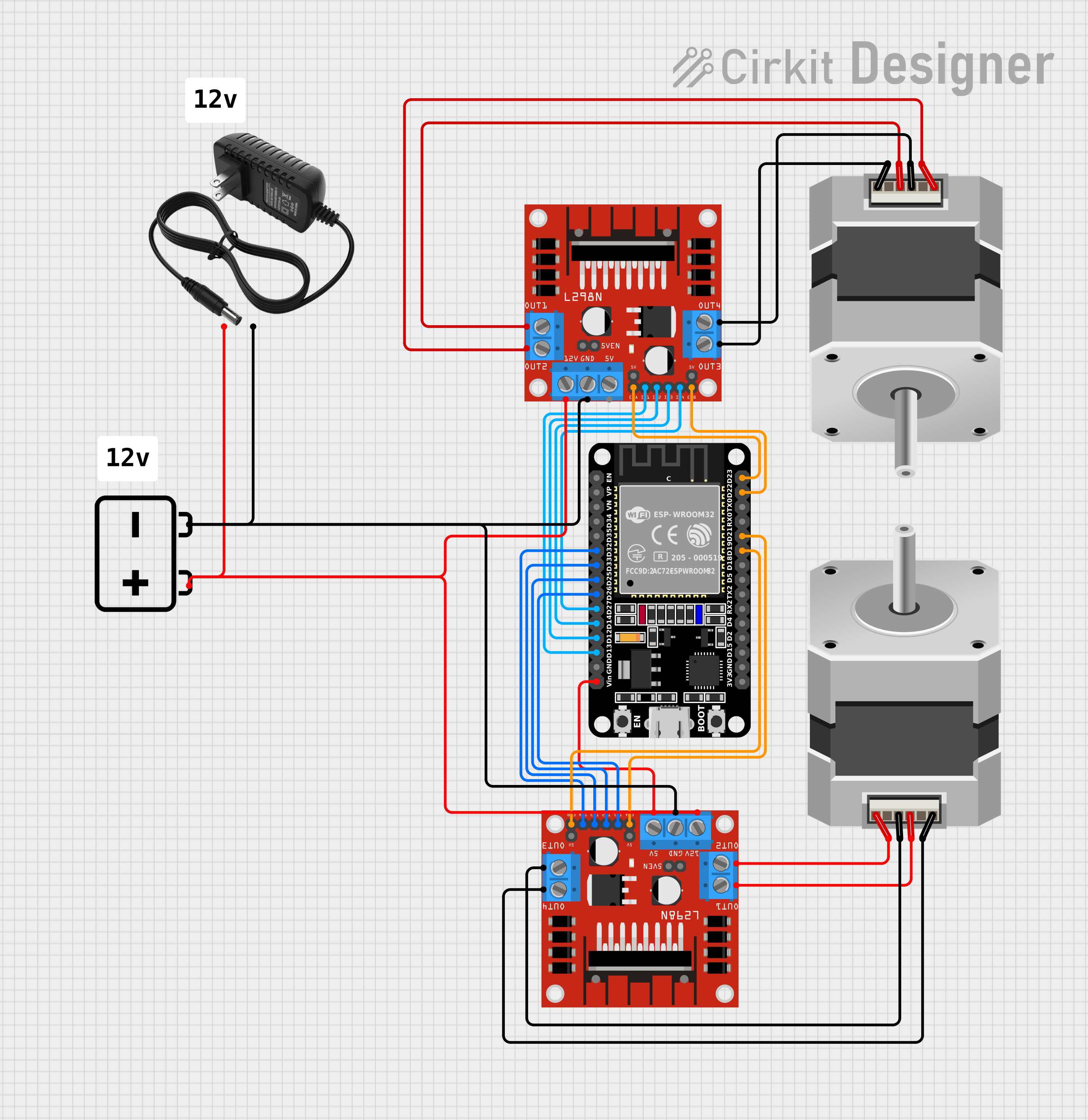

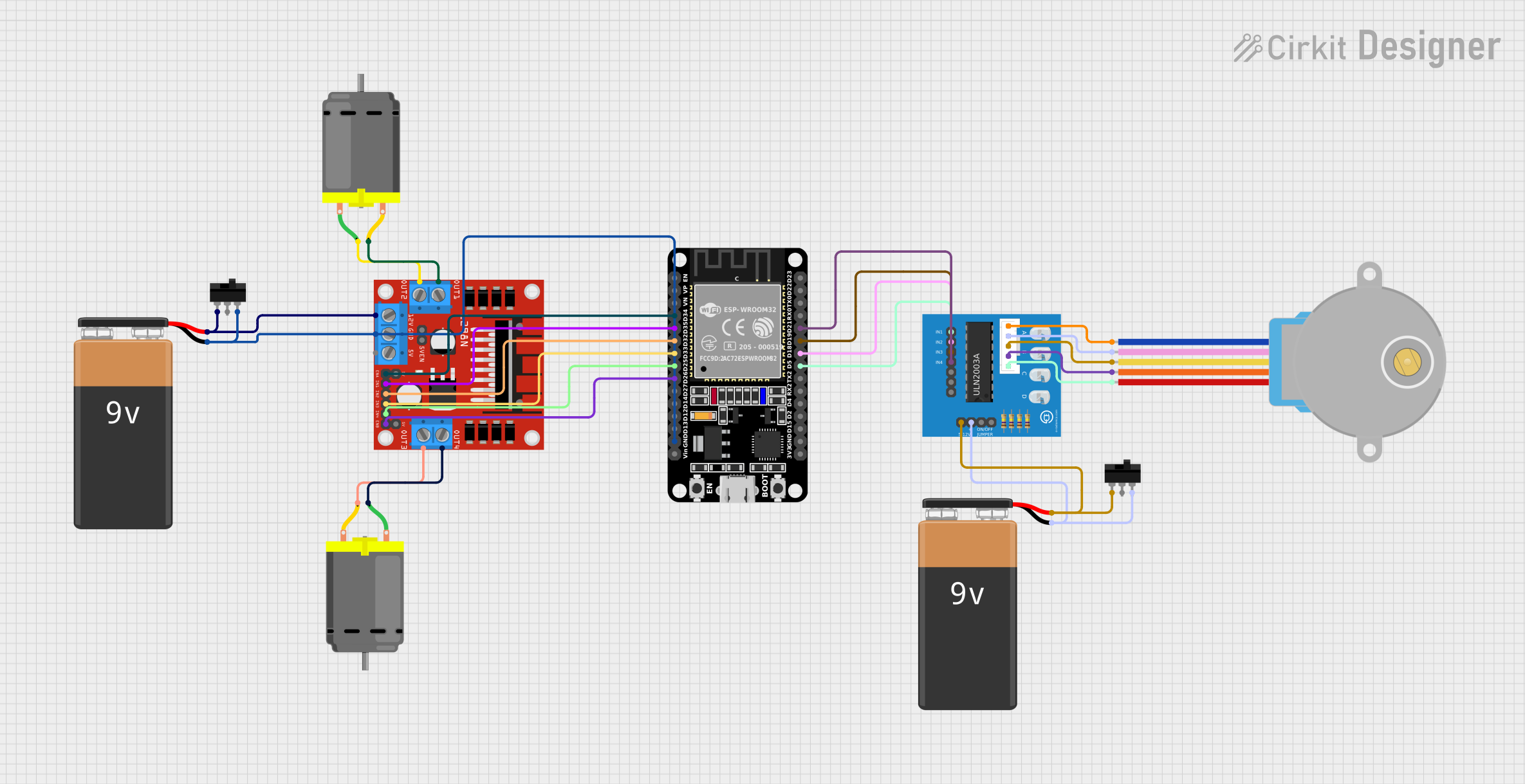

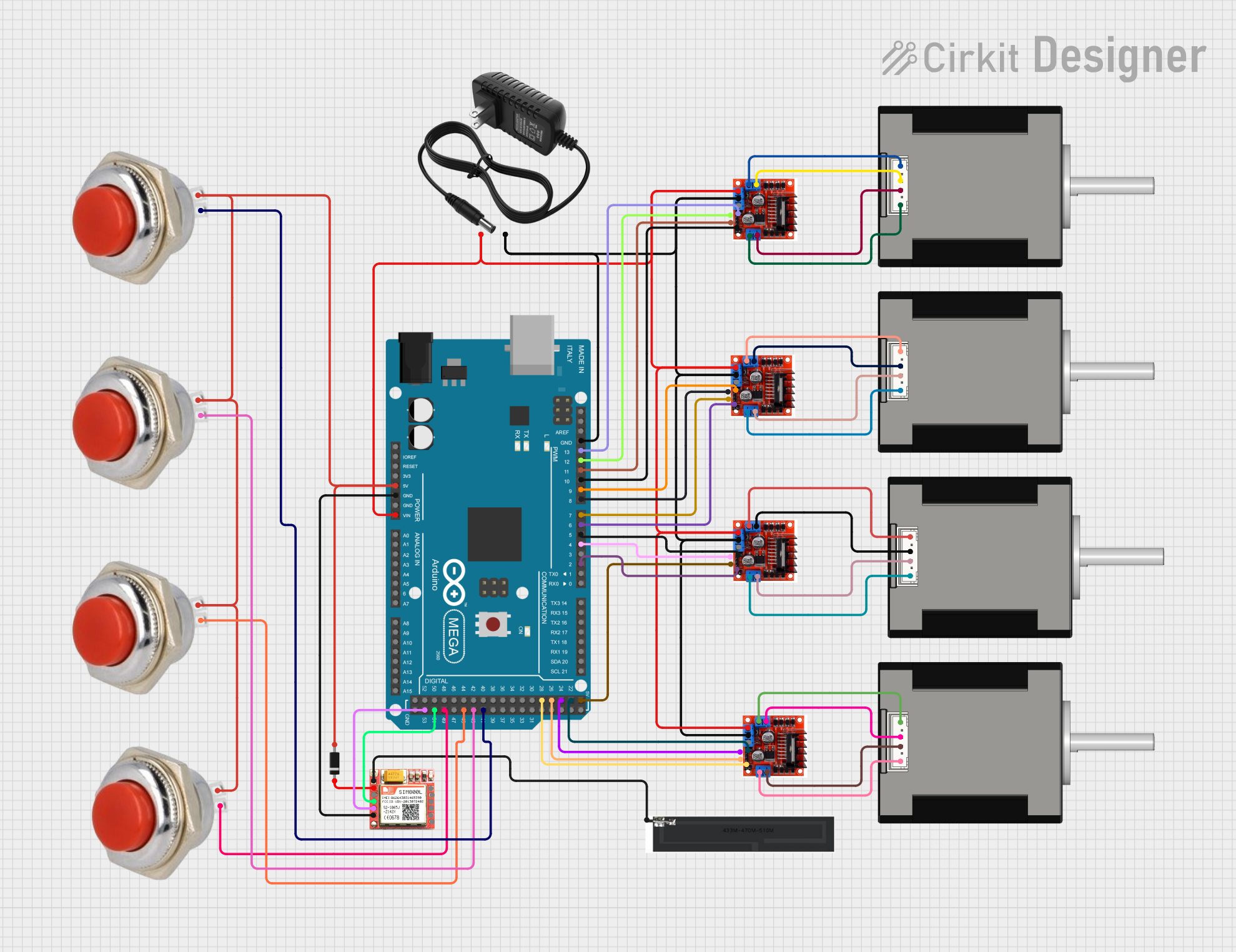

1. Power Connections:

   • Connect the VCC pin to the motor power supply (5V to 35V).
   • Connect the GND pin to the ground of the power supply.
   • Connect the 5V pin to the 5V output of your microcontroller (e.g., Arduino UNO).

2. Motor Connections:

   • Connect the motor terminals to OUT1 and OUT2 for Motor A.
   • Connect the motor terminals to OUT3 and OUT4 for Motor B.

3. Control Connections:

   • Connect the ENA pin to a PWM-capable pin on your microcontroller for Motor A speed control.
   • Connect the IN1 and IN2 pins to digital pins on your microcontroller for Motor A direction control.
   • Connect the ENB pin to a PWM-capable pin on your microcontroller for Motor B speed control.
   • Connect the IN3 and IN4 pins to digital pins on your microcontroller for Motor B direction control.

• Ensure that the power supply voltage does not exceed the maximum rating of 35V.
• Use appropriate heat sinks or cooling mechanisms if the module is operating near its maximum current rating.
• Use PWM signals to control the speed of the motors for smoother operation.
• Double-check all connections before powering up the module to avoid damage.

// Define motor control pins
#define ENA 9
#define IN1 8
#define IN2 7
#define ENB 3
#define IN3 5
#define IN4 4

void setup() {
  // Set all the motor control pins to outputs
  pinMode(ENA, OUTPUT);
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(ENB, OUTPUT);
  pinMode(IN3, OUTPUT);
  pinMode(IN4, OUTPUT);
}

void loop() {
  // Motor A forward
  digitalWrite(IN1, HIGH);
  digitalWrite(IN2, LOW);
  analogWrite(ENA, 255); // Full speed

  // Motor B backward
  digitalWrite(IN3, LOW);
  digitalWrite(IN4, HIGH);
  analogWrite(ENB, 255); // Full speed

  delay(2000); // Run for 2 seconds

  // Stop both motors
  analogWrite(ENA, 0);
  analogWrite(ENB, 0);

  delay(2000); // Wait for 2 seconds
}

1. Motor Not Running:

   • Check all power and ground connections.
   • Ensure the control pins are correctly connected and configured.
   • Verify that the motor power supply voltage is within the specified range.

2. Overheating:

   • Ensure proper heat dissipation with heat sinks or cooling fans.
   • Reduce the load on the motors if they are drawing too much current.

3. Erratic Motor Behavior:

   • Check for loose or faulty connections.
   • Ensure that the PWM signals are correctly generated and applied.

• Double-Check Connections: Ensure all connections are secure and correctly placed.
• Use a Multimeter: Measure voltages at various points to ensure proper power delivery.
• Consult the Datasheet: Refer to the L298N datasheet for detailed technical information and troubleshooting tips.

By following this documentation, users can effectively utilize the L298N Motor Driver Controller Board Module in their projects, ensuring reliable and efficient motor control.
