How to Use Panel Surya 100 Wp: Examples, Pinouts, and Specs

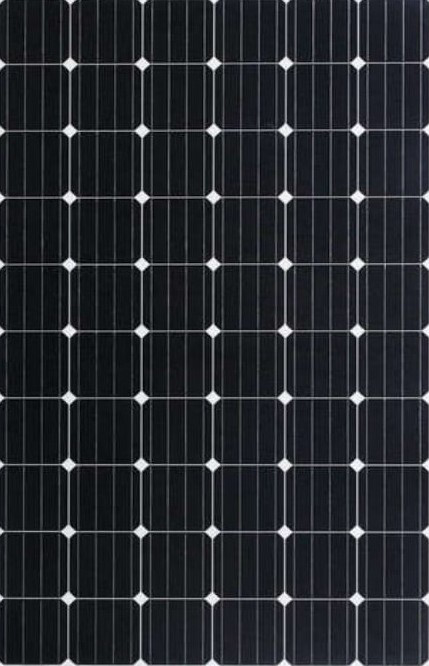

The Panel Surya 100 Wp is a 100-watt solar panel designed to efficiently convert sunlight into electrical energy. It is an ideal choice for a wide range of applications, including residential, commercial, and off-grid solar power systems. With its durable construction and high energy conversion efficiency, this panel is suitable for powering small appliances, charging batteries, or integrating into larger solar arrays.

• Residential rooftop solar systems
• Off-grid power systems for cabins or RVs
• Solar-powered lighting and irrigation systems
• Battery charging for backup power
• Commercial solar installations

The following table outlines the key technical specifications of the Panel Surya 100 Wp:

The Panel Surya 100 Wp does not have traditional pins but instead uses two output terminals (positive and negative) for electrical connections. These terminals are typically connected via MC4 connectors. Below is a description of the terminals:

1. Positioning the Panel:

   • Install the panel in a location with maximum sunlight exposure.
   • Ensure the panel is tilted at an angle appropriate for your geographic location to optimize energy generation.

2. Connecting the Panel:

   • Use MC4 connectors to connect the panel's positive (+) and negative (-) terminals to the input of a solar charge controller.
   • From the charge controller, connect to a battery or load as per the system design.

3. System Integration:

   • For larger systems, multiple panels can be connected in series (to increase voltage) or parallel (to increase current) configurations.
   • Always ensure the total voltage and current do not exceed the specifications of your charge controller or inverter.

4. Safety Precautions:

   • Avoid short-circuiting the terminals.
   • Use appropriate fuses or circuit breakers to protect the system.
   • Ensure all connections are secure and weatherproof.

• Shading: Avoid partial shading of the panel, as it can significantly reduce energy output.
• Cleaning: Regularly clean the panel surface with water and a soft cloth to remove dirt and debris.
• Temperature Effects: Be aware that high temperatures can slightly reduce the panel's efficiency.
• Monitoring: Use a solar charge controller with monitoring capabilities to track performance and ensure optimal operation.

The Panel Surya 100 Wp can be used to power an Arduino UNO indirectly by charging a battery and using a voltage regulator. Below is an example setup:

1. Connect the solar panel to a 12V battery via a solar charge controller.
2. Use a 5V voltage regulator (e.g., LM7805) to step down the battery voltage to 5V.
3. Power the Arduino UNO through its 5V pin.

Here is a sample Arduino code to monitor the battery voltage:

// Define the analog pin connected to the voltage divider
const int voltagePin = A0;

// Voltage divider resistors: R1 = 10k, R2 = 10k
// Adjust the multiplier based on your resistor values
const float voltageMultiplier = 2.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int sensorValue = analogRead(voltagePin); // Read the analog input
  float voltage = sensorValue * (5.0 / 1023.0) * voltageMultiplier;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Ensure the voltage divider is properly calibrated to avoid exceeding the Arduino's input voltage limits.

1. Low Power Output:

   • Cause: Shading, dirt on the panel, or incorrect tilt angle.
   • Solution: Clean the panel, remove shading, and adjust the tilt angle.

2. No Output Voltage:

   • Cause: Loose or faulty connections.
   • Solution: Check all connections, especially the MC4 connectors.

3. Overheating:

   • Cause: Poor ventilation or excessive ambient temperature.
   • Solution: Ensure proper airflow around the panel and avoid installing it in enclosed spaces.

4. Battery Not Charging:

   • Cause: Faulty charge controller or incorrect wiring.
   • Solution: Verify the charge controller settings and wiring connections.

Q1: Can I connect the panel directly to a battery?
A1: No, always use a solar charge controller to regulate the voltage and prevent overcharging the battery.

Q2: How many panels can I connect in series or parallel?
A2: This depends on the specifications of your charge controller and inverter. Ensure the total voltage and current remain within their limits.

Q3: What is the lifespan of the Panel Surya 100 Wp?
A3: The panel typically has a lifespan of 25 years with proper maintenance.

Q4: Can the panel be used indoors?
A4: The panel requires direct sunlight for optimal performance and is not suitable for indoor use.

By following this documentation, you can effectively integrate the Panel Surya 100 Wp into your solar power system and maximize its performance.
