How to Use VL53L0X: Examples, Pinouts, and Specs

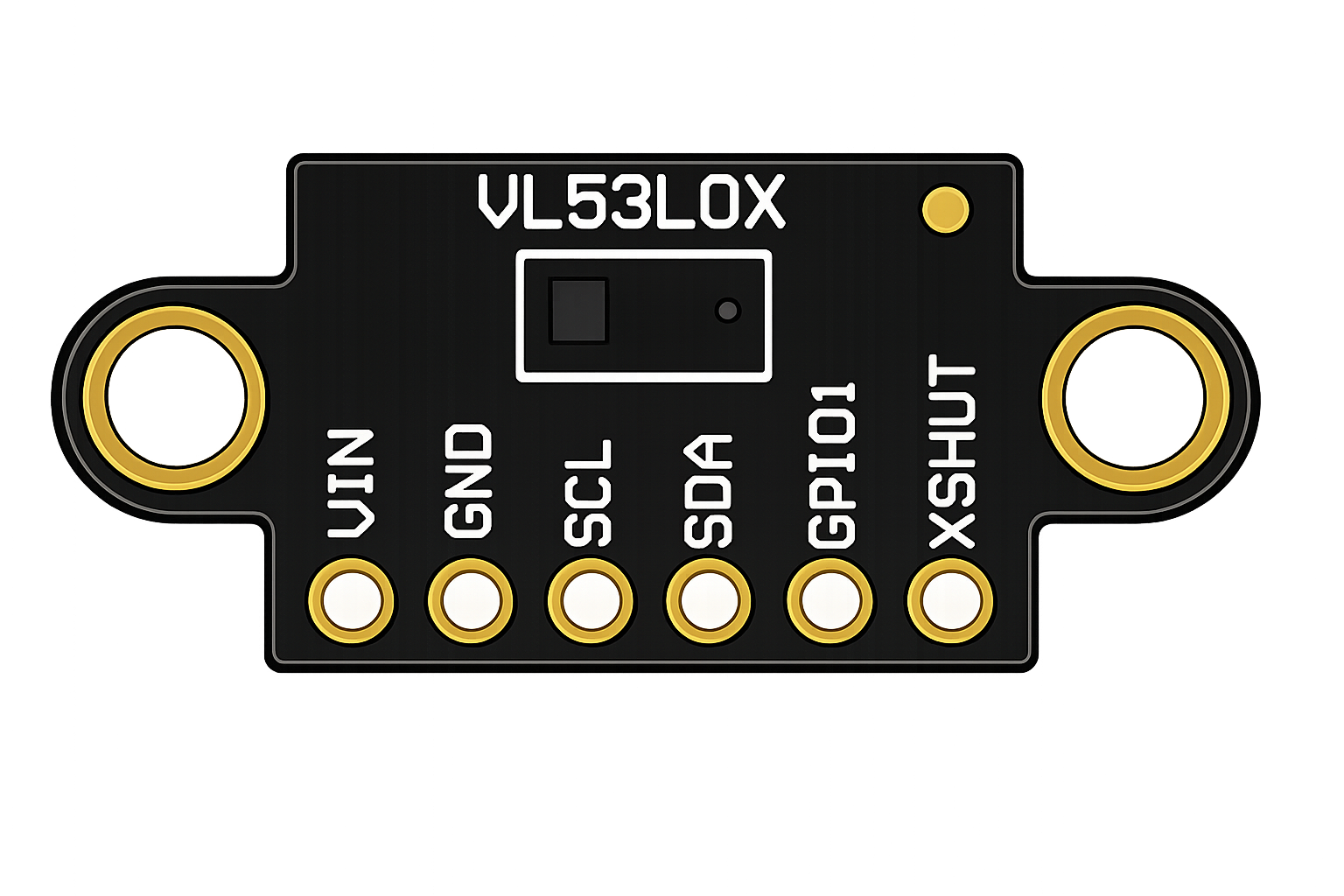

Image of VL53L0X
Cirkit Designer LogoDesign with VL53L0X in Cirkit Designer

Introduction

The VL53L0X is a time-of-flight (ToF) distance sensor that uses laser technology to measure distances with high accuracy. It operates by emitting an infrared laser and calculating the time it takes for the light to reflect back to the sensor. This compact and efficient sensor can measure distances ranging from 30 mm to 2 meters, making it ideal for a variety of applications.

Explore Projects Built with VL53L0X

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO with A9G GSM/GPRS and Dual VL53L1X Distance Sensors
Image of TED CIRCUIT : A project utilizing VL53L0X in a practical application
This circuit features an Arduino UNO microcontroller interfaced with an A9G GSM/GPRS+GPS/BDS module and two VL53L1X time-of-flight distance sensors. The A9G module is connected to the Arduino via serial communication for GPS and GSM functionalities, while both VL53L1X sensors are connected through I2C with shared SDA and SCL lines and individual SHUT pins for selective sensor activation. The Arduino is programmed to control these peripherals, although the specific functionality is not detailed in the provided code.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO R4 WiFi Laser Module with Distance Sensor
Image of KIT 1: SENSOR KIT: A project utilizing VL53L0X in a practical application
This circuit features an Arduino UNO R4 WiFi connected to a VL53L0X distance sensor via I2C for distance measurement. Additionally, a tube laser module is powered by a battery case and controlled through a rocker switch, with a terminal block connector completing the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU-Based Smart Eye Pressure Monitor with OLED Display and Wi-Fi Connectivity
Image of Copy of test 2 (7): A project utilizing VL53L0X in a practical application
This circuit features an ESP8266 NodeMCU microcontroller interfaced with a VL53L0X time-of-flight distance sensor, a 0.96" OLED display, a piezo sensor, and a photodiode for light detection. The ESP8266 collects data from the sensors, displays readings on the OLED, and hosts a web server to present the information. It is likely designed for distance measurement, light intensity detection, and pressure sensing, with the capability to monitor and display these parameters in real-time over WiFi.
Cirkit Designer LogoOpen Project in Cirkit Designer
Adafruit VL53L0X Distance Sensor with OLED Display
Image of VL53L0X Time of Flight Demo: A project utilizing VL53L0X in a practical application
This circuit interfaces an Adafruit VL53L0X distance sensor with an Arduino UNO and an OLED display. The Arduino reads distance measurements from the sensor via I2C communication and displays the results on the OLED screen, providing a visual output of the measured distance in millimeters.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with VL53L0X

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of TED CIRCUIT : A project utilizing VL53L0X in a practical application
Arduino UNO with A9G GSM/GPRS and Dual VL53L1X Distance Sensors
This circuit features an Arduino UNO microcontroller interfaced with an A9G GSM/GPRS+GPS/BDS module and two VL53L1X time-of-flight distance sensors. The A9G module is connected to the Arduino via serial communication for GPS and GSM functionalities, while both VL53L1X sensors are connected through I2C with shared SDA and SCL lines and individual SHUT pins for selective sensor activation. The Arduino is programmed to control these peripherals, although the specific functionality is not detailed in the provided code.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of KIT 1: SENSOR KIT: A project utilizing VL53L0X in a practical application
Arduino UNO R4 WiFi Laser Module with Distance Sensor
This circuit features an Arduino UNO R4 WiFi connected to a VL53L0X distance sensor via I2C for distance measurement. Additionally, a tube laser module is powered by a battery case and controlled through a rocker switch, with a terminal block connector completing the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of test 2 (7): A project utilizing VL53L0X in a practical application
ESP8266 NodeMCU-Based Smart Eye Pressure Monitor with OLED Display and Wi-Fi Connectivity
This circuit features an ESP8266 NodeMCU microcontroller interfaced with a VL53L0X time-of-flight distance sensor, a 0.96" OLED display, a piezo sensor, and a photodiode for light detection. The ESP8266 collects data from the sensors, displays readings on the OLED, and hosts a web server to present the information. It is likely designed for distance measurement, light intensity detection, and pressure sensing, with the capability to monitor and display these parameters in real-time over WiFi.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VL53L0X Time of Flight Demo: A project utilizing VL53L0X in a practical application
Adafruit VL53L0X Distance Sensor with OLED Display
This circuit interfaces an Adafruit VL53L0X distance sensor with an Arduino UNO and an OLED display. The Arduino reads distance measurements from the sensor via I2C communication and displays the results on the OLED screen, providing a visual output of the measured distance in millimeters.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Obstacle detection in robotics
  • Ranging and proximity sensing in automation systems
  • Gesture recognition in consumer electronics
  • Distance measurement in drones and autonomous vehicles
  • Smart home devices for motion detection

Technical Specifications

The VL53L0X is a highly integrated sensor with advanced features. Below are its key technical details:

Parameter Value
Operating Voltage 2.6 V to 3.5 V
Communication Interface I²C
Measuring Range 30 mm to 2000 mm
Accuracy ±3% (typical)
Field of View (FoV) 25°
Operating Temperature -20°C to +70°C
Power Consumption 20 mW (typical)
Laser Wavelength 940 nm (Class 1, eye-safe)

Pin Configuration and Descriptions

The VL53L0X sensor module typically comes with the following pins:

Pin Name Description
VIN Power supply input (2.6 V to 5 V)
GND Ground
SDA I²C data line
SCL I²C clock line
XSHUT Shutdown pin (active low, optional)
GPIO1 Interrupt output (optional, configurable)

Usage Instructions

How to Use the VL53L0X in a Circuit

  1. Power Supply: Connect the VIN pin to a 3.3 V or 5 V power source and GND to ground.
  2. I²C Communication: Connect the SDA and SCL pins to the corresponding I²C pins on your microcontroller (e.g., Arduino).
  3. Optional Pins:
    • Use the XSHUT pin to enable or disable the sensor (active low).
    • The GPIO1 pin can be configured as an interrupt output for advanced use cases.
  4. Pull-Up Resistors: Ensure that the SDA and SCL lines have pull-up resistors (typically 4.7 kΩ) if not already present on the module.

Important Considerations and Best Practices

  • Avoid Direct Sunlight: The sensor's performance may degrade under strong ambient light.
  • Mounting: Ensure the sensor is mounted securely and aligned properly for accurate measurements.
  • I²C Address: The default I²C address is 0x29. If using multiple sensors, you must change their addresses using the XSHUT pin.
  • Laser Safety: The VL53L0X uses a Class 1 laser, which is eye-safe under normal conditions. Avoid tampering with the module.

Example Code for Arduino UNO

Below is an example of how to use the VL53L0X with an Arduino UNO. This code uses the Adafruit VL53L0X library, which can be installed via the Arduino Library Manager.

#include <Wire.h>
#include <Adafruit_VL53L0X.h>

// Create an instance of the VL53L0X sensor
Adafruit_VL53L0X lox = Adafruit_VL53L0X();

void setup() {
  Serial.begin(9600); // Initialize serial communication
  while (!Serial) {
    delay(10); // Wait for Serial Monitor to open
  }

  Serial.println("VL53L0X Test");

  // Initialize the sensor
  if (!lox.begin()) {
    Serial.println("Failed to initialize VL53L0X! Check connections.");
    while (1); // Halt execution if initialization fails
  }
}

void loop() {
  VL53L0X_RangingMeasurementData_t measure;

  // Perform a ranging measurement
  lox.rangingTest(&measure, false);

  // Check if the measurement is valid
  if (measure.RangeStatus != 4) { // 4 means out of range
    Serial.print("Distance (mm): ");
    Serial.println(measure.RangeMilliMeter);
  } else {
    Serial.println("Out of range");
  }

  delay(100); // Wait 100 ms before the next measurement
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Sensor Not Detected on I²C Bus:

    • Ensure the SDA and SCL connections are correct.
    • Check for proper pull-up resistors on the I²C lines.
    • Verify the sensor's power supply voltage.
  2. Incorrect Distance Measurements:

    • Ensure there are no obstructions in the sensor's field of view.
    • Avoid reflective surfaces directly in front of the sensor, as they may cause inaccurate readings.
  3. Out of Range Errors:

    • Ensure the target object is within the sensor's measurable range (30 mm to 2 m).
    • Check for strong ambient light interference.
  4. Multiple Sensors Interfering:

    • Use the XSHUT pin to control and assign unique I²C addresses to each sensor.

FAQs

Q: Can the VL53L0X measure through glass?
A: The sensor may work through some types of glass, but the accuracy and range can be affected due to reflections and refraction.

Q: What is the maximum I²C speed supported?
A: The VL53L0X supports I²C speeds up to 400 kHz (Fast Mode).

Q: Can I use the VL53L0X with a 5 V microcontroller?
A: Yes, the module includes level-shifting circuitry, allowing it to work with 5 V logic.

Q: How do I reduce power consumption?
A: Use the XSHUT pin to put the sensor into a low-power shutdown mode when not in use.
