How to Use ir sensor: Examples, Pinouts, and Specs

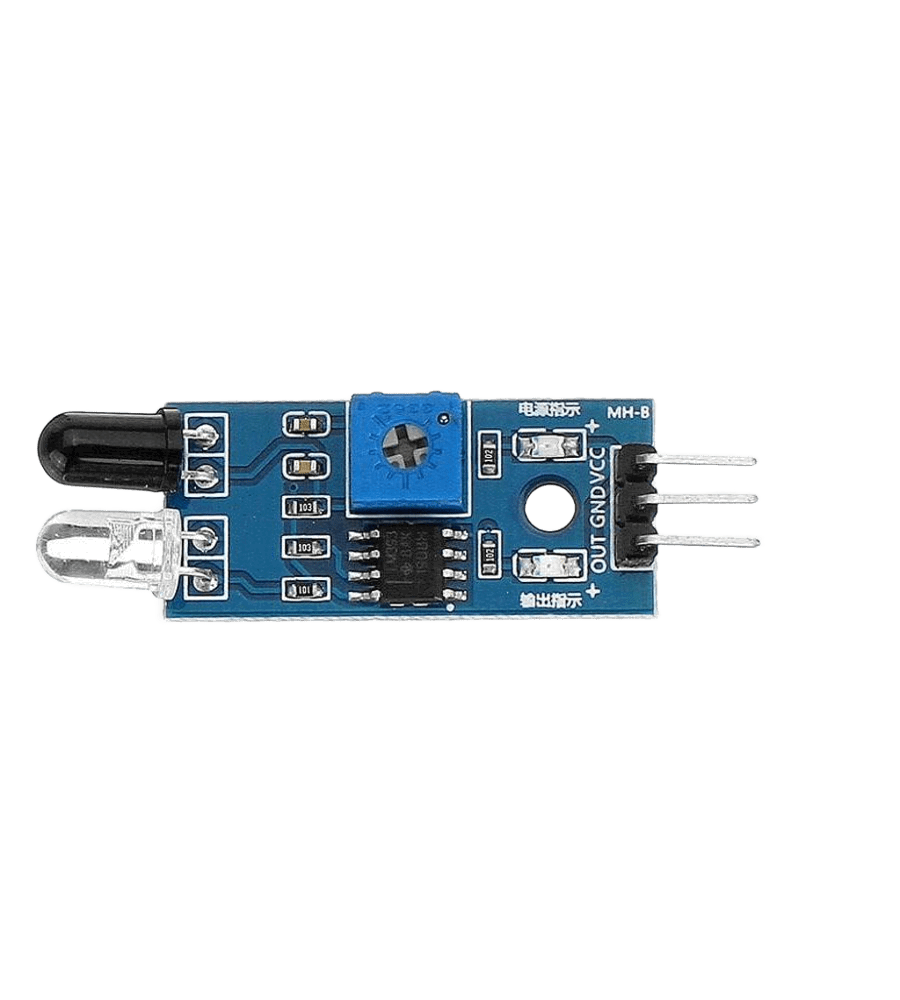

Image of ir sensor
Cirkit Designer LogoDesign with ir sensor in Cirkit Designer

Introduction

An infrared (IR) sensor detects infrared radiation, which is invisible to the human eye but can be emitted by objects as heat or transmitted by IR LEDs. IR sensors are widely used in various applications, including proximity sensing, motion detection, line-following robots, and remote control systems. These sensors are valued for their simplicity, low cost, and versatility in detecting objects or signals.

Common applications of IR sensors include:

  • Obstacle detection in robotics
  • Line-following robots
  • Motion detection for security systems
  • Remote control signal reception
  • Non-contact temperature measurement

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based IR Sensor Array with LED Indicators
Image of mixed: A project utilizing ir sensor in a practical application
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
Image of PROJECT: A project utilizing ir sensor in a practical application
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO IR Sensor Motion Detector
Image of HCSR-04: A project utilizing ir sensor in a practical application
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Dual IR Sensor Interface
Image of Person in and out monitoring: A project utilizing ir sensor in a practical application
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mixed: A project utilizing ir sensor in a practical application
Arduino-Based IR Sensor Array with LED Indicators
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PROJECT: A project utilizing ir sensor in a practical application
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of HCSR-04: A project utilizing ir sensor in a practical application
Arduino UNO IR Sensor Motion Detector
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Person in and out monitoring: A project utilizing ir sensor in a practical application
ESP32-Based Dual IR Sensor Interface
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a typical IR sensor module:

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 20mA (typical)
Detection Range 2 cm to 30 cm (varies by model)
Output Type Digital (High/Low) or Analog
Wavelength Sensitivity ~940 nm (infrared spectrum)
Response Time ~10 ms
Operating Temperature -25°C to 85°C

Pin Configuration

The pin configuration for a standard 3-pin IR sensor module is as follows:

Pin Name Description
1 VCC Power supply pin (3.3V to 5V)
2 GND Ground pin
3 OUT Output pin (Digital or Analog signal, depending on model)

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
  2. Connect the Output: Attach the OUT pin to a microcontroller's input pin (e.g., Arduino) or to another circuit component that processes the signal.
  3. Position the Sensor: Place the IR sensor so that it faces the object or area you want to monitor. Ensure there are no obstructions between the sensor and the target.
  4. Read the Output: The sensor's output will typically be:
    • Digital Mode: HIGH (1) when no object is detected, LOW (0) when an object is detected.
    • Analog Mode: A variable voltage proportional to the distance of the object.

Important Considerations and Best Practices

  • Ambient Light: IR sensors can be affected by ambient light or sunlight. Use shielding or modulation techniques to improve performance.
  • Reflective Surfaces: Highly reflective surfaces may cause inaccurate readings. Test the sensor with your specific application.
  • Distance Calibration: Adjust the sensor's potentiometer (if available) to fine-tune the detection range.
  • Power Supply: Ensure a stable power supply to avoid erratic behavior.

Example: Connecting an IR Sensor to an Arduino UNO

Below is an example of how to connect and use an IR sensor with an Arduino UNO:

Circuit Connections

  • Connect the VCC pin of the IR sensor to the 5V pin on the Arduino.
  • Connect the GND pin of the IR sensor to the GND pin on the Arduino.
  • Connect the OUT pin of the IR sensor to digital pin 2 on the Arduino.

Arduino Code

// IR Sensor Example Code for Arduino UNO
// This code reads the digital output of the IR sensor and turns on an LED
// when an object is detected.

const int irSensorPin = 2;  // IR sensor output connected to digital pin 2
const int ledPin = 13;      // Built-in LED on Arduino

void setup() {
  pinMode(irSensorPin, INPUT);  // Set IR sensor pin as input
  pinMode(ledPin, OUTPUT);      // Set LED pin as output
  Serial.begin(9600);           // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(irSensorPin);  // Read the IR sensor output

  if (sensorValue == LOW) {
    // Object detected
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");
  } else {
    // No object detected
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay for stability
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The sensor is not detecting objects:

    • Ensure the sensor is powered correctly (check VCC and GND connections).
    • Verify that the object is within the sensor's detection range.
    • Adjust the potentiometer (if available) to fine-tune the sensitivity.
  2. False detections or erratic behavior:

    • Check for interference from ambient light or other IR sources.
    • Use a stable power supply to avoid noise in the sensor's output.
    • Ensure the sensor is not too close to reflective surfaces.
  3. Output signal is not being read by the microcontroller:

    • Confirm that the OUT pin is connected to the correct input pin on the microcontroller.
    • Check the microcontroller's code to ensure the pin is configured as an input.

FAQs

Q: Can the IR sensor detect transparent objects?
A: IR sensors may struggle to detect transparent objects like glass, as they allow most IR light to pass through. Use alternative sensing methods for such applications.

Q: How do I increase the detection range of the IR sensor?
A: You can adjust the potentiometer (if available) on the sensor module to increase the detection range. However, note that increasing the range may reduce accuracy.

Q: Can I use the IR sensor outdoors?
A: While IR sensors can be used outdoors, they may be affected by sunlight or other IR sources. Consider using shielding or modulation techniques to improve performance in outdoor environments.
