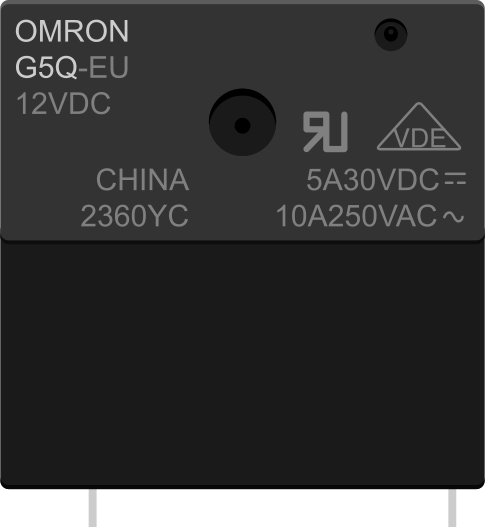

How to Use RELAY: Examples, Pinouts, and Specs

A relay is an electromechanical switch that uses an electromagnet to open or close a circuit. It allows a low-power signal to control a high-power circuit, making it an essential component in many electronic and electrical systems. Relays are widely used in applications such as home automation, industrial control systems, automotive electronics, and power distribution systems. They provide electrical isolation between the control circuit and the high-power circuit, ensuring safety and reliability.

Below are the general technical specifications for a standard single-pole, double-throw (SPDT) relay. Specifications may vary depending on the specific relay model.

• Coil Voltage: 5V, 12V, or 24V (depending on the relay type)
• Coil Current: Typically 70-150 mA
• Contact Rating: 10A at 250V AC or 10A at 30V DC
• Contact Configuration: SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw)
• Switching Time: 5-15 ms
• Dielectric Strength: 1000V AC (between coil and contacts)
• Insulation Resistance: ≥ 100 MΩ at 500V DC
• Mechanical Life: 10 million operations (typical)

The pin configuration for a standard 5-pin SPDT relay is as follows:

1. Power the Coil: Connect the relay coil terminals (pins 1 and 2) to a power source that matches the relay's rated coil voltage. For example, use a 5V power source for a 5V relay.
2. Control the Coil: Use a low-power control signal (e.g., from a microcontroller like Arduino) to activate the relay. A transistor or relay driver circuit may be required to amplify the control signal.
3. Connect the Load:
   • Connect the high-power circuit's input to the COM terminal (pin 3).
   • Connect the high-power circuit's output to either the NO terminal (pin 4) or the NC terminal (pin 5), depending on the desired behavior:
     • Use NO if the circuit should be off by default and turn on when the relay is activated.
     • Use NC if the circuit should be on by default and turn off when the relay is activated.

• Use a Flyback Diode: Always connect a flyback diode across the relay coil terminals to protect the control circuit from voltage spikes caused by the collapsing magnetic field when the relay is deactivated.
• Check Contact Ratings: Ensure the relay's contact ratings (voltage and current) are sufficient for the load you are switching.
• Avoid Overheating: Do not exceed the relay's rated coil voltage or current to prevent overheating and damage.
• Isolation: Use optocouplers or relay modules with built-in isolation for added safety when interfacing with microcontrollers.

Below is an example of how to control a 5V relay using an Arduino UNO:

// Define the pin connected to the relay module
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is off at startup
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay on (activate)
  digitalWrite(relayPin, HIGH);
  delay(1000); // Keep the relay on for 1 second

  // Turn the relay off (deactivate)
  digitalWrite(relayPin, LOW);
  delay(1000); // Keep the relay off for 1 second
}

Note: If using a bare relay (not a relay module), you will need a transistor and a flyback diode to safely interface the relay with the Arduino.

1. Relay Not Activating

   • Cause: Insufficient coil voltage or current.
   • Solution: Verify the power supply voltage and current match the relay's specifications.

2. Relay Stuck in One State

   • Cause: Damaged or worn-out relay contacts.
   • Solution: Replace the relay if it has exceeded its mechanical or electrical life.

3. Voltage Spikes Damaging the Circuit

   • Cause: Lack of a flyback diode across the relay coil.
   • Solution: Install a flyback diode (e.g., 1N4007) across the coil terminals.

4. Microcontroller Resetting When Relay Activates

   • Cause: Voltage spikes or insufficient power supply decoupling.
   • Solution: Add a capacitor (e.g., 100 µF) near the microcontroller's power supply and ensure proper grounding.

• Can I use a relay to switch AC loads? Yes, as long as the relay's contact ratings support the AC voltage and current of the load.

• What is the difference between NO and NC terminals? The NO (Normally Open) terminal is disconnected from the COM terminal when the relay is inactive, while the NC (Normally Closed) terminal is connected to the COM terminal when the relay is inactive.

• Do I need a relay module to use a relay with an Arduino? A relay module simplifies the connection process by including a transistor, flyback diode, and isolation circuitry. However, you can use a bare relay with additional components like a transistor and diode.

• Can a relay handle both AC and DC loads? Yes, most relays can handle both AC and DC loads, but you must check the relay's contact ratings for each type of load.
