Introduction

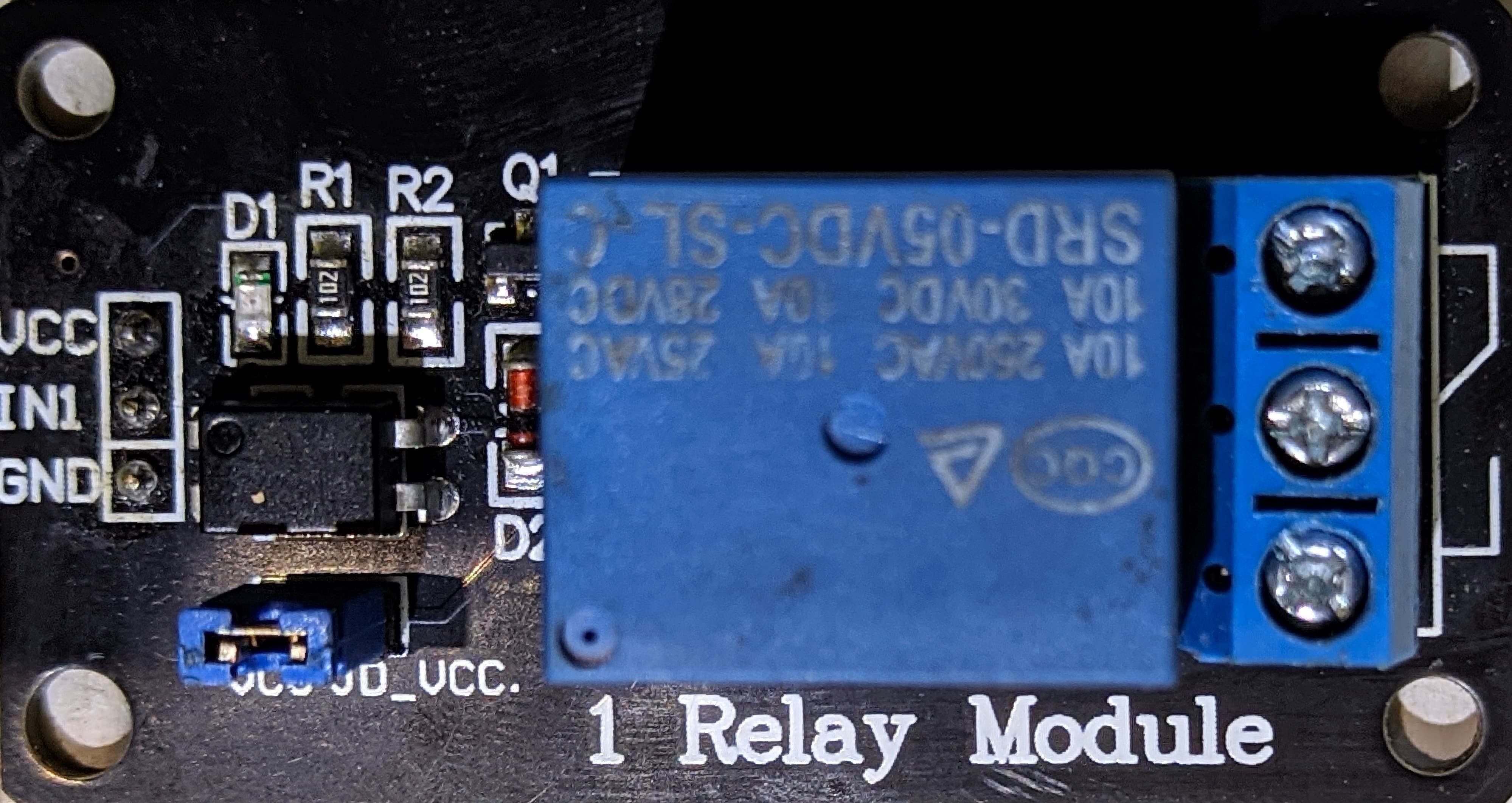

The RELAY 1CH is a single-channel relay module designed to control high-power devices using a low-power signal. It provides electrical isolation between the control circuit and the load, ensuring safety and reliability in various applications. This module is widely used in home automation, industrial control systems, and DIY electronics projects.

Explore Projects Built with RELAY 1CH

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

DC Motor Control Using 1-Channel Relay and DC Power Source

This circuit controls a DC motor using a 1-channel relay. The relay is powered by a DC power source, and it switches the motor on and off by connecting or disconnecting the motor's power supply.

Open Project in Cirkit Designer

Battery-Powered IR Sensor Controlled Relay Module

This circuit uses an IR sensor to control a 1 Channel 5V Relay Module, which is powered by a 9V battery. The IR sensor detects an object and sends a signal to the relay module to switch its state, enabling or disabling the connected load.

Open Project in Cirkit Designer

Battery-Powered IR Sensor Controlled Motor with Relay

This circuit uses an IR sensor to control a motor via a 1-channel relay. The IR sensor detects an object and sends a signal to the relay, which then switches the motor on or off based on the sensor input. The entire system is powered by two 18650 Li-Ion batteries.

Open Project in Cirkit Designer

WeMos D1 R2 Controlled Relay Switching Circuit for AC Bulb and USB Charger

This circuit uses a WeMos D1 R2 microcontroller to control a 5V 2-relay module, which in turn controls the power to an AC bulb and a cellphone charger. The microcontroller also interfaces with a line tracking sensor, which likely provides input to control the relay states. The AC bulb and cellphone charger are powered by an AC wire connection, with the relay acting as a switch for the bulb.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Controlling high-power devices such as lights, fans, and motors.
• Home automation systems for switching appliances.
• Industrial equipment control.
• Interfacing microcontrollers (e.g., Arduino, Raspberry Pi) with high-voltage devices.
• DIY projects requiring electrical isolation for safety.

Technical Specifications

The RELAY 1CH module is built to handle a wide range of control and load requirements. Below are its key specifications:

General Specifications

Pin Configuration and Descriptions

Usage Instructions

The RELAY 1CH module is simple to use and can be integrated into various circuits. Below are the steps and best practices for using the module:

Connecting the Relay

1. Power the Module: Connect the VCC pin to a 5V DC power supply and the GND pin to the ground.
2. Control Signal: Connect the IN pin to the control signal source (e.g., a microcontroller GPIO pin).
3. Load Connection:
   • Connect the load's live wire to the COM terminal.
   • For a normally OFF load, connect the other wire to the NO terminal.
   • For a normally ON load, connect the other wire to the NC terminal.

Example Circuit with Arduino UNO

Below is an example of how to control the RELAY 1CH module using an Arduino UNO:

Circuit Connections

• Connect the relay module's VCC to the Arduino's 5V pin.
• Connect the relay module's GND to the Arduino's GND pin.
• Connect the relay module's IN pin to Arduino digital pin 7.
• Connect the load (e.g., a light bulb) to the COM and NO terminals of the relay.

Arduino Code

// RELAY 1CH Example Code
// This code toggles the relay ON and OFF every 2 seconds.

#define RELAY_PIN 7  // Define the pin connected to the relay module

void setup() {
  pinMode(RELAY_PIN, OUTPUT);  // Set the relay pin as an output
  digitalWrite(RELAY_PIN, LOW);  // Ensure the relay is OFF initially
}

void loop() {
  digitalWrite(RELAY_PIN, HIGH);  // Turn the relay ON
  delay(2000);  // Wait for 2 seconds
  digitalWrite(RELAY_PIN, LOW);  // Turn the relay OFF
  delay(2000);  // Wait for 2 seconds
}

Important Considerations and Best Practices

• Electrical Isolation: Ensure proper isolation between the control circuit and the high-power load to prevent damage or hazards.
• Power Supply: Use a stable 5V DC power supply for the relay module.
• Load Ratings: Do not exceed the maximum voltage (250V AC / 30V DC) or current (10A) ratings of the relay.
• Flyback Diode: If controlling an inductive load (e.g., a motor), use a flyback diode across the load to protect the relay from voltage spikes.

Troubleshooting and FAQs

Common Issues and Solutions

1. Relay Not Activating:

   • Ensure the control signal voltage is within the specified range (3.3V to 5V).
   • Check the power supply connections to the relay module.
   • Verify that the IN pin is properly connected to the control source.

2. Load Not Switching:

   • Confirm that the load is connected to the correct terminals (COM and NO/NC).
   • Check the load's power supply and ensure it is functioning correctly.
   • Verify that the relay is activating by listening for a clicking sound.

3. Relay Stuck in One State:

   • Ensure the load does not exceed the relay's maximum current or voltage ratings.
   • Inspect the relay module for physical damage or burnt components.

FAQs

Q: Can I use the RELAY 1CH module with a 3.3V microcontroller?
A: Yes, the module can be triggered with a 3.3V control signal, but ensure the power supply to the module is 5V.

Q: Is the relay safe for switching high-power devices?
A: Yes, the relay is designed for high-power devices up to 250V AC or 30V DC at 10A. However, always follow safety guidelines and ensure proper isolation.

Q: Can I control multiple relays with one microcontroller?
A: Yes, you can control multiple relays by connecting each relay's IN pin to a separate GPIO pin on the microcontroller.

By following this documentation, you can effectively use the RELAY 1CH module in your projects while ensuring safety and reliability.
