How to Use Fan - Ventilator: Examples, Pinouts, and Specs

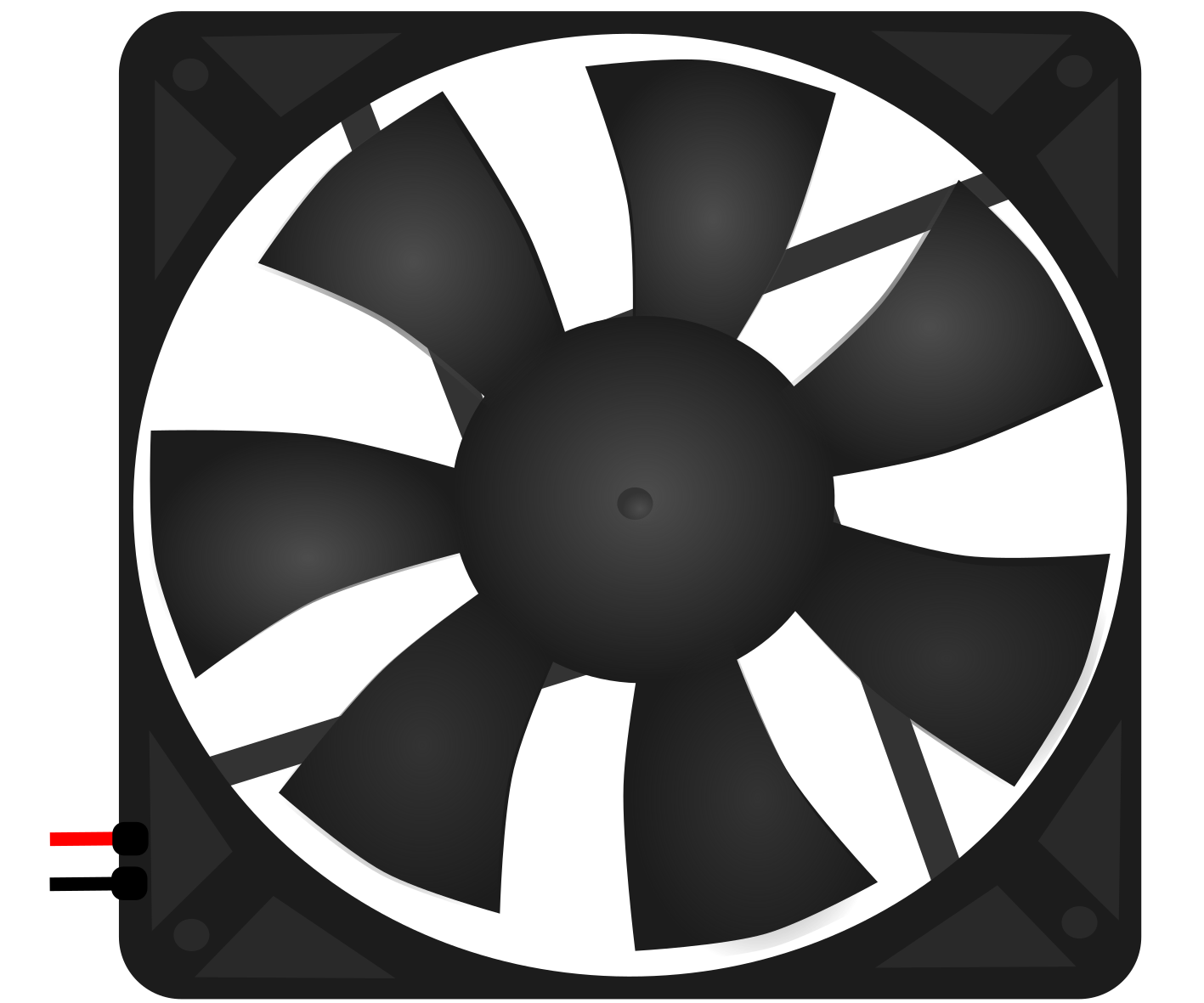

Image of Fan - Ventilator
Cirkit Designer LogoDesign with Fan - Ventilator in Cirkit Designer

Introduction

  • A fan or ventilator is an electromechanical device used to create airflow by converting electrical energy into mechanical motion. It is commonly used for cooling, ventilation, and air circulation in various applications.
  • Common applications include:
    • Cooling electronic components (e.g., CPUs, power supplies, and enclosures)
    • Ventilation in HVAC systems
    • Air circulation in appliances and industrial equipment

Explore Projects Built with Fan - Ventilator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered IR Sensor Controlled Fan with LED Indicator
Image of pollution control on roads: A project utilizing Fan - Ventilator in a practical application
This circuit is a fan control system that uses an IR sensor to detect motion and activate a relay, which in turn powers a fan. The circuit includes a voltage regulator to step down the voltage from a 9V battery to 5V, and an NPN transistor to control the relay coil, with an LED indicator to show the status of the fan.
Cirkit Designer LogoOpen Project in Cirkit Designer
MQ-4 Gas Sensor Controlled Exhaust Fan System
Image of automatic exhaust : A project utilizing Fan - Ventilator in a practical application
This circuit features an MQ-4 gas sensor connected to a 5V relay, which likely controls the activation of an exhaust fan based on the gas concentration levels detected. The relay switches power from a 7.4V source to the fan, with two rocker switches acting as manual on/off controls for the power supply to the relay and the fan. The circuit is designed to provide safety by automatically activating ventilation when potentially dangerous gas levels are detected.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Fan Control System with Bluetooth and Temperature Sensor
Image of Temperature and Fan Control System: A project utilizing Fan - Ventilator in a practical application
This circuit is a temperature-controlled fan system using an Arduino UNO, an LM35 temperature sensor, and a relay module. The Arduino reads the temperature from the LM35 sensor and controls the fan via the relay based on a predefined temperature threshold, with the option for manual override through Bluetooth commands using an HC-06 module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Temperature-Based Fan Speed Control with LCD Display and LED Alert
Image of 1111: A project utilizing Fan - Ventilator in a practical application
This circuit is a temperature-based fan speed control and monitoring system. It uses an LM35 temperature sensor to read the ambient temperature, an Arduino UNO to process the data and control the fan speed via a transistor, and a 16x2 LCD to display the temperature and fan speed. An LED is also included to indicate when the temperature exceeds a maximum threshold.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Fan - Ventilator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of pollution control on roads: A project utilizing Fan - Ventilator in a practical application
Battery-Powered IR Sensor Controlled Fan with LED Indicator
This circuit is a fan control system that uses an IR sensor to detect motion and activate a relay, which in turn powers a fan. The circuit includes a voltage regulator to step down the voltage from a 9V battery to 5V, and an NPN transistor to control the relay coil, with an LED indicator to show the status of the fan.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic exhaust : A project utilizing Fan - Ventilator in a practical application
MQ-4 Gas Sensor Controlled Exhaust Fan System
This circuit features an MQ-4 gas sensor connected to a 5V relay, which likely controls the activation of an exhaust fan based on the gas concentration levels detected. The relay switches power from a 7.4V source to the fan, with two rocker switches acting as manual on/off controls for the power supply to the relay and the fan. The circuit is designed to provide safety by automatically activating ventilation when potentially dangerous gas levels are detected.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Temperature and Fan Control System: A project utilizing Fan - Ventilator in a practical application
Arduino UNO-Based Smart Fan Control System with Bluetooth and Temperature Sensor
This circuit is a temperature-controlled fan system using an Arduino UNO, an LM35 temperature sensor, and a relay module. The Arduino reads the temperature from the LM35 sensor and controls the fan via the relay based on a predefined temperature threshold, with the option for manual override through Bluetooth commands using an HC-06 module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 1111: A project utilizing Fan - Ventilator in a practical application
Arduino UNO Temperature-Based Fan Speed Control with LCD Display and LED Alert
This circuit is a temperature-based fan speed control and monitoring system. It uses an LM35 temperature sensor to read the ambient temperature, an Arduino UNO to process the data and control the fan speed via a transistor, and a 16x2 LCD to display the temperature and fan speed. An LED is also included to indicate when the temperature exceeds a maximum threshold.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Below are the general technical specifications for a standard DC-powered fan or ventilator:
Parameter Value
Operating Voltage 5V, 12V, or 24V DC (varies by model)
Current Consumption 0.1A to 0.5A (depending on size)
Power Rating 0.5W to 12W
Speed 1000 to 5000 RPM
Airflow 10 to 100 CFM (Cubic Feet per Minute)
Noise Level 20 to 50 dBA
Bearing Type Sleeve or Ball Bearing
Connector Type 2-pin, 3-pin, or 4-pin

Pin Configuration and Descriptions

2-Pin Fan

Pin Name Description
1 VCC Positive power supply (e.g., 12V)
2 GND Ground connection

3-Pin Fan

Pin Name Description
1 VCC Positive power supply (e.g., 12V)
2 GND Ground connection
3 Tach Tachometer output for speed monitoring

4-Pin Fan

Pin Name Description
1 VCC Positive power supply (e.g., 12V)
2 GND Ground connection
3 Tach Tachometer output for speed monitoring
4 PWM Pulse Width Modulation input for speed control

Usage Instructions

  1. Connecting the Fan:

    • Identify the type of fan (2-pin, 3-pin, or 4-pin) and connect the pins to the appropriate power source or controller.
    • For a 2-pin fan, connect the VCC pin to the positive terminal of the power supply and the GND pin to the ground.
    • For a 3-pin or 4-pin fan, connect the additional pins (Tach and PWM) to a microcontroller or fan controller if speed monitoring or control is required.
  2. Using with an Arduino UNO:

    • A 4-pin fan can be controlled using the Arduino's PWM output. Below is an example code snippet to control fan speed:
// Example code to control a 4-pin fan using Arduino UNO
const int pwmPin = 9; // PWM pin connected to the fan's PWM input

void setup() {
  pinMode(pwmPin, OUTPUT); // Set the PWM pin as an output
}

void loop() {
  analogWrite(pwmPin, 128); // Set fan speed to 50% (128 out of 255)
  delay(5000); // Run at 50% speed for 5 seconds

  analogWrite(pwmPin, 255); // Set fan speed to 100% (255 out of 255)
  delay(5000); // Run at full speed for 5 seconds
}
  1. Important Considerations:
    • Ensure the fan's operating voltage matches the power supply.
    • Use a current-limiting resistor or a fan controller if necessary to prevent overcurrent.
    • For 3-pin and 4-pin fans, ensure proper connections to avoid damaging the tachometer or PWM circuitry.
    • Avoid obstructing the fan blades to prevent mechanical damage.

Troubleshooting and FAQs

Common Issues

  1. Fan does not spin:

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the connections and ensure the power supply matches the fan's voltage and current requirements.
  2. Fan spins but makes noise:

    • Cause: Dust accumulation or worn-out bearings.
    • Solution: Clean the fan blades and check for debris. Replace the fan if the bearings are damaged.
  3. Fan speed is not controllable:

    • Cause: PWM signal not properly configured or incompatible fan.
    • Solution: Verify the PWM signal frequency (typically 25 kHz for 4-pin fans) and ensure the fan supports PWM control.
  4. Fan speed monitoring does not work:

    • Cause: Tachometer pin not connected or incorrect wiring.
    • Solution: Ensure the Tach pin is connected to the appropriate input pin on the microcontroller and configured correctly in the code.

FAQs

  1. Can I use a 12V fan with a 5V power supply?

    • No, a 12V fan requires a 12V power supply to operate correctly. Using a lower voltage may prevent the fan from spinning or reduce its performance.
  2. What is the difference between a 3-pin and a 4-pin fan?

    • A 3-pin fan provides speed monitoring via the Tach pin, while a 4-pin fan adds PWM control for precise speed adjustment.
  3. How do I clean a fan?

    • Turn off the power and disconnect the fan. Use compressed air or a soft brush to remove dust and debris from the blades and housing.
  4. Can I connect multiple fans to a single power supply?

    • Yes, as long as the power supply can provide sufficient current for all connected fans. Use a fan hub or splitter if needed.

By following this documentation, you can effectively use and troubleshoot a fan or ventilator in your projects.
