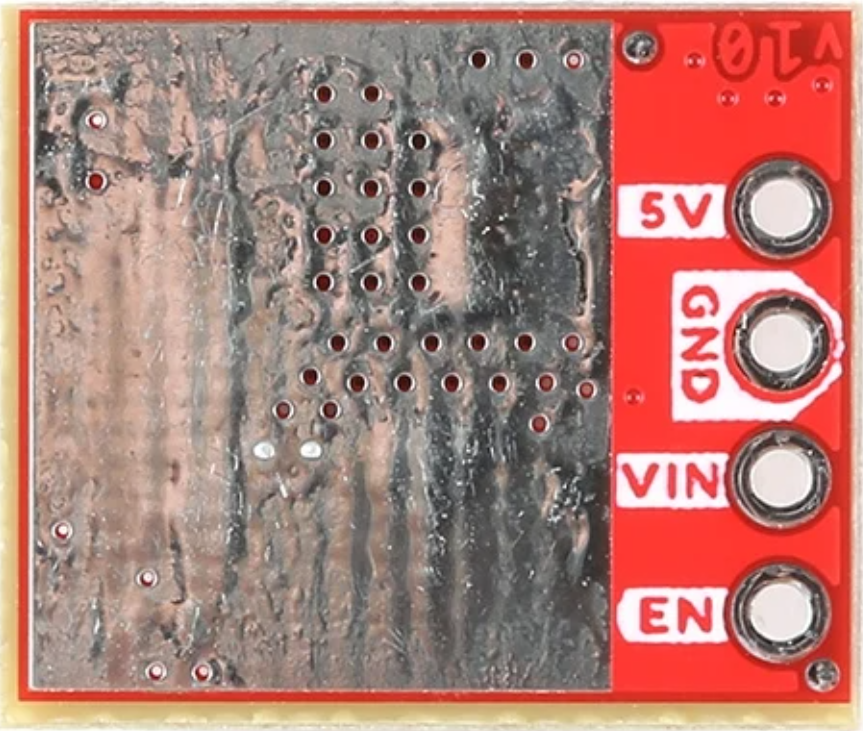

Image of BabyBuck Regulator Breakout 5V
Cirkit Designer LogoDesign with BabyBuck Regulator Breakout 5V in Cirkit Designer

Introduction

The BabyBuck Regulator Breakout 5V (manufacturer part ID: AP63357) by SparkFun is a compact and efficient DC-DC buck converter module. It is designed to step down higher input voltages to a stable 5V output, making it ideal for powering microcontrollers, sensors, and other low-voltage devices. With its small form factor and high efficiency, this breakout board is perfect for projects requiring a reliable 5V power source in a compact space.

Explore Projects Built with BabyBuck Regulator Breakout 5V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Arduino UNO and ESP-8266 Smart Controller with LCD and RTC
Image of Ogie Diagram: A project utilizing BabyBuck Regulator Breakout 5V in a practical application
This circuit is a power management and control system that uses a 12V power supply and a 18650 Li-ion battery pack to provide a stable 5V output through a step-down buck converter. It includes an Arduino UNO, an ESP-8266 controller, a DS1307 RTC module, and a 20x4 I2C LCD display for monitoring and control purposes. The ULN2003A breakout board is used for driving higher current loads.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing BabyBuck Regulator Breakout 5V in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
Image of Autonomus Car: A project utilizing BabyBuck Regulator Breakout 5V in a practical application
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing BabyBuck Regulator Breakout 5V in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BabyBuck Regulator Breakout 5V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Ogie Diagram: A project utilizing BabyBuck Regulator Breakout 5V in a practical application
Battery-Powered Arduino UNO and ESP-8266 Smart Controller with LCD and RTC
This circuit is a power management and control system that uses a 12V power supply and a 18650 Li-ion battery pack to provide a stable 5V output through a step-down buck converter. It includes an Arduino UNO, an ESP-8266 controller, a DS1307 RTC module, and a 20x4 I2C LCD display for monitoring and control purposes. The ULN2003A breakout board is used for driving higher current loads.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing BabyBuck Regulator Breakout 5V in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Autonomus Car: A project utilizing BabyBuck Regulator Breakout 5V in a practical application
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing BabyBuck Regulator Breakout 5V in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers like Arduino, ESP32, or Raspberry Pi Pico.
  • Supplying 5V to sensors, displays, and other peripherals.
  • Battery-powered projects requiring efficient voltage regulation.
  • Replacing linear voltage regulators for improved efficiency and reduced heat dissipation.

Technical Specifications

The BabyBuck Regulator Breakout 5V is built around the AP63357 DC-DC buck converter IC. Below are its key technical details:

Parameter Value
Input Voltage Range 3.8V to 32V
Output Voltage 5V (fixed)
Output Current Up to 3A
Efficiency Up to 90% (depending on input voltage/load)
Switching Frequency 500kHz
Operating Temperature -40°C to +125°C
Dimensions 0.4" x 0.5" (10.2mm x 12.7mm)

Pin Configuration and Descriptions

The BabyBuck Regulator Breakout 5V has four pins for easy integration into your circuit:

Pin Name Description
VIN Input Connect to the input voltage source (3.8V to 32V).
GND Ground Connect to the ground of the input and output circuits.
VOUT Output Provides a stable 5V output. Connect to the load or device requiring 5V power.
EN Enable Active-high enable pin. Pull high to enable the regulator, or low to disable it.

Usage Instructions

How to Use the BabyBuck Regulator Breakout 5V in a Circuit

  1. Connect the Input Voltage (VIN):

    • Ensure the input voltage is within the range of 3.8V to 32V.
    • Connect the positive terminal of your power source to the VIN pin.
    • Connect the negative terminal of your power source to the GND pin.
  2. Connect the Output Voltage (VOUT):

    • Connect the VOUT pin to the device or circuit requiring a 5V power supply.
    • Ensure the total current draw of the connected devices does not exceed 3A.
  3. Enable the Regulator:

    • By default, the regulator is enabled if the EN pin is left floating or pulled high.
    • To disable the regulator, pull the EN pin low.
  4. Add Decoupling Capacitors (Optional):

    • For improved stability, you can add a 10µF capacitor across the VIN and GND pins.
    • Similarly, add a 10µF capacitor across the VOUT and GND pins if needed.

Important Considerations and Best Practices

  • Heat Dissipation: Although the BabyBuck Regulator is highly efficient, ensure proper ventilation if operating near the maximum current (3A) for extended periods.
  • Input Voltage Range: Do not exceed the maximum input voltage of 32V, as this may damage the regulator.
  • Load Requirements: Ensure the connected load does not exceed the 3A output current limit.
  • Enable Pin Usage: If you do not need to control the enable functionality, leave the EN pin unconnected.

Example: Using BabyBuck with an Arduino UNO

The BabyBuck Regulator Breakout 5V can be used to power an Arduino UNO from a 12V power source. Below is an example circuit and Arduino code to demonstrate its usage:

Circuit Connections

  • Connect the 12V power source to the VIN and GND pins of the BabyBuck.
  • Connect the VOUT pin of the BabyBuck to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the BabyBuck to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the BabyBuck Regulator Breakout 5V

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: The EN pin is pulled low or not connected properly.
    • Solution: Ensure the EN pin is left floating or pulled high to enable the regulator.
  2. Overheating:

    • Cause: Excessive current draw or insufficient ventilation.
    • Solution: Reduce the load current or improve airflow around the regulator.
  3. Output Voltage is Unstable:

    • Cause: Insufficient decoupling capacitors or noisy input voltage.
    • Solution: Add a 10µF capacitor across the VIN and GND pins, and another across the VOUT and GND pins.
  4. Regulator is Damaged:

    • Cause: Input voltage exceeded 32V or output current exceeded 3A.
    • Solution: Replace the regulator and ensure the input voltage and load current are within specifications.

FAQs

Q: Can I use the BabyBuck Regulator Breakout 5V with a 24V power source?
A: Yes, the BabyBuck supports input voltages up to 32V, so 24V is within the acceptable range.

Q: Is the output voltage adjustable?
A: No, the output voltage is fixed at 5V.

Q: Can I use the BabyBuck to power a Raspberry Pi?
A: Yes, as long as the total current draw of the Raspberry Pi and connected peripherals does not exceed 3A.

Q: What happens if I connect a load that requires more than 3A?
A: The regulator may overheat or shut down to protect itself. Always ensure the load current is within the 3A limit.
