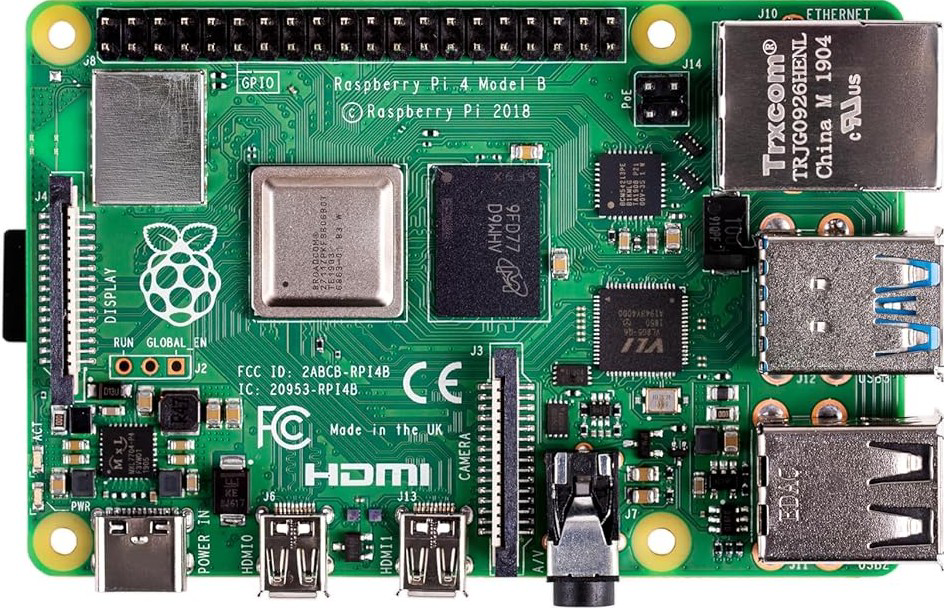

Image of Raspberry Pi 4
Cirkit Designer LogoDesign with Raspberry Pi 4 in Cirkit Designer

Introduction

The Raspberry Pi 4 (Manufacturer Part ID: RPI4-MODBP-4GB) is a compact, affordable single-board computer developed by Raspberry Pi. It features a powerful quad-core processor, multiple USB ports, dual micro-HDMI outputs, and support for various operating systems. With its versatile design, the Raspberry Pi 4 is ideal for a wide range of applications, including education, prototyping, IoT projects, media centers, and more.

Explore Projects Built with Raspberry Pi 4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
Image of smart_power_meter: A project utilizing Raspberry Pi 4 in a practical application
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
Image of VisionTool: A project utilizing Raspberry Pi 4 in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with Audio Capture and Ultrasonic Sensing
Image of pranav: A project utilizing Raspberry Pi 4 in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfacing with a variety of peripherals. It includes a PAM8406 digital audio amplifier connected to a speaker for audio output, an Adafruit MAX9814 microphone amplifier for audio input, and a TTL Serial JPEG Camera for image capture. Additionally, an HC-SR04 ultrasonic sensor is connected for distance measurement. The Raspberry Pi manages these components and likely processes audio, image, and distance data for applications such as a smart assistant or security system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B Powered Projector System with HDMI to VGA Conversion
Image of raspberry to projector: A project utilizing Raspberry Pi 4 in a practical application
This circuit connects a Raspberry Pi 4B to a projector via an HDMI to VGA converter, allowing the Raspberry Pi to output video and audio to the projector. The Raspberry Pi is powered by a 5V power adapter, which is connected to an AC wall plug point.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi 4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of smart_power_meter: A project utilizing Raspberry Pi 4 in a practical application
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VisionTool: A project utilizing Raspberry Pi 4 in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pranav: A project utilizing Raspberry Pi 4 in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with Audio Capture and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central controller, interfacing with a variety of peripherals. It includes a PAM8406 digital audio amplifier connected to a speaker for audio output, an Adafruit MAX9814 microphone amplifier for audio input, and a TTL Serial JPEG Camera for image capture. Additionally, an HC-SR04 ultrasonic sensor is connected for distance measurement. The Raspberry Pi manages these components and likely processes audio, image, and distance data for applications such as a smart assistant or security system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of raspberry to projector: A project utilizing Raspberry Pi 4 in a practical application
Raspberry Pi 4B Powered Projector System with HDMI to VGA Conversion
This circuit connects a Raspberry Pi 4B to a projector via an HDMI to VGA converter, allowing the Raspberry Pi to output video and audio to the projector. The Raspberry Pi is powered by a 5V power adapter, which is connected to an AC wall plug point.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Education and Learning: Teaching programming, electronics, and computer science.
  • IoT and Automation: Building smart home devices, sensors, and automation systems.
  • Media Centers: Running media server software like Kodi or Plex.
  • Prototyping: Developing and testing hardware and software projects.
  • Edge Computing: Deploying lightweight AI and machine learning models.
  • Retro Gaming: Emulating classic gaming consoles.

Technical Specifications

Key Technical Details

Specification Value
Processor Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory 4GB LPDDR4-3200 SDRAM
Storage MicroSD card slot (supports up to 1TB)
USB Ports 2 × USB 3.0, 2 × USB 2.0
Video Output 2 × micro-HDMI ports (up to 4K resolution)
Networking Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0
GPIO Header 40-pin GPIO header (2.54mm pitch)
Power Supply 5V/3A via USB-C or GPIO pins
Operating System Support Raspberry Pi OS, Ubuntu, and other Linux distributions
Dimensions 85.6mm × 56.5mm × 17mm

Pin Configuration and Descriptions

The Raspberry Pi 4 features a 40-pin GPIO header for interfacing with external components. Below is a summary of the pin configuration:

Pin Number Pin Name Functionality
1 3.3V Power 3.3V power supply
2 5V Power 5V power supply
3 GPIO2 (SDA1) I2C Data
4 5V Power 5V power supply
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD0) UART Transmit
9 Ground Ground
10 GPIO15 (RXD0) UART Receive
... ... ... (Refer to the official GPIO pinout)

For the full GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 4 in a Circuit

  1. Powering the Raspberry Pi 4:

    • Use a 5V/3A USB-C power adapter for reliable operation.
    • Alternatively, power the board via the 5V and GND pins on the GPIO header.
  2. Connecting Peripherals:

    • Attach a micro-HDMI cable to connect the Raspberry Pi 4 to a monitor.
    • Connect a USB keyboard and mouse to the USB ports.
    • Insert a microSD card with a compatible operating system (e.g., Raspberry Pi OS).
  3. Using the GPIO Pins:

    • Use the GPIO pins to interface with external components like LEDs, sensors, and motors.
    • Ensure proper voltage levels (3.3V logic) to avoid damaging the board.
  4. Networking:

    • Connect to the internet via Ethernet or Wi-Fi for software updates and remote access.

Important Considerations and Best Practices

  • Cooling: The Raspberry Pi 4 can get warm under heavy loads. Use a heatsink or fan for better thermal management.
  • Static Protection: Handle the board with care to avoid static discharge, which can damage components.
  • Power Supply: Use a high-quality power adapter to prevent undervoltage issues.
  • Software Updates: Regularly update the operating system and firmware for optimal performance and security.

Example: Blinking an LED with Raspberry Pi 4 and Python

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:


Import the necessary libraries

import RPi.GPIO as GPIO # Library for GPIO control import time # Library for adding delays

Set up GPIO mode

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setwarnings(False) # Disable warnings

Define the GPIO pin for the LED

LED_PIN = 17

Set up the LED pin as an output

GPIO.setup(LED_PIN, GPIO.OUT)

Blink the LED in a loop

try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()


Circuit Diagram for the Example

  • Connect the positive leg of the LED to GPIO pin 17.
  • Connect the negative leg of the LED to a 330-ohm resistor, and then to a GND pin.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi 4 does not boot:

    • Ensure the microSD card is properly inserted and contains a valid operating system.
    • Check the power supply for sufficient voltage and current.
  2. Overheating:

    • Use a heatsink or fan to improve cooling.
    • Avoid running resource-intensive tasks for extended periods without proper cooling.
  3. No display on the monitor:

    • Verify the micro-HDMI cable is securely connected.
    • Ensure the monitor is set to the correct input source.
    • Check the operating system configuration for display settings.
  4. GPIO pins not working:

    • Double-check the pin connections and ensure the correct pin numbering is used in the code.
    • Verify that the GPIO pins are not damaged or shorted.

FAQs

  • Q: Can I power the Raspberry Pi 4 using a power bank?
    A: Yes, as long as the power bank provides a stable 5V/3A output.

  • Q: What operating systems are compatible with the Raspberry Pi 4?
    A: The Raspberry Pi 4 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

  • Q: Can I connect multiple displays to the Raspberry Pi 4?
    A: Yes, the Raspberry Pi 4 supports dual displays via its two micro-HDMI ports.

  • Q: How do I reset the Raspberry Pi 4?
    A: Disconnect and reconnect the power supply to perform a hard reset.

For additional support, refer to the official Raspberry Pi documentation and community forums.
