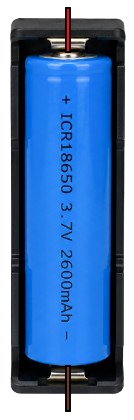

The 18650 in case is a cylindrical lithium-ion rechargeable battery housed in a protective case. This design ensures safe operation and prevents physical damage to the battery, making it ideal for applications requiring durability and reliability. The 18650 battery is widely used in portable electronics, power banks, flashlights, and DIY electronics projects due to its high energy density, long cycle life, and compact size.
Explore Projects Built with 18650 in case
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit consists of two FC-51 IR Obstacle Sensors connected to two KF-301 relays, which likely serve as triggers for switching the relays. Four gearmotors are powered through two XL6009E1 Boost Converters, which are likely used to step up the voltage from a 2-cell 18650 Li-ion battery pack. The relays appear to control the power flow to the boost converters, and thus to the gearmotors, based on the obstacle detection inputs.
This circuit is a simple alarm system powered by a 18650 Li-Ion battery, regulated to 5V by a 7805 voltage regulator. It uses a reed switch to detect magnetic fields, which triggers a BC547 transistor to activate a buzzer when the switch is closed.
This circuit is an emergency alert system that uses a NUCLEO-F072RB microcontroller to send SMS alerts and make calls via a SIM800L GSM module, while obtaining location data from a GPS NEO 6M module. The system is powered by a Li-ion battery and includes a TP4056 module for battery charging and protection, with a rocker switch to control power to the microcontroller.
This circuit is a portable power supply system that uses multiple 18650 Li-ion batteries to provide a stable 5V output through a boost converter. It includes a fast charging module with a USB-C input for recharging the batteries and a battery indicator for monitoring the battery status. The system powers a Lora G2 Node Station, making it suitable for wireless communication applications.
The following table outlines the key technical specifications of a typical 18650 battery in a case. Note that actual values may vary depending on the manufacturer and specific model.
Parameter
Specification
Nominal Voltage
3.7V
Fully Charged Voltage
4.2V
Capacity Range
2000mAh to 3500mAh
Maximum Discharge Current
10A to 30A (depending on the model)
Dimensions (with case)
~18.6mm diameter, ~70mm length
Weight (with case)
~50g
Operating Temperature
-20°C to 60°C
Cycle Life
~300 to 500 charge/discharge cycles
Pin Configuration and Descriptions
The 18650 in case typically includes two terminals for electrical connections:
Pin Name
Description
Positive (+)
The positive terminal of the battery. Connect to the positive side of the circuit.
Negative (-)
The negative terminal of the battery. Connect to the ground or negative side of the circuit.
Some cases may include additional features such as:
Protection Circuit Module (PCM): Prevents overcharging, over-discharging, and short circuits.
USB Charging Port: Allows direct charging via USB.
Usage Instructions
How to Use the 18650 in a Circuit
Identify the Terminals: Ensure you correctly identify the positive (+) and negative (-) terminals on the battery case.
Connect to the Circuit: Use appropriate wires or connectors to attach the battery to your circuit. Ensure proper polarity to avoid damage.
Charging the Battery:
Use a compatible lithium-ion battery charger.
If the case includes a USB charging port, connect it to a USB power source.
Monitor Voltage Levels: Avoid discharging the battery below 3.0V or overcharging it beyond 4.2V to maintain battery health.
Important Considerations and Best Practices
Avoid Short Circuits: Ensure the terminals do not come into contact with each other or conductive materials.
Use a Protection Circuit: If the case does not include a PCM, consider adding one to prevent overcharging or over-discharging.
Temperature Management: Avoid exposing the battery to extreme temperatures, as this can degrade performance and safety.
Storage: Store the battery in a cool, dry place when not in use. Charge it to ~50% capacity for long-term storage.
Example: Using 18650 with Arduino UNO
The 18650 battery can power an Arduino UNO via its VIN pin. Below is an example of connecting the battery to the Arduino and reading its voltage using an analog pin.
Circuit Setup:
Connect the positive terminal of the 18650 to the VIN pin of the Arduino.
Connect the negative terminal to the GND pin.
Use a voltage divider circuit to measure the battery voltage safely.
Code Example:
// Define analog pin for voltage measurement
const int voltagePin = A0;
// Voltage divider resistor values (in ohms)
const float R1 = 10000.0; // Resistor connected to battery positive
const float R2 = 10000.0; // Resistor connected to ground
void setup() {
Serial.begin(9600); // Initialize serial communication
}
void loop() {
int rawValue = analogRead(voltagePin); // Read analog value
float voltage = (rawValue / 1023.0) * 5.0; // Convert to voltage
voltage = voltage * (R1 + R2) / R2; // Adjust for voltage divider
Serial.print("Battery Voltage: ");
Serial.print(voltage);
Serial.println(" V");
delay(1000); // Wait 1 second before next reading
}
Note: Ensure the voltage divider reduces the battery voltage to a safe level for the Arduino's analog input (max 5V).
Troubleshooting and FAQs
Common Issues
Battery Not Charging:
Cause: Faulty charger or damaged protection circuit.
Solution: Verify the charger is functioning and compatible with the battery. Check for damage to the case or PCM.
Battery Drains Quickly:
Cause: High current draw or degraded battery capacity.
Solution: Reduce the load on the battery or replace it if the capacity has significantly decreased.
Overheating During Use:
Cause: Excessive current draw or poor ventilation.
Solution: Ensure the load does not exceed the battery's maximum discharge current. Improve airflow around the battery.
No Output Voltage:
Cause: Protection circuit triggered due to over-discharge or short circuit.
Solution: Recharge the battery to reset the protection circuit.
FAQs
Q: Can I use the 18650 in case without a protection circuit?
A: It is not recommended. A protection circuit ensures safe operation by preventing overcharging, over-discharging, and short circuits.
Q: How do I know when the battery is fully charged?
A: Most chargers have an indicator light that turns green when charging is complete. Alternatively, measure the voltage; a fully charged 18650 reads ~4.2V.
Q: Can I connect multiple 18650 batteries in parallel or series?
A: Yes, but ensure all batteries have the same capacity and charge level. Use a battery management system (BMS) for safety.
Q: How long does an 18650 battery last?
A: The lifespan depends on usage and care but typically ranges from 300 to 500 charge cycles.
