How to Use SSR : Examples, Pinouts, and Specs

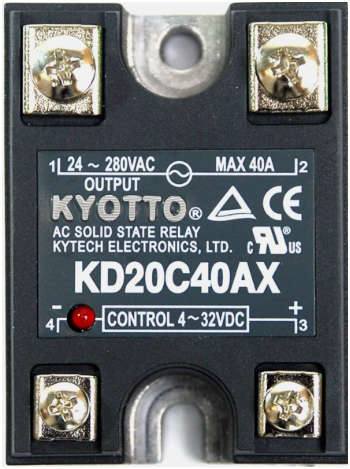

Image of SSR
Cirkit Designer LogoDesign with SSR in Cirkit Designer

Introduction

A Solid State Relay (SSR) is an electronic switching device that uses semiconductor components, such as thyristors, triacs, or transistors, to control the flow of electrical power to a load. Unlike mechanical relays, SSRs have no moving parts, which allows for faster switching, silent operation, and a significantly longer lifespan. SSRs are commonly used in applications requiring high-speed switching, precise control, and reliability.

Explore Projects Built with SSR

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Temperature-Controlled Heating System with SSR and Titanium Resistor
Image of Wire Cut Four Slider 33-2 & 33-3 (Old): A project utilizing SSR  in a practical application
This circuit is a temperature control system that uses a temperature controller to regulate a heating titanium resistor via a solid-state relay (SSR). The power transformer supplies the necessary voltage to the temperature controller, which in turn controls the SSR to manage the heating element.
Cirkit Designer LogoOpen Project in Cirkit Designer
PID Temperature Control System with Thermocouple and SSR
Image of IR: A project utilizing SSR  in a practical application
This circuit is a temperature control system that uses a thermocouple to measure temperature and a PID controller to regulate it. The PID controller drives a solid-state relay (SSR) to control an external load, with power supplied through an AC inlet socket.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Vibration and Smoke Detection System with Web Control and Safety Indicators
Image of AMAN??: A project utilizing SSR  in a practical application
This circuit is designed to monitor environmental conditions using a vibration sensor and a smoke detector, with the ability to control an exhaust fan and a DC motor via solid-state relays. The ESP32 microcontroller is programmed to provide web server functionality for remote monitoring and control, and uses LEDs as status indicators for different levels of alert. The power supply and step-down module ensure appropriate voltage levels for the components, and the SSRs are used to safely switch high-current loads like the fan and motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Wi-Fi Controlled Servo Gate System with Pushbutton Activation
Image of Blastgate: A project utilizing SSR  in a practical application
This circuit uses an ESP32 microcontroller to control five servos and two solid-state relays (SSRs) based on the state of five pushbuttons. The servos are used to open and close gates, while the SSRs control two motors, which are activated depending on the number of active gates.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SSR

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Wire Cut Four Slider 33-2 & 33-3 (Old): A project utilizing SSR  in a practical application
Temperature-Controlled Heating System with SSR and Titanium Resistor
This circuit is a temperature control system that uses a temperature controller to regulate a heating titanium resistor via a solid-state relay (SSR). The power transformer supplies the necessary voltage to the temperature controller, which in turn controls the SSR to manage the heating element.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IR: A project utilizing SSR  in a practical application
PID Temperature Control System with Thermocouple and SSR
This circuit is a temperature control system that uses a thermocouple to measure temperature and a PID controller to regulate it. The PID controller drives a solid-state relay (SSR) to control an external load, with power supplied through an AC inlet socket.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of AMAN??: A project utilizing SSR  in a practical application
ESP32-Based Vibration and Smoke Detection System with Web Control and Safety Indicators
This circuit is designed to monitor environmental conditions using a vibration sensor and a smoke detector, with the ability to control an exhaust fan and a DC motor via solid-state relays. The ESP32 microcontroller is programmed to provide web server functionality for remote monitoring and control, and uses LEDs as status indicators for different levels of alert. The power supply and step-down module ensure appropriate voltage levels for the components, and the SSRs are used to safely switch high-current loads like the fan and motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Blastgate: A project utilizing SSR  in a practical application
ESP32-Based Wi-Fi Controlled Servo Gate System with Pushbutton Activation
This circuit uses an ESP32 microcontroller to control five servos and two solid-state relays (SSRs) based on the state of five pushbuttons. The servos are used to open and close gates, while the SSRs control two motors, which are activated depending on the number of active gates.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Industrial automation and process control
  • Heating, ventilation, and air conditioning (HVAC) systems
  • Motor control and lighting systems
  • Home appliances and smart home devices
  • Temperature control systems (e.g., ovens, furnaces)
  • High-frequency switching applications

Technical Specifications

Key Technical Details

Parameter Value/Range
Input Control Voltage Typically 3-32 VDC
Output Voltage Range 24-480 VAC (varies by model)
Output Current Rating 2A to 100A (depending on the SSR)
Switching Speed Typically <1 ms
Isolation Voltage Up to 4000 VAC
Operating Temperature -30°C to +80°C
Dielectric Strength 2500-4000 VAC
Load Type Resistive or inductive loads

Pin Configuration and Descriptions

Pin Number Name Description
1 Input (+) Positive terminal for the control signal (DC voltage input).
2 Input (-) Negative terminal for the control signal (DC voltage input).
3 Load Terminal One side of the AC load connection.
4 Load Terminal The other side of the AC load connection.

Note: Some SSRs may have additional pins or terminals for features like status indicators or heat sink connections. Always refer to the specific datasheet for your SSR model.

Usage Instructions

How to Use the SSR in a Circuit

  1. Control Signal Connection: Connect the control signal (e.g., from a microcontroller or switch) to the input terminals of the SSR. Ensure the control voltage is within the specified range (e.g., 3-32 VDC).
  2. Load Connection: Connect the AC load (e.g., a motor, light, or heater) to the load terminals of the SSR. Ensure the load voltage and current are within the SSR's rated capacity.
  3. Power Supply: Provide the appropriate AC power supply to the load circuit.
  4. Heat Dissipation: If the SSR is rated for high current, attach a heat sink or cooling mechanism to prevent overheating.

Important Considerations and Best Practices

  • Heat Management: SSRs can generate heat during operation. Use a heat sink or fan for high-current applications to ensure proper thermal management.
  • Snubber Circuit: For inductive loads, use a snubber circuit to suppress voltage spikes and protect the SSR.
  • Isolation: Ensure proper electrical isolation between the control and load sides to prevent damage to sensitive components.
  • Mounting: Secure the SSR to a flat, heat-conductive surface for optimal heat dissipation.
  • Polarity: Observe the correct polarity when connecting the control signal to avoid damage to the SSR.

Example: Connecting an SSR to an Arduino UNO

Below is an example of how to control an SSR using an Arduino UNO to switch an AC load (e.g., a light bulb).

Circuit Diagram

  • Connect the SSR's input terminals to the Arduino's digital pin and ground.
  • Connect the AC load to the SSR's load terminals.
  • Provide an appropriate AC power supply to the load circuit.

Arduino Code

// Define the pin connected to the SSR control input
const int ssrPin = 7;

void setup() {
  pinMode(ssrPin, OUTPUT); // Set the SSR pin as an output
}

void loop() {
  digitalWrite(ssrPin, HIGH); // Turn on the SSR (AC load ON)
  delay(5000);               // Keep the load ON for 5 seconds
  digitalWrite(ssrPin, LOW);  // Turn off the SSR (AC load OFF)
  delay(5000);               // Keep the load OFF for 5 seconds
}

Note: Ensure the SSR's input voltage matches the Arduino's output voltage (typically 5V). Use a resistor if necessary to limit current.

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
SSR does not switch the load Incorrect control voltage or polarity Verify the control voltage and polarity match the SSR's specifications.
Load flickers or does not stay ON Insufficient control signal current Ensure the control signal provides enough current to activate the SSR.
SSR overheats High current without proper cooling Attach a heat sink or improve ventilation around the SSR.
Load does not turn OFF Leakage current in the SSR Use an SSR with lower leakage current or add a bleeder resistor.

FAQs

  1. Can SSRs be used with DC loads?

    • Most SSRs are designed for AC loads. For DC loads, use a DC-specific SSR.
  2. What is the advantage of an SSR over a mechanical relay?

    • SSRs offer faster switching, silent operation, and longer lifespan due to the absence of moving parts.
  3. Do SSRs require a heat sink?

    • For high-current applications, a heat sink is recommended to prevent overheating.
  4. Can I use an SSR with an Arduino or Raspberry Pi?

    • Yes, SSRs are compatible with microcontrollers. Ensure the control voltage and current match the SSR's input requirements.

By following this documentation, you can effectively integrate an SSR into your electronic projects for reliable and efficient switching.
