How to Use Lipo 14.8V 3300 mAh: Examples, Pinouts, and Specs

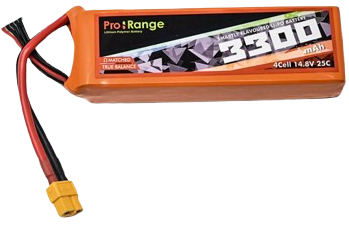

The Lipo 14.8V 3300 mAh is a lithium polymer battery designed for applications requiring high energy density and lightweight power sources. With a nominal voltage of 14.8 volts and a capacity of 3300 milliamp hours, this battery is ideal for powering devices such as remote-controlled (RC) vehicles, drones, robotics, and other portable electronics. Its compact design and high discharge rates make it a popular choice for hobbyists and professionals alike.

• RC vehicles (cars, boats, planes)
• Drones and quadcopters
• Robotics and automation systems
• Portable power supplies for DIY electronics
• High-performance flashlights and tools

The following table outlines the key technical details of the Lipo 14.8V 3300 mAh battery:

The Lipo 14.8V 3300 mAh battery typically includes two connectors: a main power connector and a balance connector. The pin configuration is as follows:

1. Connecting the Battery:

   • Use the main power connector (e.g., XT60) to supply power to your circuit or device.
   • Connect the balance connector to a compatible LiPo charger for safe and balanced charging.

2. Charging the Battery:

   • Use a LiPo-compatible charger with a balance charging feature.
   • Set the charger to 4S (14.8V) mode and a charge current of 3.3A (1C rate).
   • Ensure the charging voltage does not exceed 16.8V.

3. Discharging the Battery:

   • Avoid discharging below 3.0V per cell (12.0V total for a 4S battery) to prevent damage.
   • Use a battery monitor or low-voltage alarm to track the voltage during use.

4. Mounting and Handling:

   • Secure the battery in your device using straps or holders to prevent movement.
   • Avoid puncturing, crushing, or exposing the battery to high temperatures.

• Safety First: Always handle LiPo batteries with care to avoid fire or explosion risks.
• Storage: Store the battery at a voltage of 3.7-3.8V per cell (14.8-15.2V total) in a cool, dry place.
• Inspection: Regularly check for swelling, damage, or loose connectors before use.
• Compatibility: Ensure your device and charger are compatible with a 4S LiPo battery.

While the Lipo 14.8V 3300 mAh battery cannot be directly connected to an Arduino UNO due to its high voltage, you can use a voltage regulator (e.g., LM2596) to step down the voltage to 5V. Below is an example circuit and code:

1. Connect the battery's positive and negative terminals to the input of the voltage regulator.
2. Set the regulator output to 5V using a multimeter.
3. Connect the regulator's output to the Arduino UNO's 5V and GND pins.

// Example code to read a sensor powered by the Lipo battery
// Ensure the voltage regulator provides a stable 5V output to the Arduino

const int sensorPin = A0; // Analog pin connected to the sensor
int sensorValue = 0;      // Variable to store sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor
  delay(1000); // Wait for 1 second before the next reading
}

1. Battery Swelling:

   • Cause: Overcharging, over-discharging, or physical damage.
   • Solution: Stop using the battery immediately. Dispose of it safely at a recycling center.

2. Battery Not Charging:

   • Cause: Faulty charger, damaged balance connector, or incorrect settings.
   • Solution: Verify charger settings (4S, 16.8V, 3.3A). Check connectors for damage.

3. Device Shuts Down Prematurely:

   • Cause: Low voltage cutoff triggered by the device.
   • Solution: Recharge the battery and ensure it is not over-discharged.

4. Battery Overheats During Use:

   • Cause: Excessive current draw or poor ventilation.
   • Solution: Ensure the load does not exceed the battery's maximum discharge rate (99A for 30C).

Q1: Can I use this battery for a 12V device?
A1: Yes, but you will need a voltage regulator to step down the voltage to 12V.

Q2: How long will the battery last on a single charge?
A2: Battery life depends on the load. For example, at a 10A load, the battery will last approximately 0.33 hours (20 minutes).

Q3: Is it safe to leave the battery connected to the charger?
A3: No, always disconnect the battery after charging to prevent overcharging or damage.

Q4: Can I use this battery in cold weather?
A4: LiPo batteries perform poorly in extreme cold. Keep the battery warm before use for optimal performance.
