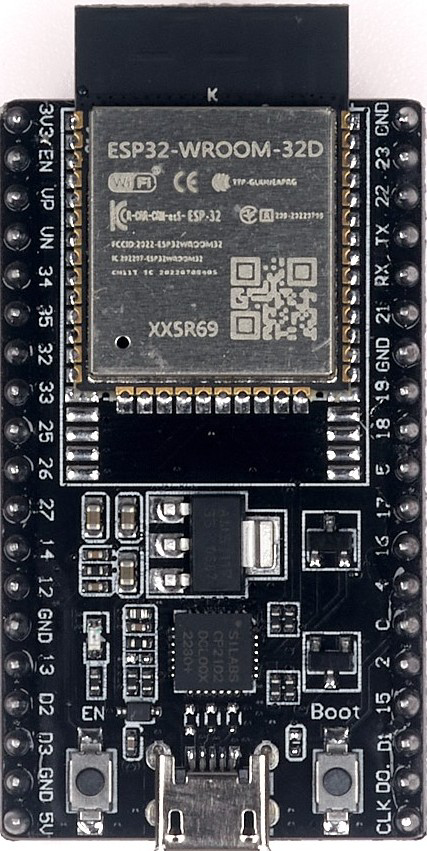

Image of ESP32-DevKitC V4
Cirkit Designer LogoDesign with ESP32-DevKitC V4 in Cirkit Designer

Introduction

The ESP32-DevKitC V4 is a compact and versatile development board manufactured by ESP32. It is built around the powerful ESP32 chip, which integrates Wi-Fi and Bluetooth capabilities, making it an excellent choice for IoT (Internet of Things) applications, smart devices, and rapid prototyping. The board is designed to provide a simple and efficient platform for developers to create connected devices with minimal effort.
