How to Use Raspberry Pi 4B: Examples, Pinouts, and Specs

Introduction

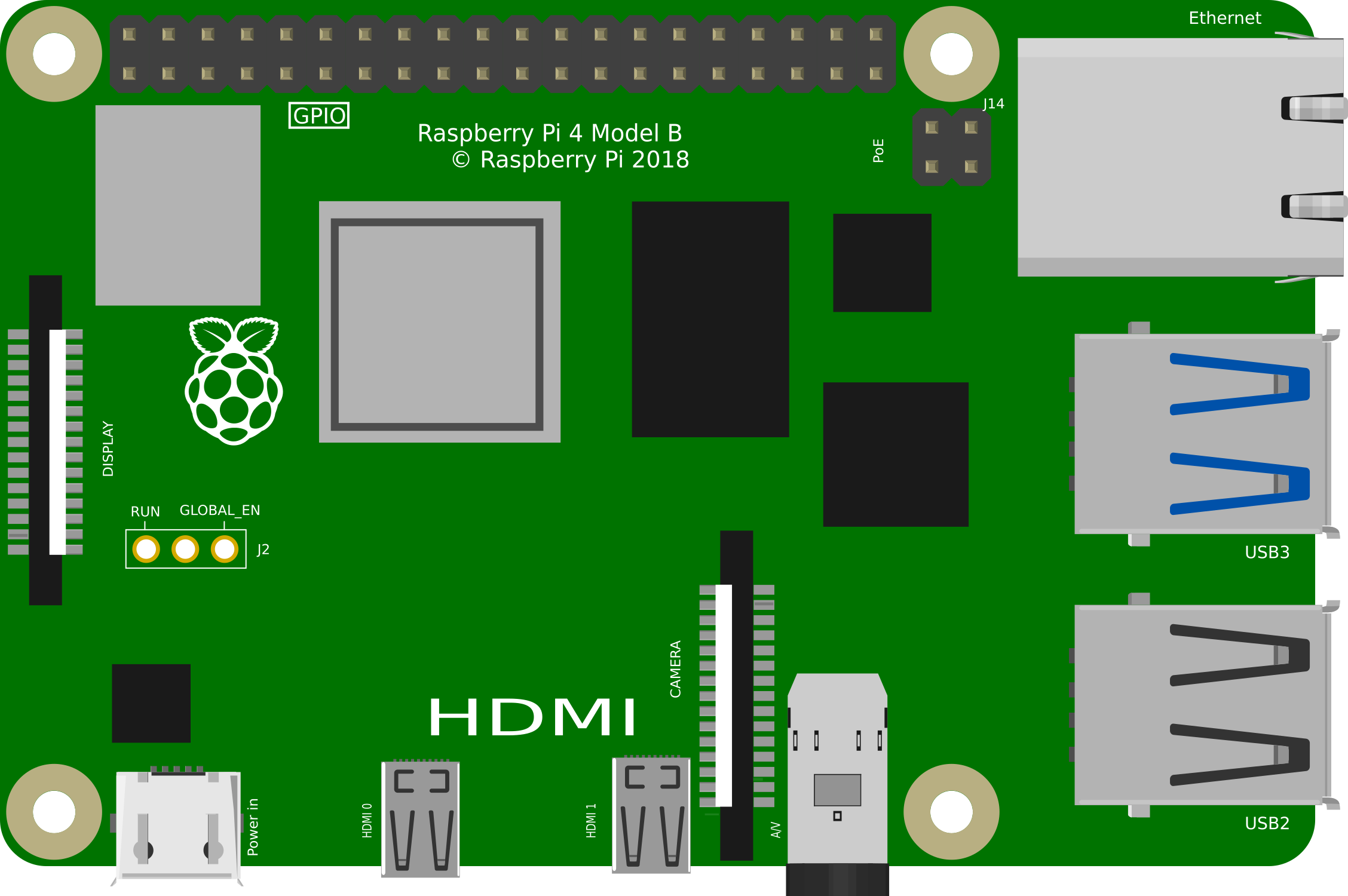

The Raspberry Pi 4B is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, up to 8GB of RAM, USB 3.0 ports, dual micro-HDMI outputs, and built-in wireless connectivity. This versatile device is ideal for programming, media centers, IoT (Internet of Things) projects, robotics, and more. Its small form factor and robust performance make it a popular choice for hobbyists, educators, and professionals alike.

Common applications include:

• Building media centers using software like Kodi or Plex.
• Hosting lightweight web servers or cloud storage solutions.
• Developing IoT devices and smart home automation systems.
• Learning programming languages such as Python, Java, or C++.
• Running retro gaming emulators or lightweight desktop environments.

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring

This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.

Open Project in Cirkit Designer

Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing

This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.

Open Project in Cirkit Designer

Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors

This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.

Open Project in Cirkit Designer

Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism

This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.

Open Project in Cirkit Designer

Technical Specifications

The Raspberry Pi 4B offers the following key technical details:

GPIO Pin Configuration

The Raspberry Pi 4B features a 40-pin GPIO header. Below is a summary of the pin configuration:

For a complete GPIO pinout diagram, refer to the official Raspberry Pi documentation.

Usage Instructions

Setting Up the Raspberry Pi 4B

1. Prepare the microSD Card:
   • Download the Raspberry Pi OS (or another compatible OS) from the official Raspberry Pi website.
   • Use software like Balena Etcher to flash the OS image onto a microSD card.
2. Connect Peripherals:
   • Insert the microSD card into the Raspberry Pi.
   • Connect a keyboard, mouse, and monitor via USB and micro-HDMI ports.
   • Optionally, connect to a network via Ethernet or Wi-Fi.
3. Power On:
   • Connect a 5V/3A USB-C power supply to the Raspberry Pi.
   • The device will boot into the OS setup screen.

Using GPIO Pins

The GPIO pins can be used to interface with external components like LEDs, sensors, and motors. Below is an example of controlling an LED using Python:

# Import the GPIO library
import RPi.GPIO as GPIO
import time

# Set the GPIO mode to BCM (Broadcom pin numbering)
GPIO.setmode(GPIO.BCM)

# Define the GPIO pin connected to the LED
LED_PIN = 18

# Set the LED pin as an output
GPIO.setup(LED_PIN, GPIO.OUT)

try:
    while True:
        GPIO.output(LED_PIN, GPIO.HIGH)  # Turn the LED on
        time.sleep(1)                   # Wait for 1 second
        GPIO.output(LED_PIN, GPIO.LOW)  # Turn the LED off
        time.sleep(1)                   # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings on exit
    GPIO.cleanup()

Best Practices

• Use a high-quality power supply to ensure stable operation.
• Avoid shorting GPIO pins or connecting them to voltages higher than 3.3V.
• Use heat sinks or a fan for cooling during intensive tasks.
• Regularly update the OS and firmware for optimal performance and security.

Troubleshooting and FAQs

Common Issues

1. The Raspberry Pi does not boot:

   • Ensure the microSD card is properly inserted and contains a valid OS image.
   • Verify the power supply provides sufficient current (5V/3A).
   • Check for activity on the green LED (indicates SD card access).

2. No display on the monitor:

   • Confirm the micro-HDMI cable is connected to the correct port (HDMI0).
   • Ensure the monitor is powered on and set to the correct input source.
   • Try a different cable or monitor if the issue persists.

3. Wi-Fi connectivity issues:

   • Verify the Wi-Fi credentials are correct.
   • Check if the Wi-Fi network is within range.
   • Update the OS to ensure compatibility with the Wi-Fi module.

FAQs

1. Can I power the Raspberry Pi 4B via GPIO pins?
   Yes, you can power the Raspberry Pi through the 5V and GND GPIO pins, but this bypasses the onboard power management and is not recommended for beginners.

2. What operating systems are compatible with the Raspberry Pi 4B?
   The Raspberry Pi 4B supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions. It can also run lightweight versions of Windows 10 IoT Core.

3. How do I enable SSH on the Raspberry Pi?
   Place an empty file named ssh (without any extension) in the boot partition of the microSD card before the first boot. This will enable SSH access.

By following this documentation, users can effectively set up and utilize the Raspberry Pi 4B for a variety of projects.
