How to Use Esp32s Arun: Examples, Pinouts, and Specs

Design with Esp32s Arun in Cirkit Designer

Introduction

The ESP32S Arun is a powerful and versatile microcontroller designed for Internet of Things (IoT) applications. It integrates both Wi-Fi and Bluetooth capabilities, enabling seamless wireless communication. With its multiple GPIO pins, ADCs (Analog-to-Digital Converters), and support for various communication protocols such as I2C, SPI, and UART, the ESP32S Arun is ideal for building connected devices, smart home systems, wearable technology, and industrial automation solutions.

Common applications of the ESP32S Arun include:

Smart home devices (e.g., smart lights, thermostats)
Wearable technology
Industrial IoT systems
Wireless sensor networks
Robotics and automation
Prototyping and educational projects

Explore Projects Built with Esp32s Arun

ESP32-Based Remote-Controlled Servo System with GPS and IMU Integration

This circuit integrates an ESP32 microcontroller with an AR610 receiver, an MPU-6050 accelerometer, a Neo 6M GPS module, and multiple servos. The ESP32 processes input signals from the AR610 receiver and MPU-6050, while controlling the servos and receiving GPS data for navigation or control purposes.

Open Project in Cirkit Designer

ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor

This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.

Open Project in Cirkit Designer

ESP32-Based Environmental Monitoring System with Ultrasonic, Gas, and IR Sensors

This circuit features an ESP32 microcontroller as the central processing unit, interfacing with a variety of sensors and output devices. It includes an HC-SR04 ultrasonic sensor for distance measurement, an IR sensor for object detection, an MQ-2 gas sensor for detecting combustible gases, and an OLED display for data visualization. Additionally, a Servomotor SG90 is connected for actuation purposes. The ESP32 reads sensor data and controls the servo based on programmed logic, which is not provided in the code input.

Open Project in Cirkit Designer

Arduino and ESP32-Based Environmental Monitoring System with Wi-Fi Connectivity

This circuit integrates an Arduino UNO and an ESP32 microcontroller to monitor environmental parameters using various sensors, including an MQ135 gas sensor, a BME/BMP280 temperature and pressure sensor, and a GP2Y1010AU0F dust sensor. The ESP32 handles data communication and sensor interfacing, while the Arduino UNO provides additional I/O support and power distribution.

Open Project in Cirkit Designer

Technical Specifications

The ESP32S Arun offers robust performance and flexibility. Below are its key technical specifications:

Specification	Details
Microcontroller	Xtensa® dual-core 32-bit LX6 processor
Clock Speed	Up to 240 MHz
Flash Memory	4 MB (external)
SRAM	520 KB
Wi-Fi	802.11 b/g/n
Bluetooth	Bluetooth 4.2 (Classic and BLE)
GPIO Pins	34 (multipurpose, configurable)
ADC Channels	18 (12-bit resolution)
Communication Protocols	I2C, SPI, UART, CAN, PWM, I2S
Operating Voltage	3.3V
Input Voltage Range	3.0V to 3.6V
Power Consumption	Ultra-low power consumption in deep sleep mode (as low as 10 µA)
Operating Temperature	-40°C to 85°C
Dimensions	25.5 mm x 18 mm

Pin Configuration and Descriptions

The ESP32S Arun has a total of 38 pins, with 34 GPIO pins that can be configured for various functions. Below is a table summarizing the key pins and their descriptions:

Pin Name	Type	Description
VIN	Power Input	Input voltage (3.3V to 3.6V)
GND	Ground	Ground connection
GPIO0	GPIO/Boot Mode	General-purpose I/O, used for boot mode selection during startup
GPIO1 (TXD0)	UART TX	UART0 transmit pin
GPIO3 (RXD0)	UART RX	UART0 receive pin
GPIO12-15	GPIO/ADC	General-purpose I/O, ADC capable
GPIO16-17	GPIO	General-purpose I/O
GPIO18-19	SPI	SPI clock (SCK) and data (MOSI/MISO)
GPIO21	I2C SDA	I2C data line
GPIO22	I2C SCL	I2C clock line
EN	Enable	Chip enable pin (active high)
BOOT	Boot Mode	Used to enter bootloader mode

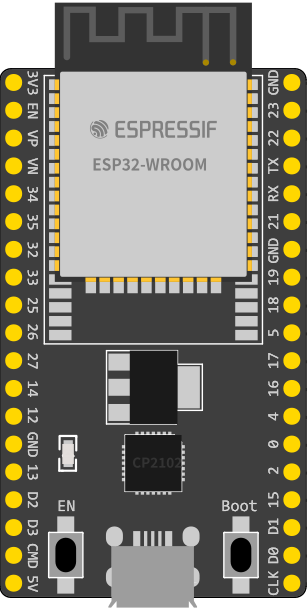

For a complete pinout diagram, refer to the official ESP32S Arun datasheet.

Usage Instructions

How to Use the ESP32S Arun in a Circuit

Powering the ESP32S Arun: Connect the VIN pin to a 3.3V power source and GND to ground. Ensure the input voltage does not exceed 3.6V to avoid damaging the microcontroller.
Programming the ESP32S Arun: Use a USB-to-serial adapter to connect the ESP32S Arun to your computer. Install the necessary drivers and use the Arduino IDE or ESP-IDF (Espressif IoT Development Framework) for programming.
Connecting Peripherals: Use the GPIO pins to connect sensors, actuators, or other peripherals. Configure the pins in your code as input or output as needed.
Wireless Communication: Use the built-in Wi-Fi and Bluetooth modules to connect to networks or pair with other devices.

Important Considerations and Best Practices

Always use a level shifter when interfacing the ESP32S Arun with 5V logic devices, as its GPIO pins operate at 3.3V.
Avoid drawing excessive current from the GPIO pins. Use external transistors or relays for high-power loads.
Use decoupling capacitors near the power pins to ensure stable operation.
When using ADC pins, avoid noisy signals and ensure proper grounding to achieve accurate readings.

Example Code for Arduino UNO Integration

Below is an example of how to use the ESP32S Arun with the Arduino IDE to connect to a Wi-Fi network:

#include <WiFi.h> // Include the Wi-Fi library for ESP32

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000); // Wait for a second to stabilize

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start Wi-Fi connection

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Troubleshooting and FAQs

Common Issues and Solutions

ESP32S Arun Not Connecting to Wi-Fi
- Ensure the SSID and password are correct.
- Check if the router is within range and supports 2.4 GHz Wi-Fi (ESP32 does not support 5 GHz).
- Restart the ESP32S Arun and try again.
Microcontroller Not Detected by Computer
- Verify that the USB-to-serial adapter is properly connected.
- Install the correct USB driver for your operating system.
- Check the USB cable for damage or try a different cable.
GPIO Pins Not Responding
- Ensure the pins are correctly configured in the code (input/output mode).
- Check for short circuits or incorrect wiring.
Program Upload Fails
- Hold the BOOT button while uploading the code to enter bootloader mode.
- Verify the correct COM port and board settings in the Arduino IDE.

FAQs

Q: Can the ESP32S Arun operate on battery power?
A: Yes, the ESP32S Arun can be powered by a 3.7V LiPo battery with a suitable voltage regulator.

Q: How do I reset the ESP32S Arun?
A: Press the EN (Enable) button to reset the microcontroller.

Q: Can I use the ESP32S Arun with 5V sensors?
A: Yes, but you must use a level shifter to convert the 5V signals to 3.3V.

Q: What is the maximum range of the Wi-Fi module?
A: The Wi-Fi range depends on the environment but typically extends up to 100 meters in open spaces.

This concludes the documentation for the ESP32S Arun. For further details, refer to the official datasheet or user manual.
