Introduction

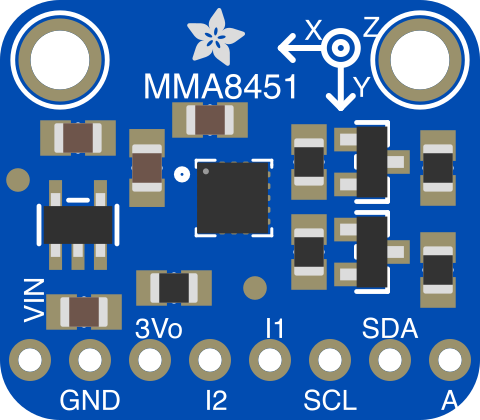

The Adafruit MMA8451 Accelerometer (Part ID: 2019) is a high-precision, 3-axis accelerometer designed to measure acceleration forces in three dimensions. This compact and versatile sensor is capable of detecting motion, orientation, and free-fall events, making it ideal for a wide range of applications. With its I2C interface and built-in features such as tap detection and orientation sensing, the MMA8451 is a popular choice for motion-based projects.

Explore Projects Built with Adafruit MMA8451 Accelerometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Teensy 4.1 Based Biometric Data Acquisition System with AD8232 Heart Rate Monitor and LIS3DH Accelerometer
Image of Teensy 4.1 accelerometer: A project utilizing Adafruit MMA8451 Accelerometer in a practical application
This circuit integrates a Teensy 4.1 microcontroller with an Adafruit LIS3DH Triple-Axis Accelerometer and an AD8232 Heart Rate Monitor. The accelerometer communicates with the Teensy via I2C (SCL and SDA lines), while the heart rate monitor's output and lead-off detection (LO+ and LO-) are connected to the Teensy's analog inputs. The circuit is designed to measure both acceleration and heart rate signals, likely for a wearable or health monitoring device.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO R4 WiFi and Adafruit LIS3DH Accelerometer-Based Motion Detection System
Image of circuit: A project utilizing Adafruit MMA8451 Accelerometer in a practical application
This circuit consists of an Arduino UNO R4 WiFi connected to an Adafruit LIS3DH Triple-Axis Accelerometer via I2C communication. The Arduino reads acceleration data from the LIS3DH sensor and outputs it to the serial monitor for further analysis or processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with Adafruit ADXL345 Accelerometer Data Logger
Image of ADXL345: A project utilizing Adafruit MMA8451 Accelerometer in a practical application
This circuit connects an Arduino UNO microcontroller with an Adafruit ADXL345 accelerometer sensor. The Arduino powers the sensor, communicates with it via I2C (using pins A4 and A5 for SDA and SCL respectively), and runs a program to read and output the acceleration data in three axes. The purpose of the circuit is to measure acceleration and provide real-time data for analysis or further processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Sensor Data Acquisition System with Bluetooth and Wi-Fi Connectivity
Image of smrpe: A project utilizing Adafruit MMA8451 Accelerometer in a practical application
This circuit is a multi-sensor data acquisition system with wireless communication capabilities. It utilizes an Arduino UNO to interface with an MPU-6050 gyroscope, an Adafruit ADXL345 accelerometer, an Adafruit MPR121 capacitive touch sensor, and a SparkFun Electret Microphone for audio input. The system can transmit sensor data via an HC-05 Bluetooth module and an ESP8266 WiFi module, and it includes a bi-directional logic level converter for voltage level matching between devices. The circuit is powered by a 9V battery connected to the Arduino's Vin pin.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Adafruit MMA8451 Accelerometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Teensy 4.1 accelerometer: A project utilizing Adafruit MMA8451 Accelerometer in a practical application
Teensy 4.1 Based Biometric Data Acquisition System with AD8232 Heart Rate Monitor and LIS3DH Accelerometer
This circuit integrates a Teensy 4.1 microcontroller with an Adafruit LIS3DH Triple-Axis Accelerometer and an AD8232 Heart Rate Monitor. The accelerometer communicates with the Teensy via I2C (SCL and SDA lines), while the heart rate monitor's output and lead-off detection (LO+ and LO-) are connected to the Teensy's analog inputs. The circuit is designed to measure both acceleration and heart rate signals, likely for a wearable or health monitoring device.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit: A project utilizing Adafruit MMA8451 Accelerometer in a practical application
Arduino UNO R4 WiFi and Adafruit LIS3DH Accelerometer-Based Motion Detection System
This circuit consists of an Arduino UNO R4 WiFi connected to an Adafruit LIS3DH Triple-Axis Accelerometer via I2C communication. The Arduino reads acceleration data from the LIS3DH sensor and outputs it to the serial monitor for further analysis or processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ADXL345: A project utilizing Adafruit MMA8451 Accelerometer in a practical application
Arduino UNO with Adafruit ADXL345 Accelerometer Data Logger
This circuit connects an Arduino UNO microcontroller with an Adafruit ADXL345 accelerometer sensor. The Arduino powers the sensor, communicates with it via I2C (using pins A4 and A5 for SDA and SCL respectively), and runs a program to read and output the acceleration data in three axes. The purpose of the circuit is to measure acceleration and provide real-time data for analysis or further processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of smrpe: A project utilizing Adafruit MMA8451 Accelerometer in a practical application
Arduino UNO-Based Sensor Data Acquisition System with Bluetooth and Wi-Fi Connectivity
This circuit is a multi-sensor data acquisition system with wireless communication capabilities. It utilizes an Arduino UNO to interface with an MPU-6050 gyroscope, an Adafruit ADXL345 accelerometer, an Adafruit MPR121 capacitive touch sensor, and a SparkFun Electret Microphone for audio input. The system can transmit sensor data via an HC-05 Bluetooth module and an ESP8266 WiFi module, and it includes a bi-directional logic level converter for voltage level matching between devices. The circuit is powered by a 9V battery connected to the Arduino's Vin pin.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Motion detection in wearable devices
  • Orientation sensing in robotics
  • Free-fall detection for safety systems
  • Gaming and virtual reality controllers
  • Vibration monitoring in industrial equipment

Technical Specifications

The Adafruit MMA8451 Accelerometer offers the following key technical details:

Parameter Value
Operating Voltage 3.3V (logic level)
Communication Interface I2C
Measurement Range ±2g, ±4g, ±8g (configurable)
Resolution 14-bit
Data Rate 1.56 Hz to 800 Hz
Operating Temperature -40°C to +85°C
Dimensions 20mm x 20mm x 3mm

Pin Configuration and Descriptions

The MMA8451 breakout board has the following pin layout:

Pin Name Description
VIN Power Connect to 3.3V or 5V power supply. Includes onboard voltage regulator.
GND Ground Connect to the ground of the circuit.
SCL Clock I2C clock line. Connect to the SCL pin of the microcontroller.
SDA Data I2C data line. Connect to the SDA pin of the microcontroller.
INT Interrupt Optional interrupt pin for motion detection or other events.

Usage Instructions

How to Use the Component in a Circuit

  1. Power the Sensor: Connect the VIN pin to a 3.3V or 5V power source and the GND pin to the ground.
  2. Connect I2C Lines: Connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller (e.g., Arduino UNO).
  3. Optional Interrupt: If you want to use the interrupt feature, connect the INT pin to a digital input pin on your microcontroller.
  4. Install Libraries: Use the Adafruit MMA8451 library for easy integration. Install it via the Arduino Library Manager.

Important Considerations and Best Practices

  • Ensure pull-up resistors (typically 4.7kΩ) are present on the I2C lines if not already included on the breakout board.
  • Configure the measurement range (±2g, ±4g, or ±8g) based on your application requirements.
  • Use proper decoupling capacitors near the power supply pins to reduce noise.
  • Avoid exposing the sensor to extreme temperatures or mechanical shocks beyond its rated limits.

Example Code for Arduino UNO

Below is an example code snippet to read acceleration data from the MMA8451 using an Arduino UNO:

#include <Wire.h>
#include <Adafruit_MMA8451.h>
#include <Adafruit_Sensor.h>

// Create an MMA8451 object
Adafruit_MMA8451 mma = Adafruit_MMA8451();

void setup() {
  Serial.begin(9600);
  Serial.println("Adafruit MMA8451 Accelerometer Test");

  // Initialize the sensor
  if (!mma.begin()) {
    Serial.println("Could not find a valid MMA8451 sensor, check wiring!");
    while (1);
  }
  Serial.println("MMA8451 found!");

  // Set the measurement range to ±2g
  mma.setRange(MMA8451_RANGE_2_G);
  Serial.print("Range set to: ");
  switch (mma.getRange()) {
    case MMA8451_RANGE_2_G: Serial.println("±2g"); break;
    case MMA8451_RANGE_4_G: Serial.println("±4g"); break;
    case MMA8451_RANGE_8_G: Serial.println("±8g"); break;
  }
}

void loop() {
  // Read acceleration data
  sensors_event_t event;
  mma.getEvent(&event);

  // Print acceleration values
  Serial.print("X: "); Serial.print(event.acceleration.x); Serial.print(" m/s^2 ");
  Serial.print("Y: "); Serial.print(event.acceleration.y); Serial.print(" m/s^2 ");
  Serial.print("Z: "); Serial.print(event.acceleration.z); Serial.println(" m/s^2");

  delay(500); // Delay for readability
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Sensor Not Detected

    • Ensure proper wiring of the I2C lines (SCL and SDA).
    • Verify that the I2C address (default: 0x1D) matches the one in your code.
    • Check for pull-up resistors on the I2C lines.
  2. Incorrect or No Data Output

    • Confirm that the power supply voltage is within the specified range.
    • Verify that the measurement range is correctly configured in the code.
    • Ensure the sensor is not exposed to excessive vibrations or shocks.
  3. Interrupt Pin Not Working

    • Check if the interrupt feature is enabled in the code.
    • Verify the connection of the INT pin to the microcontroller.

FAQs

Q: Can the MMA8451 operate at 5V logic levels?
A: Yes, the breakout board includes a level shifter, allowing it to work with both 3.3V and 5V logic.

Q: How do I change the measurement range?
A: Use the setRange() function in the Adafruit MMA8451 library to configure the range to ±2g, ±4g, or ±8g.

Q: What is the default I2C address of the MMA8451?
A: The default I2C address is 0x1D. If the ADDR pin is connected to GND, the address changes to 0x1C.

Q: Can I use multiple MMA8451 sensors on the same I2C bus?
A: Yes, but you must configure each sensor with a unique I2C address by adjusting the ADDR pin.

This documentation provides a comprehensive guide to using the Adafruit MMA8451 Accelerometer effectively in your projects.
