How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

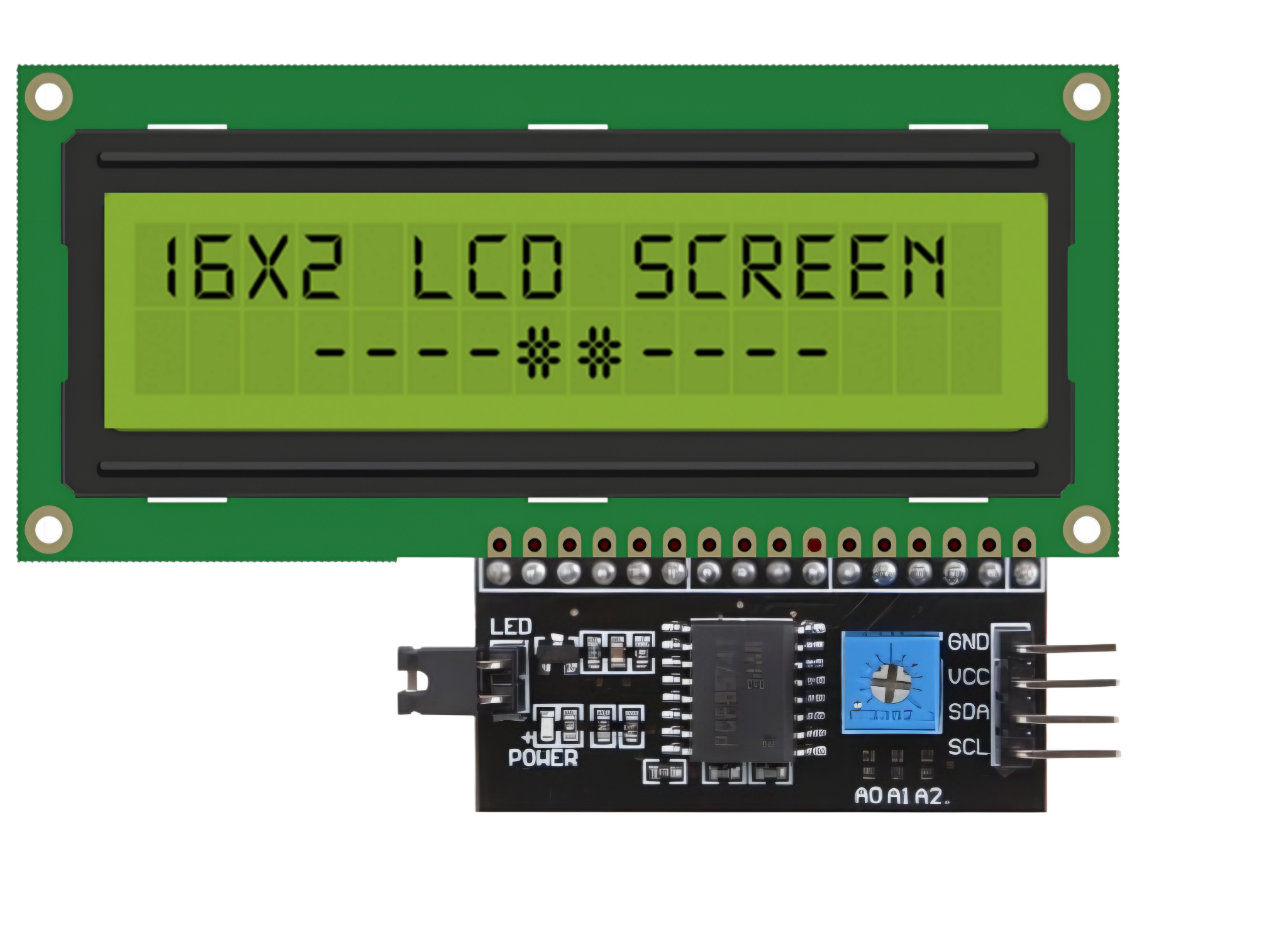

The LCD 16x2 with I2C interface is a versatile and widely used display module capable of showing 16 characters per line across 2 lines. It is equipped with an I2C (Inter-Integrated Circuit) interface, which simplifies communication with microcontrollers by reducing the number of required pins. This makes it an excellent choice for projects where pin availability is limited or where simplicity is desired.

• Displaying sensor data in real-time
• User interfaces for embedded systems
• Menu systems for microcontroller-based projects
• Educational and prototyping purposes
• IoT devices requiring a simple display

• Display Type: 16x2 character LCD
• Interface: I2C (uses PCF8574 I/O expander)
• Operating Voltage: 5V DC
• Backlight: LED backlight (controllable via software)
• I2C Address: Typically 0x27 or 0x3F (configurable via jumpers)
• Character Size: 5x8 dot matrix
• Operating Temperature: -20°C to 70°C
• Dimensions: 80mm x 36mm x 12mm (approx.)

The I2C interface reduces the number of pins required to connect the LCD to just four. Below is the pin configuration:

1. Wiring the LCD to a Microcontroller:

   • Connect the VCC pin to the 5V output of the microcontroller.
   • Connect the GND pin to the ground of the microcontroller.
   • Connect the SDA pin to the I2C data pin of the microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin to the I2C clock pin of the microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • Use the LiquidCrystal_I2C library for Arduino. Install it via the Arduino IDE Library Manager:
     • Go to Sketch > Include Library > Manage Libraries.
     • Search for LiquidCrystal_I2C and install the library by Frank de Brabander.

3. Basic Arduino Code Example: Below is an example code to display "Hello, World!" on the LCD:

   // Include the LiquidCrystal_I2C library
   #include <Wire.h>
   #include <LiquidCrystal_I2C.h>

   // Initialize the LCD with I2C address 0x27 and 16x2 dimensions
   LiquidCrystal_I2C lcd(0x27, 16, 2);

   void setup() {
     lcd.init(); // Initialize the LCD
     lcd.backlight(); // Turn on the backlight
     lcd.setCursor(0, 0); // Set cursor to the first column, first row
     lcd.print("Hello, World!"); // Print text on the LCD
   }

   void loop() {
     // No actions in the loop for this example
   }


• I2C Address: Ensure the correct I2C address is used in the code. If the LCD does not respond, use an I2C scanner sketch to determine the address.
• Power Supply: Provide a stable 5V power supply to avoid flickering or malfunctioning.
• Contrast Adjustment: The LCD module typically has a potentiometer for adjusting contrast. Set it to a level where characters are clearly visible.
• Backlight Control: Use the lcd.backlight() and lcd.noBacklight() functions to control the backlight programmatically.

1. LCD Not Displaying Anything:

   • Verify the wiring connections, especially SDA and SCL.
   • Check the I2C address in the code. Use an I2C scanner sketch to confirm the address.
   • Ensure the contrast potentiometer is adjusted correctly.

2. Flickering or Unstable Display:

   • Ensure a stable 5V power supply.
   • Check for loose connections or poor soldering on the I2C module.

3. Incorrect or Garbled Characters:

   • Verify the I2C address and ensure the correct library is used.
   • Ensure the LCD dimensions (16x2) are correctly specified in the code.

4. Backlight Not Working:

   • Check the backlight jumper or solder pads on the I2C module.
   • Use the lcd.backlight() function in the code to enable the backlight.

Q: How do I find the I2C address of my LCD?
A: Use an I2C scanner sketch available online. It will detect and display the address of all connected I2C devices.

Q: Can I use this LCD with a 3.3V microcontroller?
A: The LCD itself requires 5V, but some I2C modules are compatible with 3.3V logic. Check the module's datasheet or use a level shifter.

Q: Can I connect multiple I2C devices to the same microcontroller?
A: Yes, I2C supports multiple devices on the same bus. Ensure each device has a unique address.

Q: How do I display text on the second line of the LCD?
A: Use lcd.setCursor(0, 1); to set the cursor to the first column of the second row before printing text.

By following this documentation, you can effectively integrate and troubleshoot the LCD 16x2 with I2C interface in your projects.
