How to Use Touch Sensor TP233: Examples, Pinouts, and Specs

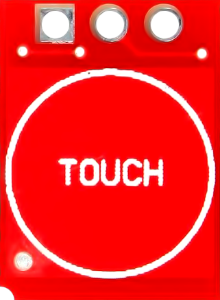

The TP233 is a capacitive touch sensor manufactured in China, designed to detect touch input and convert it into an electrical signal. This compact and efficient sensor is widely used in user interface applications, such as touch buttons, touch panels, and proximity detection systems. Its high sensitivity and low power consumption make it an ideal choice for modern electronic devices.

• Touch-sensitive buttons for home appliances
• Proximity detection in smart devices
• Interactive displays and control panels
• Wearable electronics
• DIY electronics and Arduino projects

The TP233 touch sensor is designed for simplicity and reliability. Below are its key technical details:

The TP233 is typically available in an SOP-8 package. Below is the pinout and description:

The TP233 touch sensor is straightforward to use in a circuit. Follow the steps below to integrate it into your project:

1. Power Supply: Connect the VDD pin to a 3.3V or 5V power source and the VSS pin to ground.
2. Touch Input: Attach a conductive touch pad (e.g., copper foil) to the TIN pin. Ensure the pad is isolated from other conductive materials.
3. Output Signal: Connect the OUT pin to a microcontroller input pin or an external circuit to read the touch signal.
4. Output Mode: Use the AHLB pin to configure the output mode:
   • Connect to VDD for active low output.
   • Connect to VSS for active high output.

The TP233 can be easily interfaced with an Arduino UNO to detect touch input. Below is an example code:

// TP233 Touch Sensor Example with Arduino UNO
// Connect TP233 OUT pin to Arduino digital pin 2
// Connect TP233 VDD to 5V and VSS to GND

#define TOUCH_SENSOR_PIN 2  // Define the pin connected to TP233 OUT

void setup() {
  pinMode(TOUCH_SENSOR_PIN, INPUT);  // Set the touch sensor pin as input
  Serial.begin(9600);               // Initialize serial communication
}

void loop() {
  int touchState = digitalRead(TOUCH_SENSOR_PIN);  // Read the touch sensor state

  if (touchState == HIGH) {
    Serial.println("Touch detected!");  // Print message if touch is detected
  } else {
    Serial.println("No touch detected.");  // Print message if no touch is detected
  }

  delay(100);  // Add a small delay to avoid spamming the serial monitor
}

• Use a stable power supply to avoid noise interference.
• Keep the touch pad isolated from other conductive materials to prevent false triggers.
• Avoid placing the sensor near high-frequency components to minimize interference.

1. No Response from the Sensor

   • Cause: Incorrect wiring or power supply issues.
   • Solution: Double-check all connections and ensure the power supply voltage is within the specified range (2.0V to 5.5V).

2. False Touch Detection

   • Cause: Electrical noise or improper grounding.
   • Solution: Use a decoupling capacitor (e.g., 0.1 µF) between VDD and VSS to filter noise. Ensure proper grounding.

3. Output Signal Not Detected

   • Cause: Incorrect output mode configuration.
   • Solution: Verify the AHLB pin configuration. Connect it to VDD for active low or VSS for active high output.

Q: Can the TP233 detect proximity without direct touch?
A: Yes, the TP233 can detect proximity if the touch pad is large enough and the sensitivity is sufficient. However, the detection range is limited to a few millimeters.

Q: Can I use the TP233 with a 3.3V microcontroller?
A: Yes, the TP233 operates within a voltage range of 2.0V to 5.5V, making it compatible with 3.3V systems.

Q: How do I adjust the sensitivity of the TP233?
A: The TP233 automatically adjusts its sensitivity. To improve performance, ensure the touch pad size and layout are optimized for your application.

By following this documentation, you can effectively integrate the TP233 touch sensor into your projects and troubleshoot any issues that arise.
