How to Use GPS NEO 6M: Examples, Pinouts, and Specs

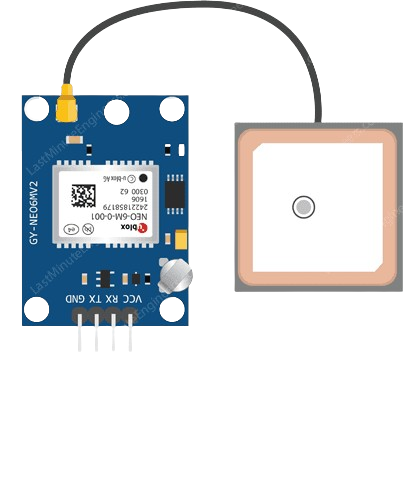

Image of GPS NEO 6M
Cirkit Designer LogoDesign with GPS NEO 6M in Cirkit Designer

Introduction

The GPS NEO 6M is a high-performance GPS module that provides accurate positioning data. It features a built-in antenna, low power consumption, and the ability to receive signals from multiple satellites. This makes it an excellent choice for navigation, tracking, and location-based applications. The module is widely used in projects such as vehicle tracking systems, drones, robotics, and IoT devices requiring precise geolocation.

Explore Projects Built with GPS NEO 6M

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560 GPS Data Logger with NEO 6M Module
Image of Dhanshri project: A project utilizing GPS NEO 6M in a practical application
This circuit interfaces a GPS NEO 6M module with an Arduino Mega 2560 microcontroller. The Arduino reads data from the GPS module via serial communication and prints it to the Serial Monitor for further analysis or display.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
Image of Yoon: A project utilizing GPS NEO 6M in a practical application
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
Image of ecs: A project utilizing GPS NEO 6M in a practical application
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO GPS Tracker with SMS Notification using GPS NEO 6M and SIM900A
Image of GPs_sim900A_ardunio: A project utilizing GPS NEO 6M in a practical application
This circuit interfaces an Arduino UNO with a GPS NEO 6M module and a SIM900A module. The Arduino reads GPS data from the NEO 6M and sends it via SMS using the SIM900A module, enabling real-time location tracking and communication.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with GPS NEO 6M

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Dhanshri project: A project utilizing GPS NEO 6M in a practical application
Arduino Mega 2560 GPS Data Logger with NEO 6M Module
This circuit interfaces a GPS NEO 6M module with an Arduino Mega 2560 microcontroller. The Arduino reads data from the GPS module via serial communication and prints it to the Serial Monitor for further analysis or display.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Yoon: A project utilizing GPS NEO 6M in a practical application
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ecs: A project utilizing GPS NEO 6M in a practical application
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of GPs_sim900A_ardunio: A project utilizing GPS NEO 6M in a practical application
Arduino UNO GPS Tracker with SMS Notification using GPS NEO 6M and SIM900A
This circuit interfaces an Arduino UNO with a GPS NEO 6M module and a SIM900A module. The Arduino reads GPS data from the NEO 6M and sends it via SMS using the SIM900A module, enabling real-time location tracking and communication.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Model: NEO-6M
  • Supply Voltage: 2.7V to 3.6V (typically 3.3V)
  • Operating Current: ~45mA
  • Communication Protocol: UART (default baud rate: 9600 bps)
  • Position Accuracy: 2.5 meters (CEP)
  • Update Rate: Up to 5 Hz
  • Antenna: Built-in ceramic patch antenna
  • Backup Power: Supports a rechargeable battery for maintaining data (RTC and satellite data)
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 16 x 12.2 x 2.4 mm (module size)

Pin Configuration and Descriptions

The GPS NEO 6M module typically has four main pins for interfacing:

Pin Name Description
VCC Power supply input (3.3V recommended, can tolerate up to 5V in some modules).
GND Ground connection.
TX Transmit pin for UART communication (connect to RX of microcontroller).
RX Receive pin for UART communication (connect to TX of microcontroller).

Some modules may also include additional pins such as PPS (Pulse Per Second) for timing applications or a battery pin for connecting an external backup battery.

Usage Instructions

How to Use the GPS NEO 6M in a Circuit

  1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source (depending on the module version) and GND to the ground.
  2. Connect UART Pins:
    • Connect the TX pin of the GPS module to the RX pin of your microcontroller.
    • Connect the RX pin of the GPS module to the TX pin of your microcontroller.
  3. Antenna Placement: Ensure the built-in antenna has a clear view of the sky for optimal satellite reception. Avoid placing the module near metal objects or inside enclosures that block signals.
  4. Backup Battery (Optional): If your module supports it, connect a small rechargeable battery to the backup pin to retain satellite data and reduce cold start time.

Important Considerations and Best Practices

  • Power Supply: Ensure a stable power supply to avoid communication issues or inaccurate data.
  • Signal Reception: For best results, use the module outdoors or near a window. Indoors, signal reception may be weak or unavailable.
  • Baud Rate: The default baud rate is 9600 bps. If needed, you can configure the baud rate using specific commands.
  • Data Parsing: The module outputs NMEA sentences (e.g., GPGGA, GPRMC) over UART. Use a library or write a parser to extract useful data like latitude, longitude, and time.

Example Code for Arduino UNO

Below is an example of how to interface the GPS NEO 6M with an Arduino UNO to read and display GPS data:

#include <SoftwareSerial.h>

// Create a SoftwareSerial instance for GPS communication
SoftwareSerial gpsSerial(4, 3); // RX = Pin 4, TX = Pin 3

void setup() {
  Serial.begin(9600);          // Initialize Serial Monitor at 9600 bps
  gpsSerial.begin(9600);       // Initialize GPS module at 9600 bps
  Serial.println("GPS NEO 6M Test");
}

void loop() {
  while (gpsSerial.available()) {
    char c = gpsSerial.read(); // Read data from GPS module
    Serial.print(c);           // Print GPS data to Serial Monitor

    // Note: The GPS module outputs NMEA sentences. You can parse these
    // sentences to extract specific data like latitude, longitude, etc.
  }
}

Notes:

  • Connect the GPS module's TX pin to Arduino's Pin 4 and RX pin to Arduino's Pin 3.
  • Open the Serial Monitor to view the raw NMEA sentences from the GPS module.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Data Output:

    • Ensure the GPS module is powered correctly and the connections are secure.
    • Verify that the baud rate in your code matches the module's default baud rate (9600 bps).
    • Check if the module has a clear view of the sky for satellite reception.
  2. Weak or No Signal:

    • Place the module outdoors or near a window for better signal reception.
    • Avoid interference from nearby electronic devices or metal objects.
  3. Incorrect Data:

    • Ensure the module has had enough time to acquire satellite signals (cold start may take up to 30 seconds).
    • Verify that the antenna is not damaged or obstructed.
  4. Module Not Responding:

    • Double-check the TX and RX connections. Ensure TX of the GPS module is connected to RX of the microcontroller and vice versa.
    • Confirm that the power supply voltage is within the acceptable range.

FAQs

Q: Can the GPS NEO 6M work indoors?
A: The module may work indoors near a window, but signal reception is generally weaker. For reliable operation, use it outdoors or in areas with a clear view of the sky.

Q: How long does it take for the module to get a GPS fix?
A: A cold start (first-time use or after a long period of inactivity) may take up to 30 seconds. A warm start (with backup battery and recent satellite data) typically takes a few seconds.

Q: Can I change the default baud rate?
A: Yes, you can change the baud rate using specific configuration commands sent to the module. Refer to the NEO 6M datasheet for details.

Q: What is the purpose of the PPS pin?
A: The PPS (Pulse Per Second) pin provides a precise timing signal that can be used for synchronization in time-sensitive applications.

By following this documentation, you can effectively integrate the GPS NEO 6M module into your projects and troubleshoot common issues.
