How to Use motor and wheels: Examples, Pinouts, and Specs

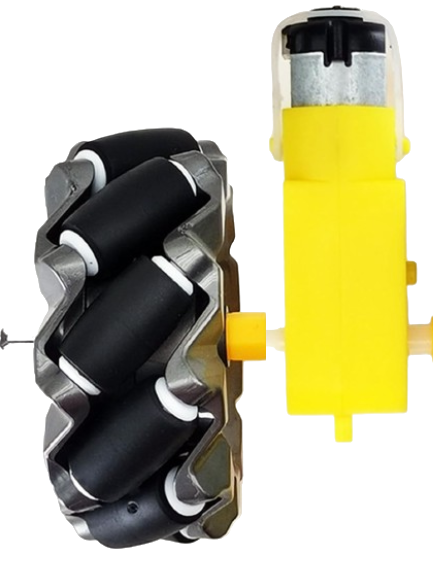

Image of motor and wheels
Cirkit Designer LogoDesign with motor and wheels in Cirkit Designer

Introduction

  • The motor and wheels component is a fundamental part of robotics and automation systems. It consists of a motor (typically a DC motor or stepper motor) paired with wheels to enable movement and mobility in robotic platforms or vehicles.
  • Common applications include robotic cars, automated guided vehicles (AGVs), line-following robots, and other mobile robotic systems.

Explore Projects Built with motor and wheels

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Dual Gearmotor Drive System
Image of electric car: A project utilizing motor and wheels in a practical application
This circuit consists of a 6V battery pack connected in parallel to two DC gearmotors, one for the left wheel and one for the right wheel of a vehicle. The battery provides power directly to both motors, enabling them to run simultaneously. As there is no control circuitry or microcontroller code provided, the motors will run continuously when the circuit is powered.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Robotic Vehicle with IR Sensors and L298N Motor Driver
Image of xe do line: A project utilizing motor and wheels in a practical application
This circuit is designed to control a pair of DC gearmotors using an L298N motor driver module, which is interfaced with an Arduino UNO microcontroller. The Arduino is also connected to a 5-channel IR sensor for input, which may be used for line tracking or obstacle detection. Power is supplied by a 9V battery connected through a 2.1mm barrel jack, and the motor driver module regulates this power to drive the left and right gearmotors for a mobile robot platform.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-CAM Controlled Wi-Fi Robot Car
Image of cam car: A project utilizing motor and wheels in a practical application
This circuit is designed to control a two-wheel motorized vehicle using an ESP32-CAM microcontroller. The ESP32-CAM is interfaced with an L298N DC motor driver to control the direction and speed of the motors attached to the wheels. Additionally, the ESP32-CAM is configured to capture images and provide WiFi connectivity for remote control via a web server with a user interface for driving commands.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and L298N Motor Driver-Based Wi-Fi Controlled Robotic Vehicle with GPS and Metal Detection
Image of Revolutioning Demining: AI Powered Landmine Detection: A project utilizing motor and wheels in a practical application
This circuit is a robotic vehicle control system that uses an ESP32 microcontroller to drive four DC gear motors via an L298N motor driver. It also includes a GPS module for location tracking, a metal detector for object detection, and an ESP32 CAM for capturing images or video, all powered by a 12V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with motor and wheels

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of electric car: A project utilizing motor and wheels in a practical application
Battery-Powered Dual Gearmotor Drive System
This circuit consists of a 6V battery pack connected in parallel to two DC gearmotors, one for the left wheel and one for the right wheel of a vehicle. The battery provides power directly to both motors, enabling them to run simultaneously. As there is no control circuitry or microcontroller code provided, the motors will run continuously when the circuit is powered.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of xe do line: A project utilizing motor and wheels in a practical application
Arduino-Controlled Robotic Vehicle with IR Sensors and L298N Motor Driver
This circuit is designed to control a pair of DC gearmotors using an L298N motor driver module, which is interfaced with an Arduino UNO microcontroller. The Arduino is also connected to a 5-channel IR sensor for input, which may be used for line tracking or obstacle detection. Power is supplied by a 9V battery connected through a 2.1mm barrel jack, and the motor driver module regulates this power to drive the left and right gearmotors for a mobile robot platform.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of cam car: A project utilizing motor and wheels in a practical application
ESP32-CAM Controlled Wi-Fi Robot Car
This circuit is designed to control a two-wheel motorized vehicle using an ESP32-CAM microcontroller. The ESP32-CAM is interfaced with an L298N DC motor driver to control the direction and speed of the motors attached to the wheels. Additionally, the ESP32-CAM is configured to capture images and provide WiFi connectivity for remote control via a web server with a user interface for driving commands.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Revolutioning Demining: AI Powered Landmine Detection: A project utilizing motor and wheels in a practical application
ESP32 and L298N Motor Driver-Based Wi-Fi Controlled Robotic Vehicle with GPS and Metal Detection
This circuit is a robotic vehicle control system that uses an ESP32 microcontroller to drive four DC gear motors via an L298N motor driver. It also includes a GPS module for location tracking, a metal detector for object detection, and an ESP32 CAM for capturing images or video, all powered by a 12V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Motor Type: DC motor or stepper motor (varies by model)
  • Operating Voltage: 3V to 12V (typical range for DC motors)
  • Current Consumption: 100mA to 2A (depending on load and motor type)
  • Wheel Diameter: 65mm (common size, may vary)
  • Wheel Material: Rubber or plastic with a textured surface for traction
  • Shaft Diameter: 6mm (standard for many motors)
  • Gear Ratio: 1:48 (for geared DC motors, providing torque and speed balance)

Pin Configuration and Descriptions

For a typical DC motor with two terminals:

Pin Name Description
V+ Positive terminal for motor power
V- Negative terminal for motor power

For a stepper motor with four wires:

Pin Name Description
A+ Coil A positive terminal
A- Coil A negative terminal
B+ Coil B positive terminal
B- Coil B negative terminal

Usage Instructions

How to Use the Component in a Circuit

  1. Connecting a DC Motor:

    • Use an H-bridge motor driver (e.g., L298N or L293D) to control the motor's direction and speed.
    • Connect the motor terminals (V+ and V-) to the motor output pins of the driver.
    • Provide power to the motor driver and control it using a microcontroller (e.g., Arduino).
  2. Connecting a Stepper Motor:

    • Use a stepper motor driver (e.g., ULN2003 or A4988) to control the stepper motor.
    • Connect the motor's coil terminals (A+, A-, B+, B-) to the driver's output pins.
    • Provide power to the driver and control it using a microcontroller.
  3. Attaching Wheels:

    • Securely attach the wheels to the motor shaft using screws or press-fit mechanisms.
    • Ensure the wheels are aligned properly to avoid wobbling during operation.

Important Considerations and Best Practices

  • Power Supply: Ensure the motor is powered within its specified voltage range to avoid damage.
  • Current Requirements: Use a motor driver capable of handling the motor's current draw, especially under load.
  • Heat Dissipation: Motors can heat up during prolonged use; ensure proper ventilation or cooling if necessary.
  • Load Balancing: Avoid overloading the motor, as this can lead to reduced performance or damage.
  • Wheel Traction: Choose wheels with appropriate material and texture for the operating surface.

Example Code for Arduino UNO (DC Motor Control)

// Example code to control a DC motor using an L298N motor driver
// Connect IN1 and IN2 of the motor driver to Arduino pins 9 and 10

#define IN1 9  // Motor driver input pin 1
#define IN2 10 // Motor driver input pin 2

void setup() {
  pinMode(IN1, OUTPUT); // Set IN1 as output
  pinMode(IN2, OUTPUT); // Set IN2 as output
}

void loop() {
  // Rotate motor forward
  digitalWrite(IN1, HIGH); // Set IN1 high
  digitalWrite(IN2, LOW);  // Set IN2 low
  delay(2000);             // Run motor for 2 seconds

  // Stop motor
  digitalWrite(IN1, LOW);  // Set IN1 low
  digitalWrite(IN2, LOW);  // Set IN2 low
  delay(1000);             // Wait for 1 second

  // Rotate motor backward
  digitalWrite(IN1, LOW);  // Set IN1 low
  digitalWrite(IN2, HIGH); // Set IN2 high
  delay(2000);             // Run motor for 2 seconds

  // Stop motor
  digitalWrite(IN1, LOW);  // Set IN1 low
  digitalWrite(IN2, LOW);  // Set IN2 low
  delay(1000);             // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Motor Not Spinning:

    • Check the power supply and ensure it matches the motor's voltage requirements.
    • Verify the connections between the motor, driver, and microcontroller.
    • Ensure the motor driver is receiving control signals from the microcontroller.
  2. Motor Spins in One Direction Only:

    • Verify the control signals sent to the motor driver.
    • Check the wiring of the motor driver and ensure both input pins are connected properly.
  3. Motor Overheating:

    • Reduce the load on the motor or use a motor with a higher torque rating.
    • Ensure the motor is not being overpowered beyond its voltage or current limits.
  4. Wheels Slipping:

    • Use wheels with better traction or operate on a surface with more grip.
    • Check if the wheels are securely attached to the motor shaft.

Solutions and Tips for Troubleshooting

  • Use a multimeter to check voltage and continuity in the circuit.
  • Test the motor independently by connecting it directly to a power source.
  • If using a stepper motor, ensure the step sequence is correct in the code.
  • Consult the motor and driver datasheets for detailed specifications and wiring diagrams.
