How to Use driver drv8825: Examples, Pinouts, and Specs

The DRV8825 is a high-performance stepper motor driver manufactured by Arduino. It is designed to provide precise control of bipolar stepper motors, making it an essential component for robotics, 3D printers, CNC machines, and other motion control applications. The DRV8825 supports adjustable current control, microstepping (up to 1/32 steps), and can handle up to 2.5A per phase with proper cooling.

• 3D printers for precise movement of print heads
• CNC machines for accurate tool positioning
• Robotics for controlling robotic arms and wheels
• Automated systems requiring stepper motor control

The DRV8825 is a versatile and robust driver with the following key specifications:

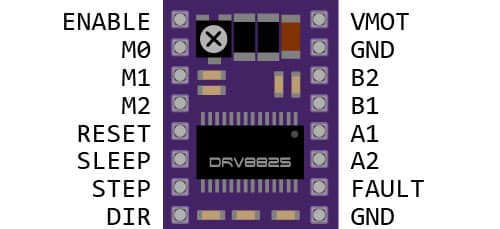

The DRV8825 module has 16 pins. Below is the pinout and description:

1. Power Supply: Connect VMOT and GND to a power supply (8.2V to 45V). Add a capacitor (e.g., 100µF) across these pins to stabilize the voltage.
2. Motor Connections: Connect the stepper motor coils to the 1A, 1B, 2A, and 2B pins. Ensure the correct pairing of motor wires.
3. Logic Connections: Connect VDD to a 3.3V or 5V logic supply and GND to the logic ground.
4. Control Pins:
   • Connect STEP and DIR to your microcontroller for step and direction control.
   • Use MS1, MS2, and MS3 to set the desired microstepping mode.
   • Optionally, connect ENABLE, RESET, and SLEEP as needed.

1. Locate the potentiometer on the DRV8825 module.
2. Measure the reference voltage (VREF) between the potentiometer and GND.
3. Adjust the potentiometer to set the current limit using the formula:

   Current Limit = VREF × 2


   For example, if VREF = 0.5V, the current limit is 1A.

Below is an example code to control a stepper motor using the DRV8825 and an Arduino UNO:

// Define pin connections
#define STEP_PIN 3  // Connect to STEP pin on DRV8825
#define DIR_PIN 4   // Connect to DIR pin on DRV8825

void setup() {
  pinMode(STEP_PIN, OUTPUT); // Set STEP pin as output
  pinMode(DIR_PIN, OUTPUT);  // Set DIR pin as output

  digitalWrite(DIR_PIN, HIGH); // Set initial direction
}

void loop() {
  // Rotate the motor one step at a time
  digitalWrite(STEP_PIN, HIGH); // Generate a step pulse
  delayMicroseconds(500);       // Wait for 500 microseconds
  digitalWrite(STEP_PIN, LOW);  // End the step pulse
  delayMicroseconds(500);       // Wait for 500 microseconds
}

• Use a heatsink or active cooling to prevent overheating when driving high currents.
• Always set the current limit to match your stepper motor's rated current.
• Avoid connecting or disconnecting the motor while the driver is powered to prevent damage.

1. Motor Not Moving:

   • Check the power supply connections and ensure the voltage is within the specified range.
   • Verify the STEP and DIR signals from the microcontroller.
   • Ensure the current limit is set correctly.

2. Overheating:

   • Use a heatsink or fan for cooling.
   • Reduce the current limit if possible.

3. Fault LED is On:

   • Check for overcurrent or thermal shutdown conditions.
   • Ensure the motor connections are correct and not shorted.

4. Motor Vibrates but Does Not Rotate:

   • Verify the wiring of the stepper motor coils.
   • Check the microstepping settings (MS1, MS2, MS3).

Q: Can I use the DRV8825 with a unipolar stepper motor?
A: No, the DRV8825 is designed for bipolar stepper motors only.

Q: What is the maximum microstepping resolution?
A: The DRV8825 supports up to 1/32 microstepping.

Q: How do I know if the driver is overheating?
A: The FAULT pin will indicate a thermal shutdown condition. Additionally, the driver may stop functioning temporarily.

Q: Can I use the DRV8825 with a 12V power supply?
A: Yes, the DRV8825 supports power supply voltages between 8.2V and 45V.

By following this documentation, you can effectively use the DRV8825 stepper motor driver in your projects.
