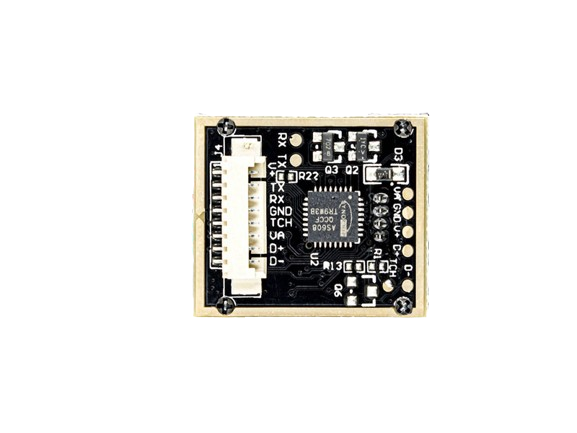

Design with AS608 FINGERPRINT MODULE in Cirkit DesignerThe AS608 Fingerprint Module, manufactured by Synochip, is a compact and reliable biometric sensor designed for capturing and processing fingerprint data. It features a high-resolution optical sensor and built-in algorithms for fingerprint matching, making it ideal for identification and authentication purposes. The module is widely used in security systems, access control, time attendance systems, and other applications requiring biometric verification.
This circuit is a biometric attendance system that uses an ESP8266 NodeMCU to interface with an AS608 fingerprint sensor and a 0.96" OLED display. The system captures and verifies fingerprints, displays status messages on the OLED, and communicates with a remote server over WiFi to log attendance data.
Open Project in Cirkit Designer
This circuit integrates an Arduino Pro Mini with an R503 fingerprint sensor and a MAX 3232 module for serial communication. The Arduino controls the fingerprint sensor and communicates with external devices via the MAX 3232 module, enabling secure biometric authentication.
Open Project in Cirkit Designer
This circuit features an Arduino Mega 2560 microcontroller interfaced with a SIM800L GSM module, two fingerprint scanners, an I2C LCD display, an IR sensor, and a piezo buzzer. Power management is handled by a PowerBoost 1000 Basic Pad USB, a TP4056 charging module, and a Li-ion 18650 battery, with an option to use a Mini AC-DC 110V-230V to 5V 700mA module for direct power supply. The primary functionality appears to be a security system with GSM communication capabilities, biometric access control, and visual/audible feedback.
Open Project in Cirkit Designer
This circuit is designed for security and identification purposes, featuring an RFID-RC522 module for contactless communication and a fingerprint scanner for biometric authentication. It includes an LCD display for user interaction, a touch sensor for input, a buzzer for audio feedback, and a relay module for controlling external devices. The components are interfaced with a NANO Expansion board, which likely contains a microcontroller to coordinate the operations of the system.
Open Project in Cirkit DesignerThe AS608 Fingerprint Module is designed to deliver high performance in a small form factor. Below are its key technical details:
| Parameter | Specification |
|---|---|
| Manufacturer | Synochip |
| Part ID | AS608 |
| Operating Voltage | 3.6V to 6.0V |
| Operating Current | < 120mA (typical) |
| Fingerprint Capacity | 162 templates |
| Interface | UART (TTL) |
| Baud Rate | 9600 (default), adjustable up to 115200 |
| Image Resolution | 508 DPI |
| Working Environment | Temperature: -20°C to +50°C |
| Module Dimensions | 20mm x 55mm x 21.5mm |
The AS608 module has a 6-pin interface for communication and power. Below is the pinout description:
| Pin | Name | Description |
|---|---|---|
| 1 | VCC | Power supply (3.6V to 6.0V) |
| 2 | GND | Ground |
| 3 | TX | UART Transmit (connect to RX of host) |
| 4 | RX | UART Receive (connect to TX of host) |
| 5 | PS | Power Sleep Control (optional) |
| 6 | TOUT | Touch Output (optional, for wake-up) |
The AS608 Fingerprint Module is easy to integrate into microcontroller-based systems, such as Arduino, Raspberry Pi, or other embedded platforms. Below are the steps to use the module effectively:
Connect the AS608 module to your microcontroller as follows:
To use the AS608 with an Arduino UNO, you can use the Adafruit_Fingerprint library. Install the library via the Arduino IDE Library Manager.
Here is an example code snippet to enroll and verify fingerprints:
#include <Adafruit_Fingerprint.h>
#include <SoftwareSerial.h>
// Define the RX and TX pins for SoftwareSerial
SoftwareSerial mySerial(2, 3); // RX, TX
Adafruit_Fingerprint finger(&mySerial);
void setup() {
Serial.begin(9600); // Initialize Serial Monitor
while (!Serial); // Wait for Serial Monitor to open
Serial.println("AS608 Fingerprint Module Test");
// Initialize the fingerprint sensor
finger.begin(57600); // Default baud rate for AS608
if (finger.verifyPassword()) {
Serial.println("Fingerprint sensor detected!");
} else {
Serial.println("Fingerprint sensor not detected. Check connections.");
while (1); // Halt execution
}
}
void loop() {
Serial.println("Place your finger on the sensor...");
int result = finger.getImage();
if (result == FINGERPRINT_OK) {
Serial.println("Fingerprint image captured!");
// Additional processing can be added here
} else if (result == FINGERPRINT_NOFINGER) {
Serial.println("No finger detected.");
} else {
Serial.println("Error capturing fingerprint.");
}
delay(1000); // Wait before next attempt
}
Fingerprint sensor not detected:
Fingerprint not recognized:
Module not responding:
Q: Can the AS608 store multiple fingerprints?
A: Yes, the module can store up to 162 fingerprint templates.
Q: Can I adjust the UART baud rate?
A: Yes, the default baud rate is 9600, but it can be adjusted up to 115200.
Q: Is the module compatible with 3.3V logic?
A: Yes, the AS608 is compatible with both 3.3V and 5V logic levels.
Q: How do I clean the sensor?
A: Use a soft, lint-free cloth to gently clean the optical sensor. Avoid using abrasive materials.
By following this documentation, you can effectively integrate and use the AS608 Fingerprint Module in your projects.
