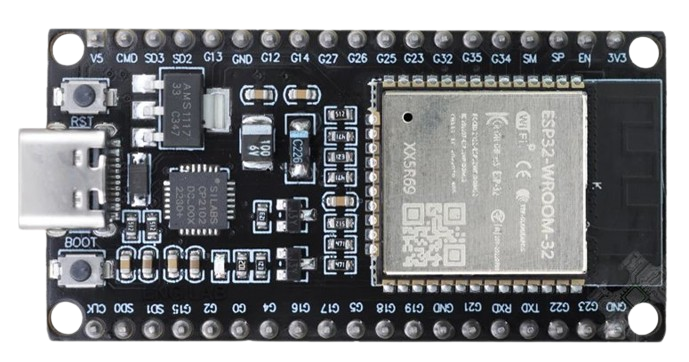

The ESP32 38P Type-C CP2102 is a versatile and powerful microcontroller module developed by Espressif Systems. It is based on the ESP32 dual-core processor, which integrates Wi-Fi and Bluetooth capabilities, making it ideal for IoT (Internet of Things) applications. This module features a USB Type-C interface for easy programming and power supply, as well as the CP2102 USB-to-UART bridge for seamless communication with a computer.
Explore Projects Built with esp32 38p typec cp2102
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features an ESP32 microcontroller powered by a 18650 Li-Ion battery, with a TP4056 module for charging the battery via a USB plug. The ESP32 reads temperature data from an MLX90614 infrared temperature sensor and displays it on an I2C LCD 16x2 screen. The ESP32, MLX90614 sensor, and LCD screen are connected via I2C communication lines (SCL, SDA), and the circuit is designed to measure and display ambient and object temperatures.
This circuit features an ESP32 Mini microcontroller as its core, interfaced with a 0.96" OLED display and a DS3231 Real-Time Clock (RTC) for timekeeping and display purposes. A TP4056 module is used for charging a LiPoly battery, which powers the system through an LM2596 voltage regulator and an AMS1117-3.3 voltage regulator to step down and stabilize the voltage for the ESP32 and peripherals. User inputs are captured through a rotary potentiometer and a red pushbutton, which are connected to the ESP32's GPIOs for control and reset functionality.
This circuit is a health monitoring system featuring an ESP32 microcontroller connected to a MAX30100 pulse oximetry and heart-rate sensor. Power management is handled by a 3.3V battery with a toggle switch for on/off control and a TP4056 charging module for battery charging. The ESP32 communicates with the MAX30100 sensor via I2C protocol.
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Prototyping and development of Wi-Fi/Bluetooth-enabled devices
Technical Specifications
The ESP32 38P Type-C CP2102 module is packed with features that make it suitable for a wide range of applications. Below are its key technical details:
Key Technical Details
Parameter
Specification
Microcontroller
ESP32 dual-core processor
Clock Speed
Up to 240 MHz
Flash Memory
4 MB (varies by model)
SRAM
520 KB
Wireless Connectivity
Wi-Fi 802.11 b/g/n, Bluetooth v4.2 + BLE
Operating Voltage
3.3V
Input Voltage (USB)
5V (via Type-C port)
GPIO Pins
38 pins
Communication Interfaces
UART, SPI, I2C, I2S, PWM, ADC, DAC
USB Interface
CP2102 USB-to-UART bridge
Dimensions
Approx. 51mm x 25mm
Pin Configuration and Descriptions
The ESP32 38P module has 38 pins, each with specific functions. Below is a table summarizing the pin configuration:
Pin Number
Pin Name
Function
1
EN
Enable pin (active high)
2
IO0
GPIO0, used for boot mode selection
3
IO1
GPIO1, UART TXD
4
IO3
GPIO3, UART RXD
5
IO4
GPIO4, general-purpose I/O
6
IO5
GPIO5, general-purpose I/O
...
...
...
37
3V3
3.3V power output
38
GND
Ground
Note: For the full pinout and detailed descriptions, refer to the official datasheet provided by Espressif Systems.
Usage Instructions
How to Use the ESP32 38P Type-C CP2102 in a Circuit
Powering the Module:
Connect the module to a computer or power source using a USB Type-C cable. The onboard CP2102 chip handles USB-to-UART communication.
Ensure the input voltage does not exceed 5V when powering via USB.
Programming the Module:
Install the necessary USB-to-UART driver for the CP2102 chip (available on the Espressif website).
Use the Arduino IDE or Espressif's ESP-IDF to write and upload code to the ESP32.
Select the correct board (e.g., "ESP32 Dev Module") and COM port in the Arduino IDE.
Connecting Peripherals:
Use the GPIO pins to connect sensors, actuators, or other peripherals.
Ensure proper voltage levels (3.3V logic) to avoid damaging the module.
Boot Mode Selection:
To enter programming mode, hold the "BOOT" button while pressing the "EN" (reset) button.
Important Considerations and Best Practices
Use level shifters if interfacing with 5V logic devices.
Avoid drawing excessive current from the 3.3V pin to prevent instability.
Ensure proper grounding to minimize noise and interference in high-frequency applications.
Use decoupling capacitors near power pins for stable operation.
Example Code for Arduino UNO Integration
Below is an example of how to use the ESP32 with the Arduino IDE to blink an LED connected to GPIO2:
// Blink an LED connected to GPIO2 on the ESP32 module
// Define the GPIO pin for the LED
#define LED_PIN 2
void setup() {
// Set the LED pin as an output
pinMode(LED_PIN, OUTPUT);
}
void loop() {
// Turn the LED on
digitalWrite(LED_PIN, HIGH);
delay(1000); // Wait for 1 second
// Turn the LED off
digitalWrite(LED_PIN, LOW);
delay(1000); // Wait for 1 second
}
Tip: Ensure the LED is connected to GPIO2 with a current-limiting resistor (e.g., 220Ω) to prevent damage.
Troubleshooting and FAQs
Common Issues and Solutions
ESP32 Not Detected by Computer:
Ensure the CP2102 driver is installed correctly.
Try a different USB cable or port.
Upload Fails in Arduino IDE:
Check the selected COM port and board type.
Hold the "BOOT" button while uploading to enter programming mode.
Wi-Fi Connection Issues:
Verify the SSID and password in your code.
Ensure the router is within range and supports 2.4 GHz Wi-Fi.
Module Overheating:
Avoid drawing excessive current from the GPIO pins.
Ensure proper ventilation and heat dissipation.
FAQs
Q: Can the ESP32 38P Type-C CP2102 be powered by an external 3.3V source?
A: Yes, you can power the module via the 3V3 pin, but ensure the voltage is stable and within the 3.3V range.
Q: Does the module support OTA (Over-the-Air) updates?
A: Yes, the ESP32 supports OTA updates, which can be implemented using the Arduino IDE or ESP-IDF.
Q: Can I use the ESP32 with 5V peripherals?
A: The ESP32 operates at 3.3V logic levels. Use level shifters to interface with 5V peripherals safely.
Q: What is the maximum Wi-Fi range of the ESP32?
A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.
For additional support, refer to the official Espressif documentation or community forums.
